Wastewater/Activity/PacpInspection/1.0Oct 13, 2016, 07:15 AM
05 0714_05 0713_13102016_001547.mp4
- Date
- 10/13/2016
- W/O
- 591783
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00521
- PipeID
- P05937
- Time
- 12:15 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3603
- Sewer Name
- 05 SOUTH INGLEWOOD-ORANGE AVENUE TRUNK, EXTENSION #1
- City
- INGLEWOOD
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 07
- Purpose
- Routine Assessment
- Project
- WO_591783_TV05308_SEP2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Width
- 8 in.
- Upstream MH
- 05 0714
- Downstream MH
- 05 0713
- Dir. of Survey
- Downstream
- Length Surveyed
- 359.9 ft.
- Total Length
- 359.9 ft.
- Structural Index
- 3
- Structural Quick
- 3200
- Structural Rating
- 6
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (2)

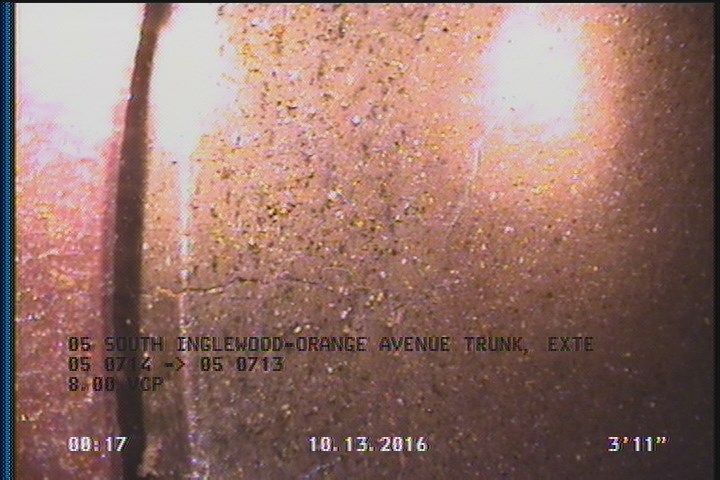

3.9 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

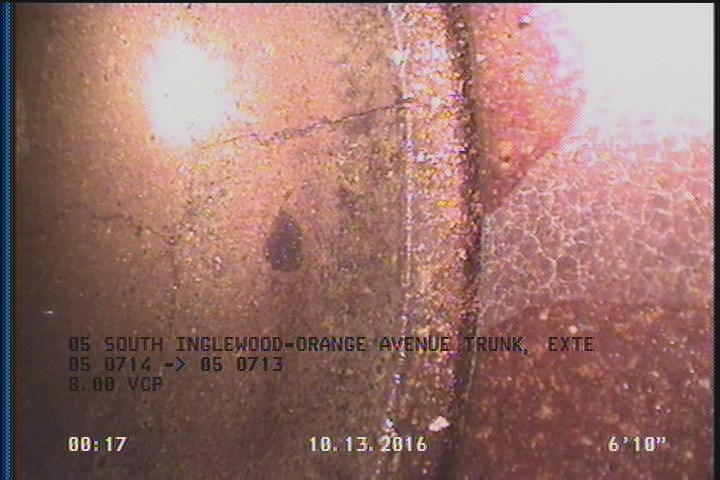

6.9 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 357.7 | CM | — |
| 0 | MWL | — |
| 0 | MWM | — |
| 6.9 | CM | — |
| 359.9 | MGO | LATERAL AT MH 3 O'CLOCK |
| 3.9 | CM | — |
| 359.9 | AMH | 05 0713 |
| 0 | AMH | 05 0714 |
Properties (6)
- additional_info
- SC306198
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-10-13T00:15:07-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
