Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 13, 2016, 08:18 AM

  • 05 0717_05 0716_13102016_011937.mp4

Date
10/13/2016
W/O
591783
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00521
PipeID
P05940
Time
1:18 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3603
Sewer Name
05 SOUTH INGLEWOOD-ORANGE AVENUE TRUNK, EXTENSION #1
City
INGLEWOOD
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
07
Purpose
Routine Assessment
Project
WO_591783_TV05308_SEP2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
05 0717
Downstream MH
05 0716
Dir. of Survey
Downstream
Length Surveyed
314 ft.
Total Length
314 ft.
Structural Index
3
Structural Quick
413K
Structural Rating
184
O&M Index
1
O&M Quick
311J
O&M Rating
57
Overall Index
2
Overall Quick
—
Overall Rating
241
Pipe schematic from manhole 05 0717 to 05 0716
MH: 05 0717MH: 05 0716downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 05 07170 ft. MWM - Water Mark, 20 %of cross sectional area3.5 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR, Start3.5 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES13.6 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start153.8 ft. B - Broken, from 03 to 04 o'clock, within 8 inches of joint: YES171.5 ft. RMC - Roots Medium Connection, from 02 to 04 o'clock, 10 %, within 8 inches of joint: YES171.5 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6"271.5 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR, Finish307.6 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish314 ft. AMH - Downstream Manhole, Survey Ends - 05 0716314 ft. MGO - General Observation - LATERAL AT MH 3 O'CLOCK CAPPED

Observation photos (5)

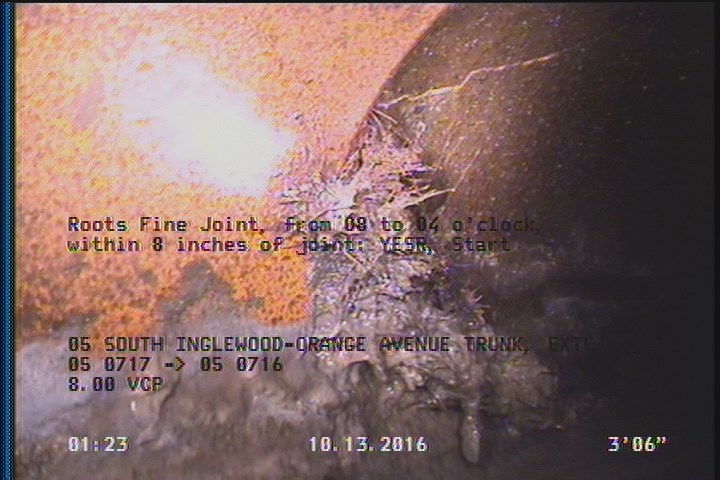

  • Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR, Start

    3.5 ft. - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR, Start

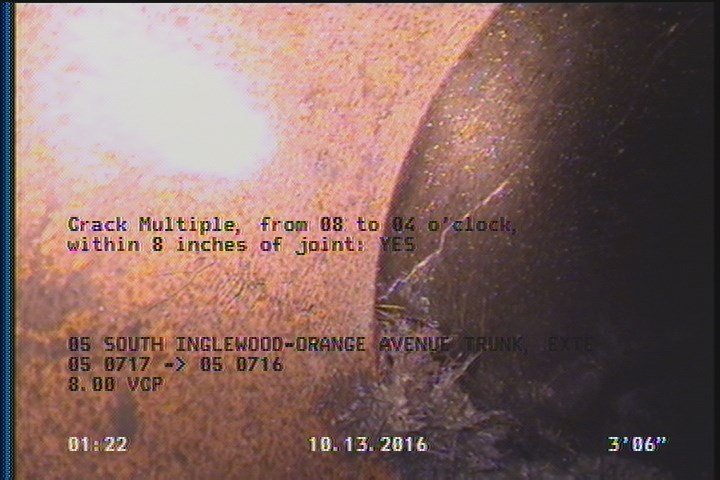

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    3.5 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

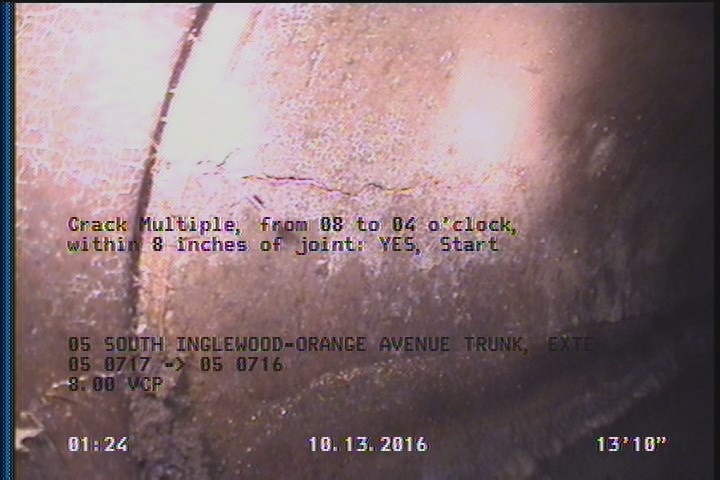

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    13.6 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

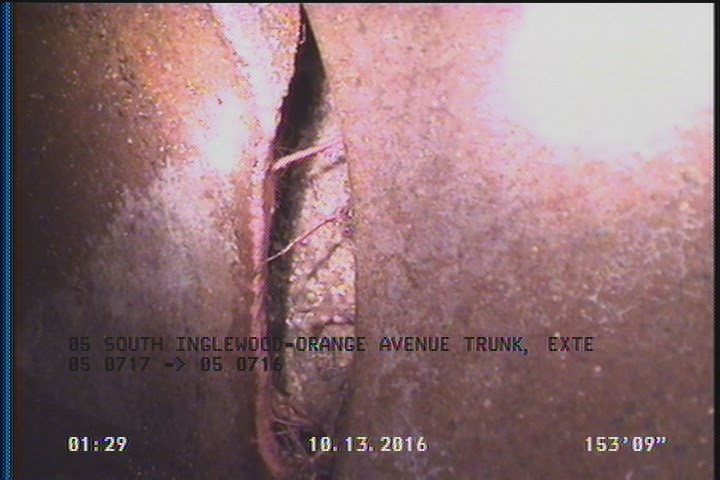

  • Broken, from 03 to 04 o'clock, within 8 inches of joint: YES

    153.8 ft. - Broken, from 03 to 04 o'clock, within 8 inches of joint: YES

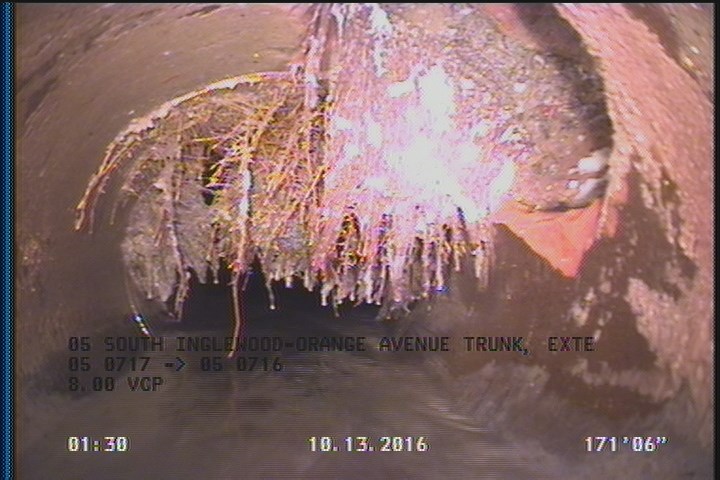

  • Roots Medium Connection, from 02 to 04 o'clock, 10 %, within 8 inches of joint: YES

    171.5 ft. - Roots Medium Connection, from 02 to 04 o'clock, 10 %, within 8 inches of joint: YES

All inspections of P05940Work order 591783

Observations (13)

DistanceCodeObservation
171.5RMC—
0MWL—
171.5TB—
3.5RFJ—
314AMH05 0716
271.5RFJ—
0AMH05 0717
0MWM—
13.6CM—
314MGOLATERAL AT MH 3 O'CLOCK CAPPED
3.5CM—
307.6CM—
153.8B—

Properties (6)

additional_info
SC306198
custom_field_two
2
customer
LACSD
datetime
2016-10-13T01:18:34-07:00
documentation
PROPIPE
is_lateral_inspection
false
