Wastewater/Activity/PacpInspection/1.0Oct 13, 2016, 09:48 AM
05 0750_05 2209 _13102016_024842.mp4
- Date
- 10/13/2016
- W/O
- 591783
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00521
- PipeID
- P05975
- Time
- 2:48 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3603
- Sewer Name
- 05 SOUTH INGLEWOOD-ORANGE AVENUE TRUNK, EXTENSION #1
- City
- INGLEWOOD
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 07
- Purpose
- Routine Assessment
- Project
- WO_591783_TV05308_SEP2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 10 in.
- Width
- 10 in.
- Upstream MH
- 05 0750
- Downstream MH
- 05 2209
- Dir. of Survey
- Downstream
- Length Surveyed
- 154.1 ft.
- Total Length
- 154.1 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 3
- O&M Quick
- 3100
- O&M Rating
- 3
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (2)

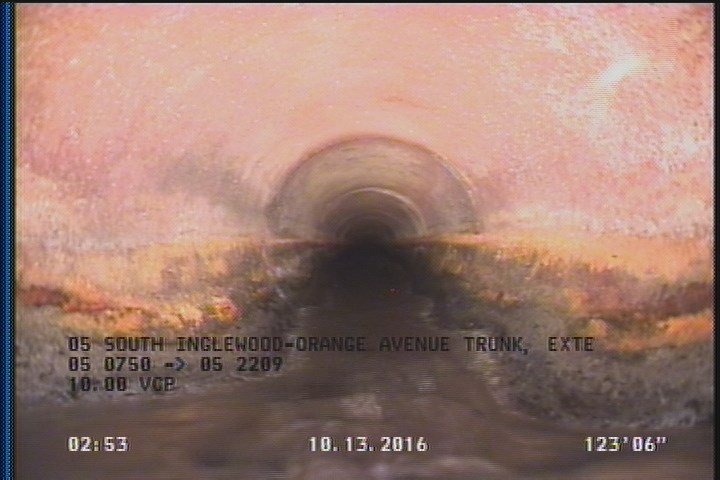

123.5 ft. - Water Level, Sag in pipe, 10 %of cross sectional area

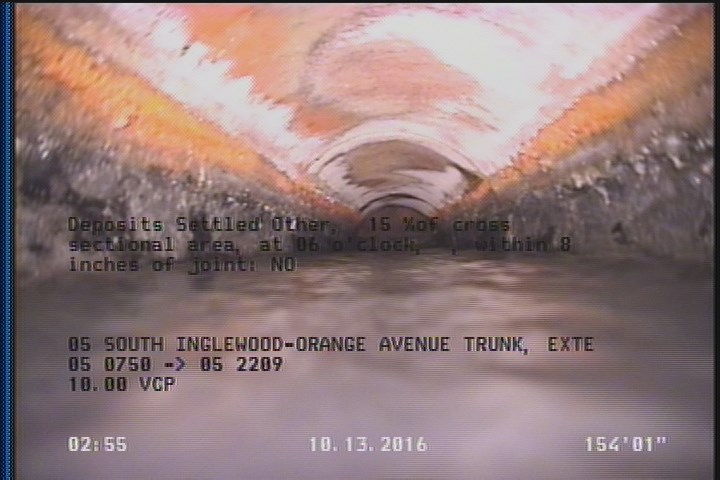

154.1 ft. - Deposits Settled Other, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: NO
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 154.1 | DSZ | — |
| 0 | MWL | — |
| 154.1 | AMH | 05 2209 ZOOMED IN |
| 123.5 | MWLS | — |
| 0 | AMH | 05 0750 |
Properties (6)
- additional_info
- SC306198
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-10-13T02:48:12-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
