Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 13, 2016, 07:45 AM

  • 05 0715_05 0714_12102016_235742.mp4

Date
10/13/2016
W/O
591783
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00521
PipeID
P05938
Time
12:45 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3603
Sewer Name
05 SOUTH INGLEWOOD-ORANGE AVENUE TRUNK, EXTENSION #1
City
INGLEWOOD
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
07
Purpose
Routine Assessment
Project
WO_591783_TV05308_SEP2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
05 0715
Downstream MH
05 0714
Dir. of Survey
Downstream
Length Surveyed
360.6 ft.
Total Length
360.6 ft.
Structural Index
3
Structural Quick
3400
Structural Rating
12
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
12
Pipe schematic from manhole 05 0715 to 05 0714
MH: 05 0715MH: 05 0714downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 05 07150 ft. MWM - Water Mark, 20 %of cross sectional area3.7 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES5 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start267.3 ft. FL - Fracture Longitudinal, at 04 o'clock, within 8 inches of joint: YES346.5 ft. FS - Fracture Spiral, from 01 to 04 o'clock, within 8 inches of joint: YES355.7 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish360.6 ft. AMH - Downstream Manhole, Survey Ends - 05 0714

Observation photos (5)

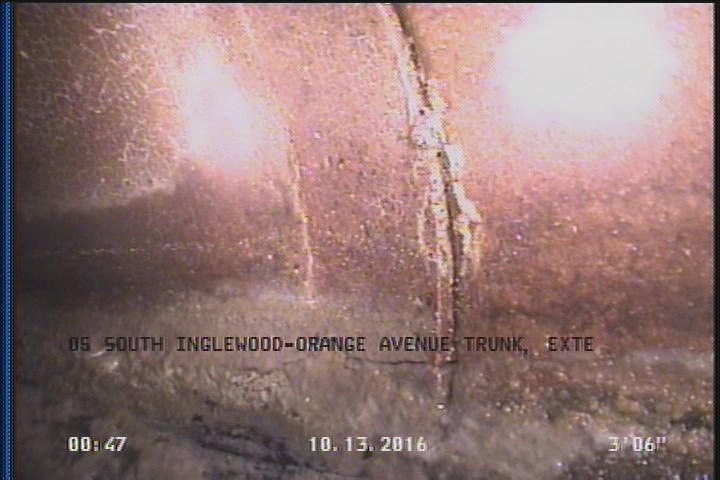

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    3.7 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

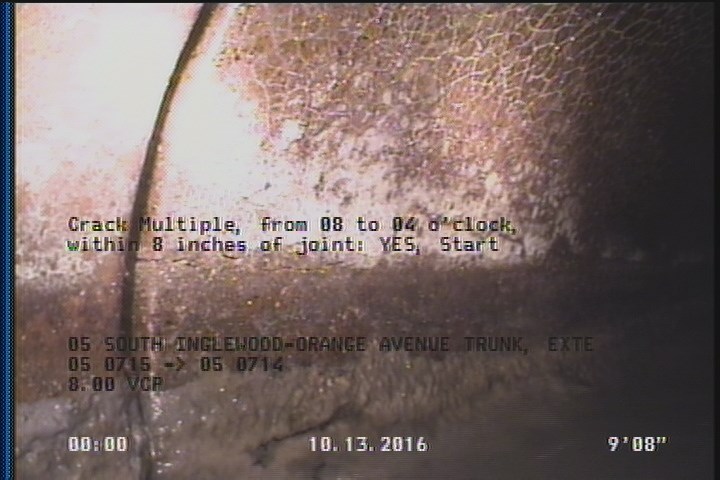

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    5 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

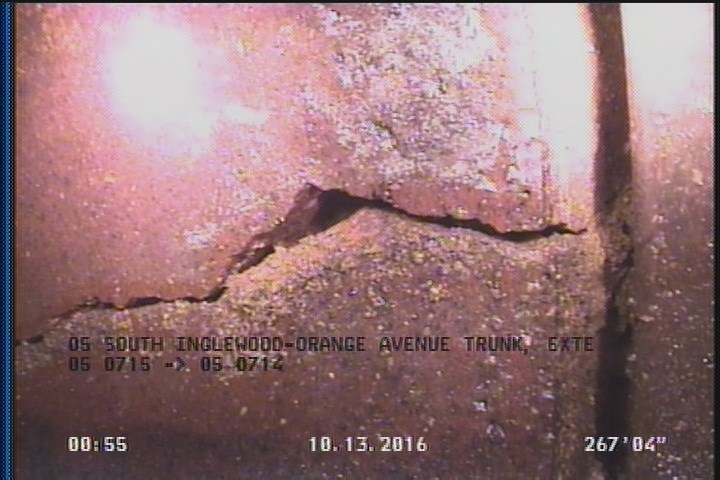

  • Fracture Longitudinal, at 04 o'clock, within 8 inches of joint: YES

    267.3 ft. - Fracture Longitudinal, at 04 o'clock, within 8 inches of joint: YES

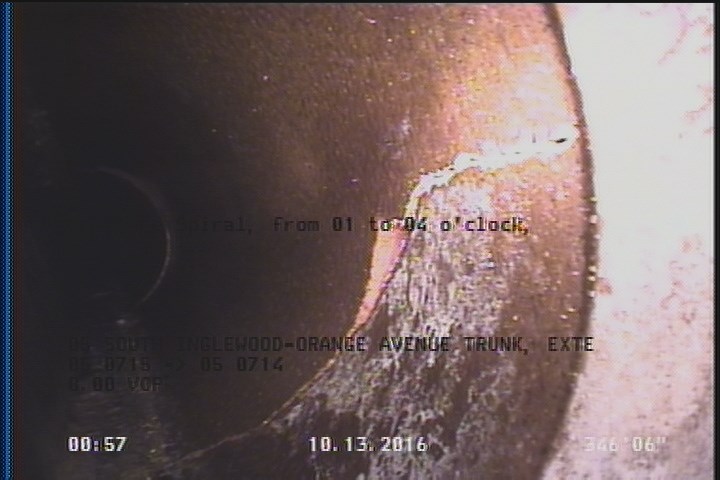

  • Fracture Spiral, from 01 to 04 o'clock, within 8 inches of joint: YES

    346.5 ft. - Fracture Spiral, from 01 to 04 o'clock, within 8 inches of joint: YES

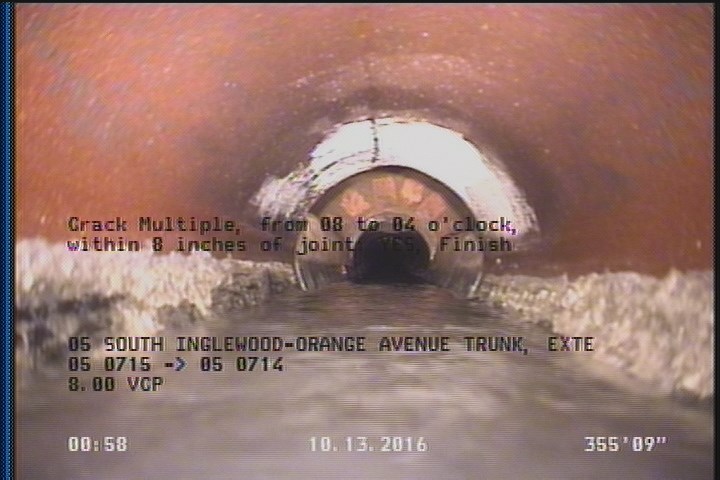

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

    355.7 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

All inspections of P05938Work order 591783

Observations (9)

DistanceCodeObservation
0MWL—
0AMH05 0715
5CM—
3.7CM—
346.5FS—
355.7CM—
0MWM—
360.6AMH05 0714
267.3FL—

Properties (6)

additional_info
SC306198
custom_field_two
3
customer
LACSD
datetime
2016-10-13T00:45:32-07:00
documentation
PROPIPE
is_lateral_inspection
false
