Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 20, 2016, 09:11 AM

  • 05 1100_05 1099_20102016_021110.mp4

Date
10/20/2016
W/O
591782
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00488
PipeID
P06334
Time
2:11 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3811
Sewer Name
05 MONETA EXTENSION TRUNK, SECTION 1
City
GARDENA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
17
Purpose
Routine Assessment
Project
WO_591782_TV05306_SEP2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
05 1100
Downstream MH
05 1099
Dir. of Survey
Downstream
Length Surveyed
192.3 ft.
Total Length
192.3 ft.
Structural Index
2
Structural Quick
3321
Structural Rating
12
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
12
Pipe schematic from manhole 05 1100 to 05 1099
MH: 05 1100MH: 05 1099downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 05 11000 ft. MGO - General Observation - LATERAL AT MH 5 OCLOCK10.9 ft. CM - Crack Multiple, from 07 to 11 o'clock, within 8 inches of joint: YES24 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"33.8 ft. CC - Crack Circumferential, from 01 to 02 o'clock, within 8 inches of joint: YES82 ft. CM - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES98 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES114.4 ft. CL - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES123.5 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"192.3 ft. AMH - Downstream Manhole, Survey Ends - 05 1099192.3 ft. MGO - General Observation - LATERAL AT MH 3 OCLOCK

Observation photos (5)

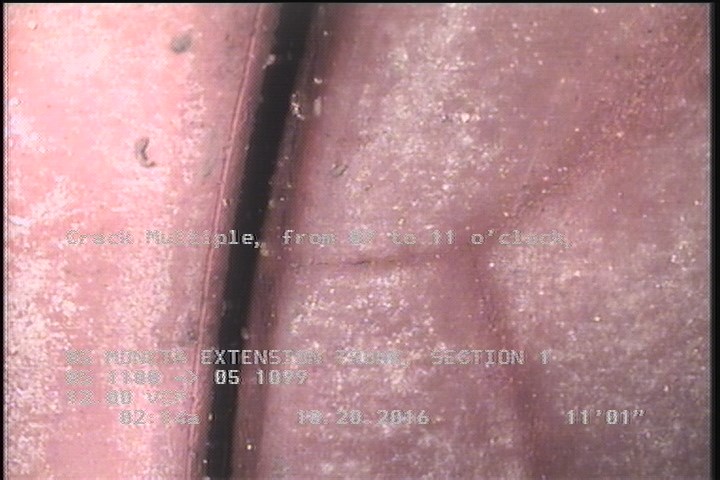

  • Crack Multiple, from 07 to 11 o'clock, within 8 inches of joint: YES

    10.9 ft. - Crack Multiple, from 07 to 11 o'clock, within 8 inches of joint: YES

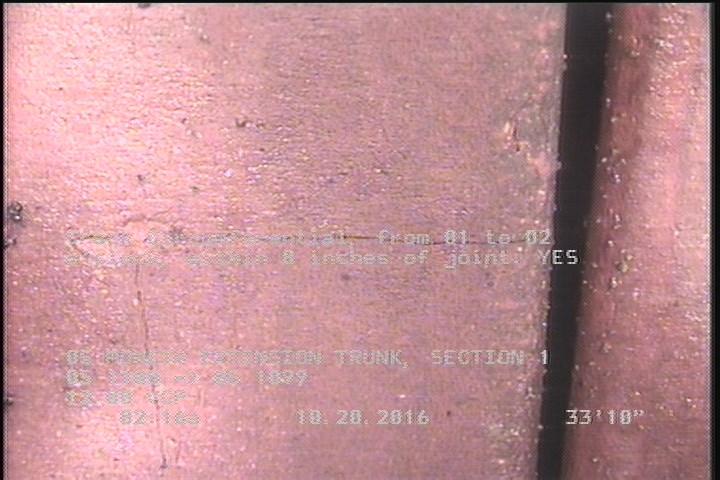

  • Crack Circumferential, from 01 to 02 o'clock, within 8 inches of joint: YES

    33.8 ft. - Crack Circumferential, from 01 to 02 o'clock, within 8 inches of joint: YES

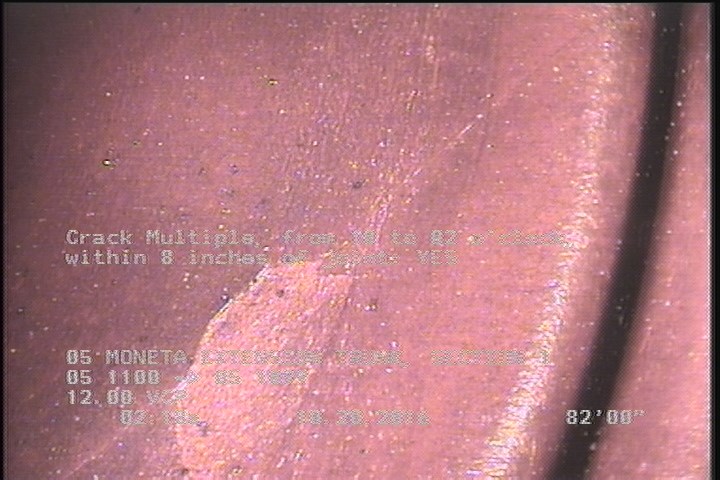

  • Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

    82 ft. - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

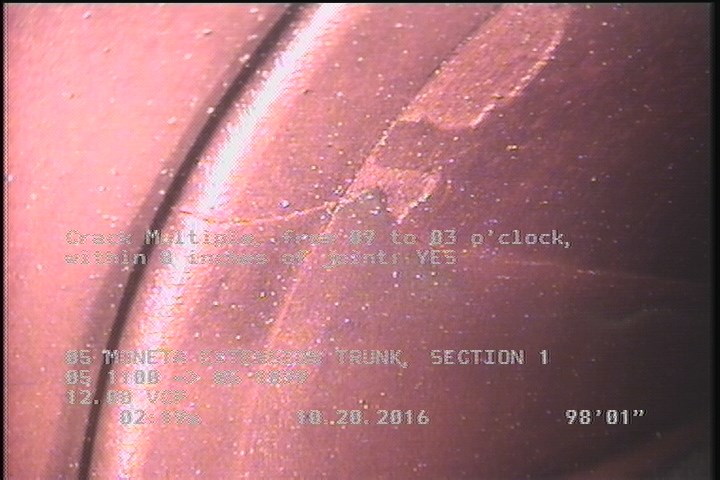

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    98 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

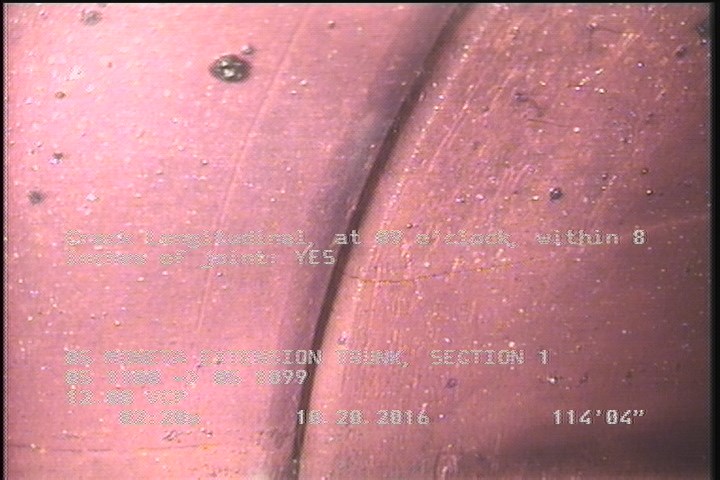

  • Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES

    114.4 ft. - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES

All inspections of P06334Work order 591782

Observations (13)

DistanceCodeObservation
33.8CC—
192.3AMH05 1099
0MWL—
123.5TFC—
10.9CM—
82CM—
0MWM—
192.3MGOLATERAL AT MH 3 OCLOCK
0AMH05 1100
114.4CL—
0MGOLATERAL AT MH 5 OCLOCK
98CM—
24TFC—

Properties (6)

additional_info
SC304556
custom_field_two
3
customer
LACSD
datetime
2016-10-20T02:11:02-07:00
documentation
PROPIPE
is_lateral_inspection
false
