Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 21, 2016, 05:07 PM

  • 08 0474_08 0596_20160121_091159.mp4

Date
01/21/2016
W/O
531045
Weather
Dry
Operator/Surveyor
N.ZAHREDDINE
Sewer ID
Z00025
PipeID
P00531
Time
9:07 AM
Certificate
U-109-7948
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3163
Sewer Name
08 216TH STREET RELOCATION TRUNK
City
CARSON
Loc. details
Parking Lot
Location Code
G
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
13
Purpose
Routine Assessment
Project
RFIR_WO_531045_TV08101_OCT2015
Sewer Type
GRAVITY
Material
Reinforced Concrete Pipe
Shape
Circular
Height
48 in.
Upstream MH
08 0474
Downstream MH
08 0596
Dir. of Survey
Downstream
Length Surveyed
871.1 ft.
Total Length
871.1 ft.
Structural Index
5
Structural Quick
5100
Structural Rating
5
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
5
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole 08 0474 to 08 0596
MH: 08 0474MH: 08 0596downstream0 ft. MWL - Water Level, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 08 04740 ft. MWM - Water Mark, 40 %of cross sectional area2 ft. MGO - General Observation - MAGNEZIUM H.O COATING 30 % START8.7 ft. SRC - Surface Reinforcement Corroded, from 09 to 03 o'clock, within 8 inches of joint: YES, Start67.1 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"179.5 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"381.6 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"652.7 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"691.2 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"867.9 ft. SRC - Surface Reinforcement Corroded, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish871.1 ft. AMH - Downstream Manhole, Survey Ends - 08 0596871.1 ft. MGO - General Observation - MAGNEZIUM H.O COATING 30% FINISH

Observation photos (1)

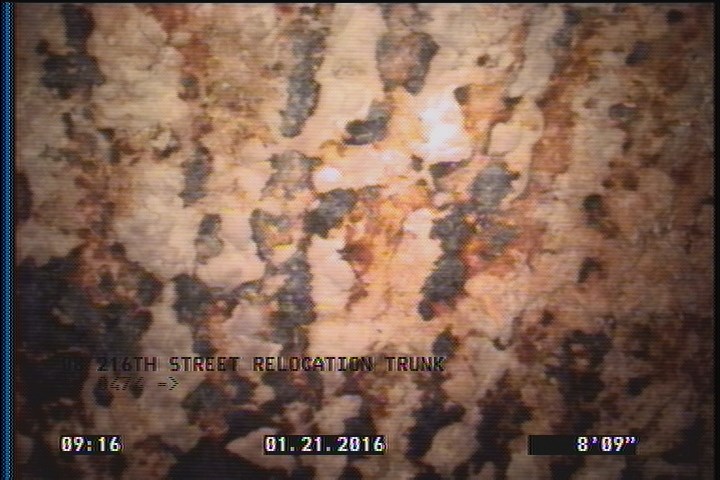

  • Surface Reinforcement Corroded, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    8.7 ft. - Surface Reinforcement Corroded, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P00531Work order 531045

Observations (13)

DistanceCodeObservation
179.5TFA—
0MWL—
8.7SRC—
0AMH08 0474
381.6TFA—
2MGOMAGNEZIUM H.O COATING 30 % START
871.1AMH08 0596
867.9SRC—
652.7TFA—
0MWM—
691.2TFA—
67.1TFA—
871.1MGOMAGNEZIUM H.O COATING 30% FINISH

Properties (6)

additional_info
SC224975
custom_field_two
2
customer
LACSD
datetime
2016-01-21T09:07:55-08:00
documentation
PRO PIPE
is_lateral_inspection
false
