Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 14, 2018, 07:32 AM

  • Section#2_08 2089_08 1898__4142018__G6985.mp4

Date
04/14/2018
W/O
0695755
Weather
Dry
Operator/Surveyor
REVELES
Sewer ID
Z00247
PipeID
P04405
Time
12:32 AM
Certificate
U-115-06022630
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6985
Sewer Name
02 DOUGLAS AVENUE RELIEF TRUNK
City
East Los Angeles
Loc. details
Building
Location Code
J
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
08
Purpose
Capital Improvement Program Assesment
Project
04122018VMR_DOUGLAS_AVENUE_RELIEF_TRUK
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
02 2089
Downstream MH
02 1898
Dir. of Survey
Downstream
Length Surveyed
244.3 ft.
Total Length
244.3 ft.
Structural Index
1
Structural Quick
2314
Structural Rating
10
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
1
Overall Quick
—
Overall Rating
10
Pipe schematic from manhole 02 2089 to 02 1898
MH: 02 2089MH: 02 1898downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01:23 am0.8 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: NO, 4" - ACTIVE14.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4" - STUB16.8 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: YES, 4" - ACTIVE40.8 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES51 ft. JOM - Joint Offset Medium, 1"62.8 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: YES, 4" - OPEN71.6 ft. CC - Crack Circumferential, from 11 to 12 o'clock, within 8 inches of joint: YES71.6 ft. CC - Crack Circumferential, from 01 to 02 o'clock, within 8 inches of joint: YES105.2 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: YES, 4" - OPEN134.6 ft. MWLS - Water Level, Sag in pipe, 30 %of cross sectional area, Start138.9 ft. MWLS - Water Level, Sag in pipe, 30 %of cross sectional area, Finish142.9 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: YES, 4" - ACTIVE206.4 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: YES, 4" - ACTIVE241.2 ft. CC - Crack Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES244.3 ft. AMH - Downstream Manhole, Survey Begins - 1:56 am

Observation photos (1)

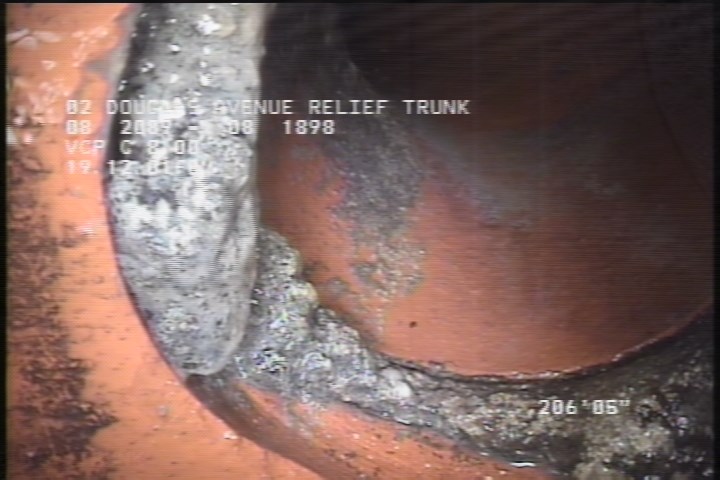

  • Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: YES, 4" - ACTIVE

    206.4 ft. - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: YES, 4" - ACTIVE

All inspections of P04405Work order 0695755

Observations (18)

DistanceCodeObservation
62.8TFOPEN
16.8TFAACTIVE
241.2CC—
71.6CC—
51JOM—
206.4TFAACTIVE
244.3AMH1:56 am
71.6CC—
0MWM—
40.8CL—
0MWL—
0.8TFAACTIVE
134.6MWLS—
142.9TFAACTIVE
138.9MWLS—
0AMH01:23 am
14.2TFCSTUB
105.2TFOPEN

Properties (5)

custom_field_two
3
customer
LACSD
datetime
2018-04-14T00:32:37-07:00
documentation
REVELES,OLIVER III
is_lateral_inspection
false
