Wastewater/Activity/PacpInspection/1.0Jul 21, 2016, 07:47 AM
02 0871_02 0784_20160721_015545.mp4
- Date
- 07/21/2016
- W/O
- 574316
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00294
- PipeID
- P03345
- Time
- 12:47 AM
- Certificate
- U-507-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3659
- Sewer Name
- 02 OLD RIVER SCHOOL ROAD TRUNK, SECTS 1&2
- City
- DOWNEY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 24
- Purpose
- Routine Assessment
- Project
- WO_574316_TV02111_JUNE2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 02 0784
- Downstream MH
- 02 0871
- Dir. of Survey
- Upstream
- Length Surveyed
- 248.9 ft.
- Total Length
- 248.9 ft.
- Structural Index
- 2
- Structural Quick
- 3122
- Structural Rating
- 7
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (4)

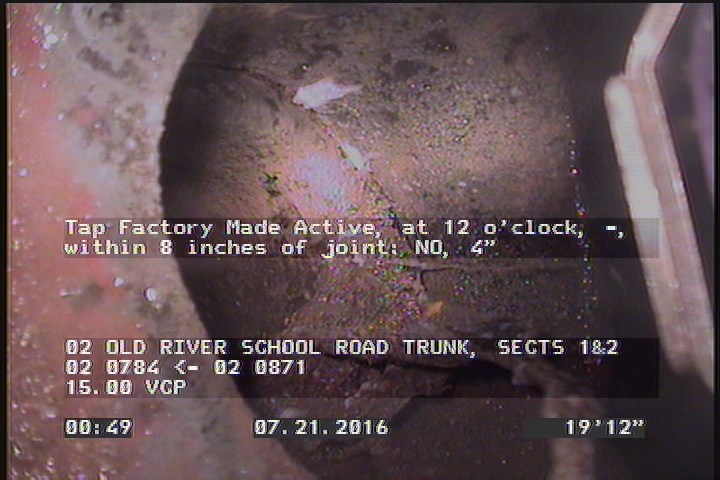

20 ft. - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 4"

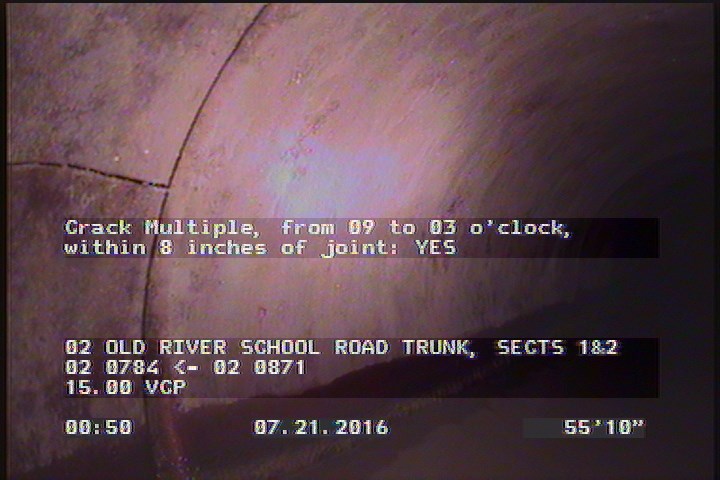

55.8 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

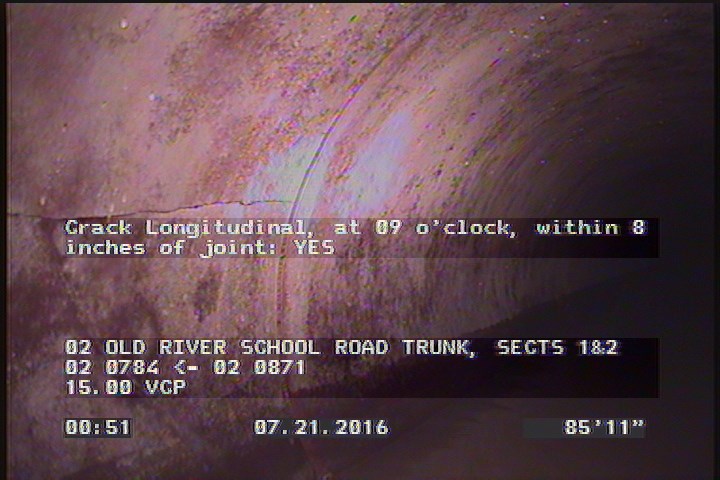

85.9 ft. - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES

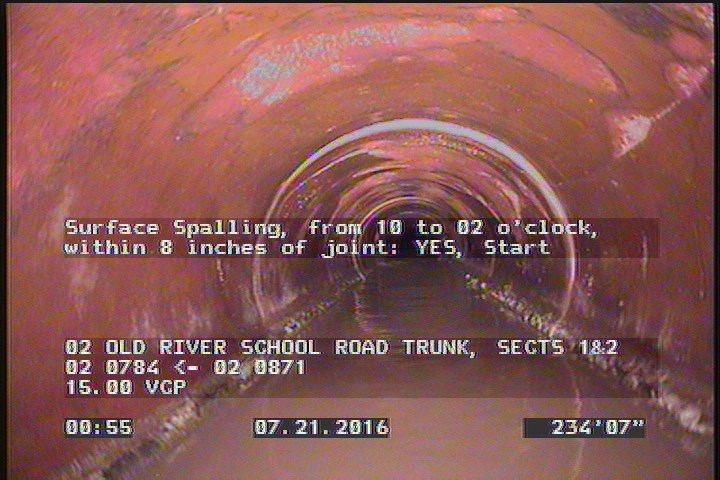

234.6 ft. - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES, Start
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 122.6 | TFA | — |
| 68 | TFA | — |
| 248.9 | AMH | 02 0871 |
| 0 | AMH | 02 0784 |
| 234.6 | SSS | — |
| 247.4 | SSS | — |
| 85.9 | CL | — |
| 201 | TFA | — |
| 55.8 | CM | — |
| 20 | TFA | — |
| 0 | MWL | — |
Properties (6)
- additional_info
- SC305538
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-07-21T00:47:00-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
