Wastewater/Activity/PacpInspection/1.0Jul 20, 2016, 10:26 AM
02 0791_02 0790_20160720_043423.mp4
- Date
- 07/20/2016
- W/O
- 574316
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00294
- PipeID
- P03355
- Time
- 3:26 AM
- Certificate
- U-507-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3658
- Sewer Name
- 02 OLD RIVER SCHOOL ROAD TRUNK, SECTS 1&2
- City
- DOWNEY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 24
- Purpose
- Routine Assessment
- Project
- WO_574316_TV02111_JUNE2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 02 0791
- Downstream MH
- 02 0790
- Dir. of Survey
- Downstream
- Length Surveyed
- 111.8 ft.
- Total Length
- 111.8 ft.
- Structural Index
- 3
- Structural Quick
- 3321
- Structural Rating
- 11
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 13
Observation photos (4)

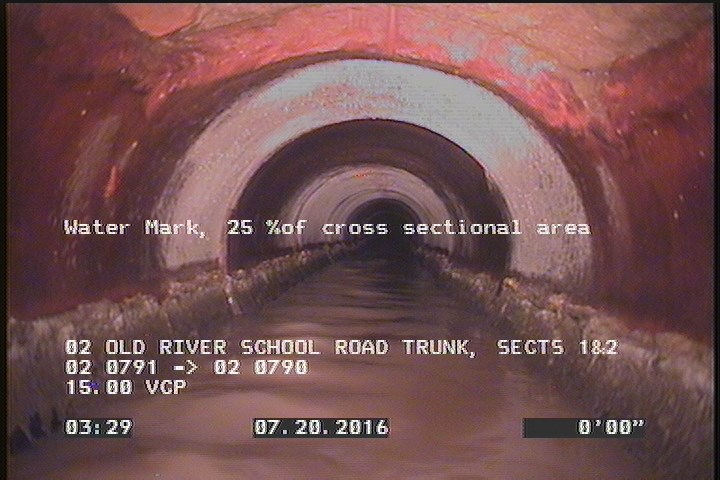

0 ft. - Water Mark, 25 %of cross sectional area

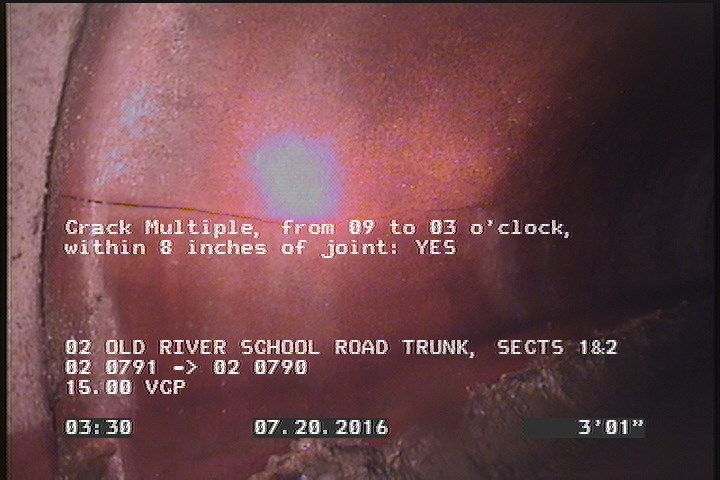

3.1 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

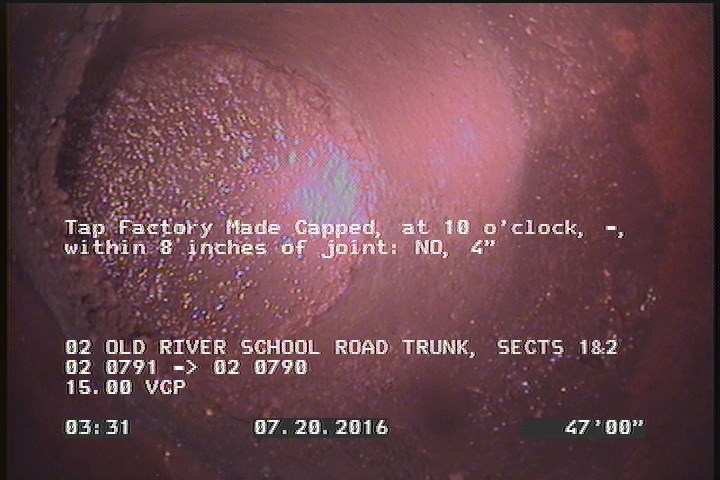

47 ft. - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"

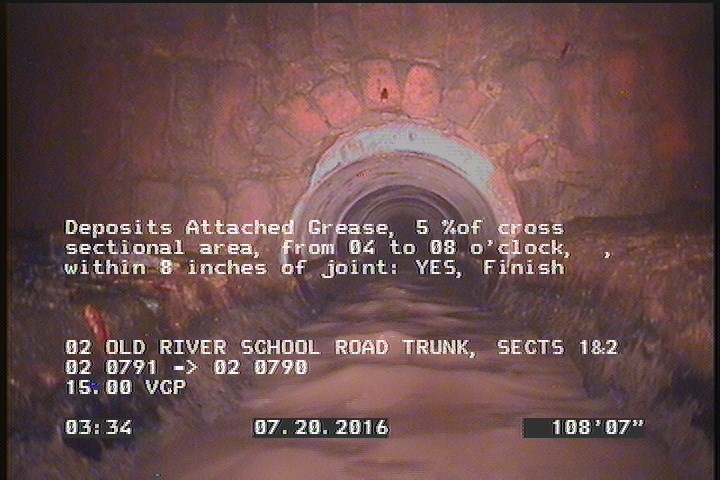

108.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 3.1 | DAGS | — |
| 0 | MWM | — |
| 108.5 | DAGS | — |
| 54.7 | CS | — |
| 111.8 | AMH | 02 0790 |
| 81.6 | CM | — |
| 0 | MWL | — |
| 47 | TFC | — |
| 98.5 | TFC | — |
| 95.6 | TFC | — |
| 0 | AMH | 02 0791 |
| 3.1 | CM | — |
| 50.2 | TFC | — |
| 99.3 | CM | — |
Properties (6)
- additional_info
- SC305537
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-07-20T03:26:24-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
