Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 19, 2016, 04:50 AM

  • 02 0756_02 0755_20160718_230108.mp4

Date
07/18/2016
W/O
574316
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00294
PipeID
P03314
Time
9:50 PM
Certificate
U-507-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3657
Sewer Name
02 OLD RIVER SCHOOL ROAD TRUNK, SECTS 1&2
City
DOWNEY
Loc. details
Other
Location Code
Z
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
26
Purpose
Routine Assessment
Project
WO_574316_TV02111_JUNE2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
02 0756
Downstream MH
02 0755
Dir. of Survey
Downstream
Length Surveyed
74.4 ft.
Total Length
74.4 ft.
Structural Index
2
Structural Quick
2200
Structural Rating
4
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
6
Pipe schematic from manhole 02 0756 to 02 0755
MH: 02 0756MH: 02 0755downstream0 ft. MWL - Water Level, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 02 07560 ft. MWM - Water Mark, 30 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start2 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: NO17.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"20.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"50.7 ft. SSS - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES, Start66 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"68.9 ft. SSS - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish68.9 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"72.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish74.4 ft. AMH - Downstream Manhole, Survey Ends - 02 075574.4 ft. MGO - General Observation - CONNECTION AT THE MH 9 O'CLOCK ACTIVE

Observation photos (5)

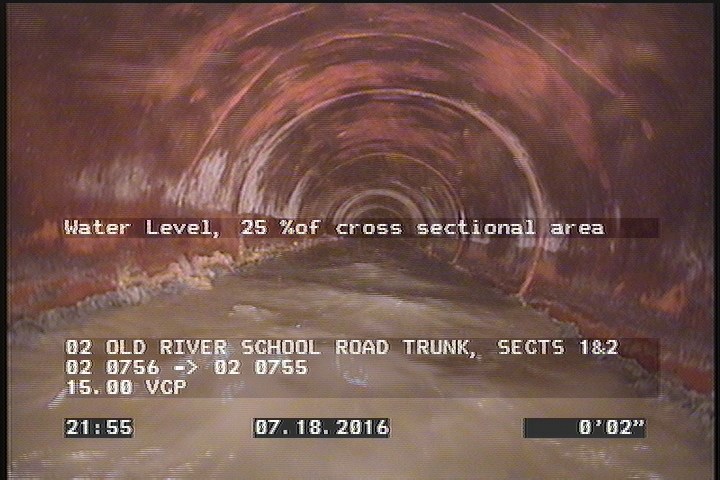

  • Water Level, 25 %of cross sectional area

    0 ft. - Water Level, 25 %of cross sectional area

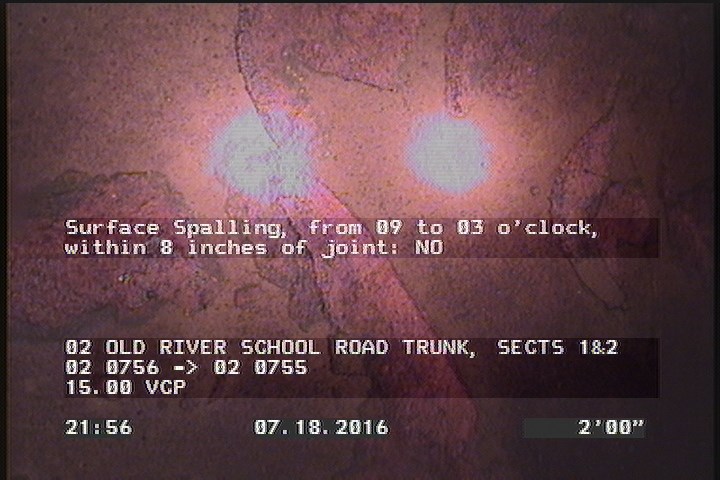

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

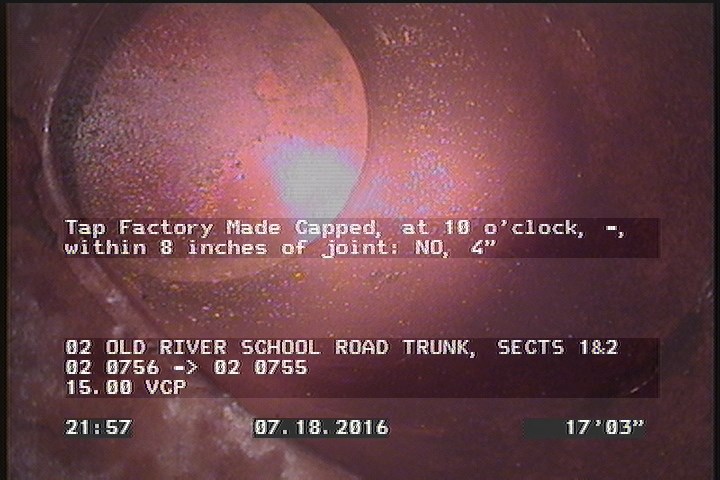

  • Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"

    17.3 ft. - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"

  • Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

    50.7 ft. - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

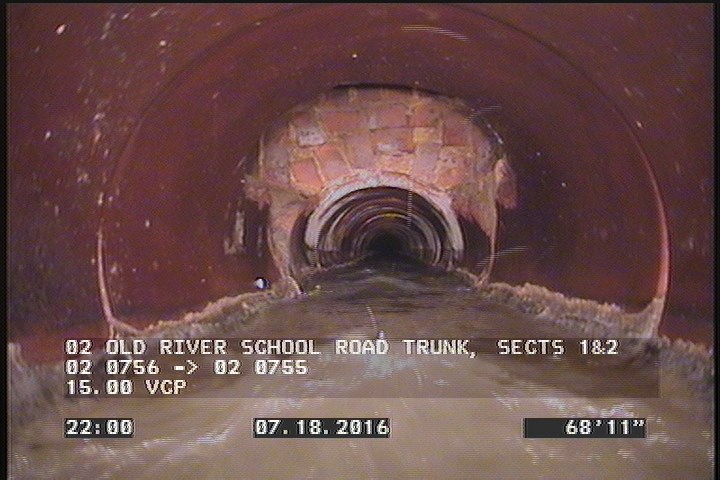

  • Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish

    68.9 ft. - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish

All inspections of P03314Work order 574316

Observations (14)

DistanceCodeObservation
17.3TFC—
74.4AMH02 0755
50.7SSS—
0MWL—
72.2DAGS—
20.3TFC—
0AMH02 0756
68.9SSS—
0MWM—
2DAGS—
2SSS—
74.4MGOCONNECTION AT THE MH 9 O'CLOCK ACTIVE
66TFC—
68.9TFA—

Properties (6)

additional_info
SC305536
custom_field_two
4
customer
LACSD
datetime
2016-07-18T21:50:38-07:00
documentation
PROPIPE
is_lateral_inspection
false
