Wastewater/Activity/PacpInspection/1.0Jul 18, 2016, 10:12 AM
02 0763_02 0762_20160718_042513.mp4
- Date
- 07/18/2016
- W/O
- 574316
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00294
- PipeID
- P03321
- Time
- 3:12 AM
- Certificate
- U-507-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3656
- Sewer Name
- 02 OLD RIVER SCHOOL ROAD TRUNK, SECTS 1&2
- City
- DOWNEY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 27
- Purpose
- Routine Assessment
- Project
- WO_574316_TV02111_JUNE2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 02 0762
- Downstream MH
- 02 0763
- Dir. of Survey
- Upstream
- Length Surveyed
- 193.2 ft.
- Total Length
- 193.2 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (3)

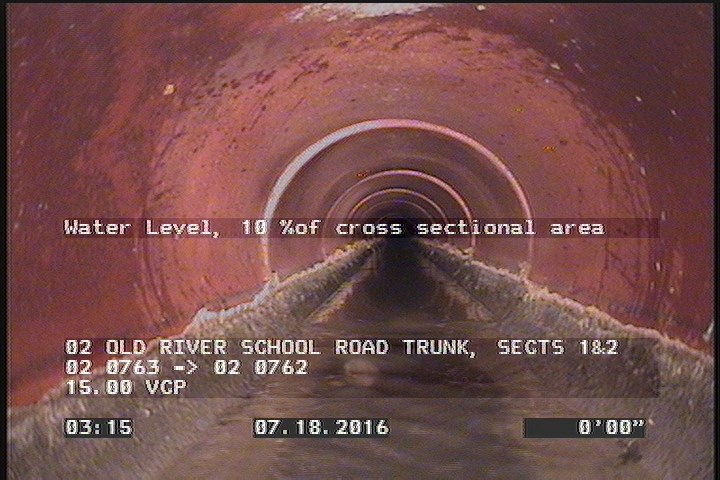

0 ft. - Water Level, 10 %of cross sectional area

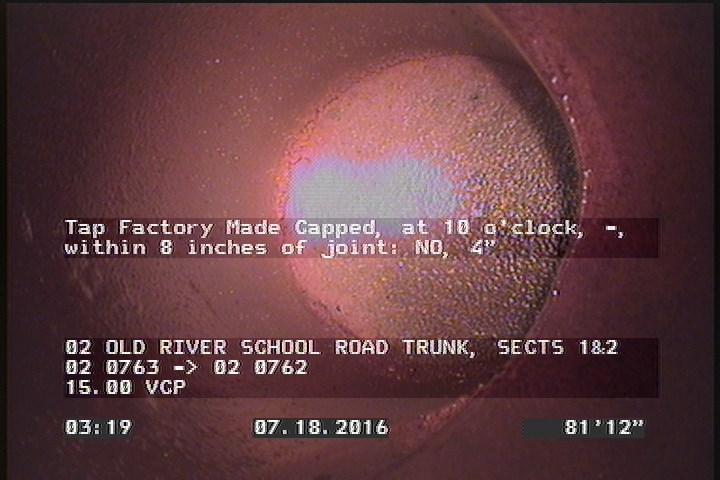

82 ft. - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"

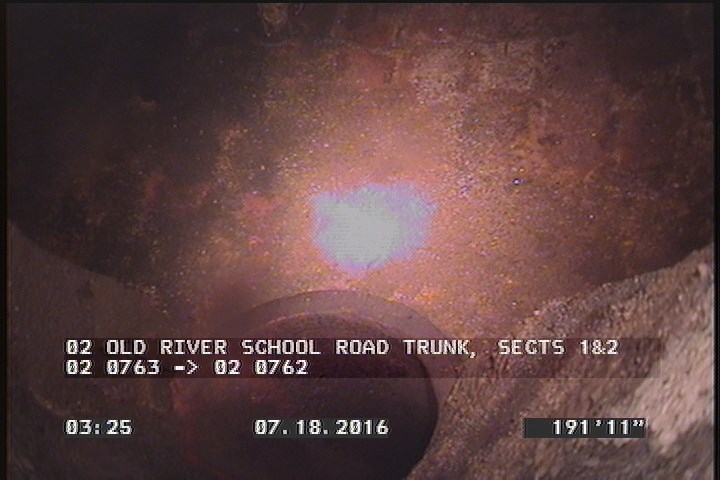

191.9 ft. - General Observation - CONNECTION AT THE MH 3 OC'LOCK
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 84.6 | TFC | — |
| 82 | TFC | — |
| 184.9 | TFC | — |
| 191.9 | DAGS | — |
| 2 | DAGS | — |
| 35.5 | TFC | — |
| 193.2 | AMH | 02 0763 |
| 133 | TFC | — |
| 136.4 | TFC | — |
| 32.5 | TFC | — |
| 0 | MWM | — |
| 191.9 | MGO | CONNECTION AT THE MH 3 OC'LOCK |
| 0 | MWL | — |
| 0 | AMH | 02 0762 |
Properties (6)
- additional_info
- SC305535
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-07-18T03:12:29-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
