Wastewater/Activity/PacpInspection/1.0Jul 19, 2016, 08:03 AM
02 0737_02 0736_20160719_020550.mp4
- Date
- 07/19/2016
- W/O
- 574316
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00294
- PipeID
- P03292
- Time
- 1:03 AM
- Certificate
- U-507-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3657
- Sewer Name
- 02 OLD RIVER SCHOOL ROAD TRUNK, SECTS 1&2
- City
- DOWNEY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 26
- Purpose
- Routine Assessment
- Project
- WO_574316_TV02111_JUNE2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 02 0737
- Downstream MH
- 02 0736
- Dir. of Survey
- Downstream
- Length Surveyed
- 45.6 ft.
- Total Length
- 45.6 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2111
- O&M Rating
- 3
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 3
Observation photos (4)

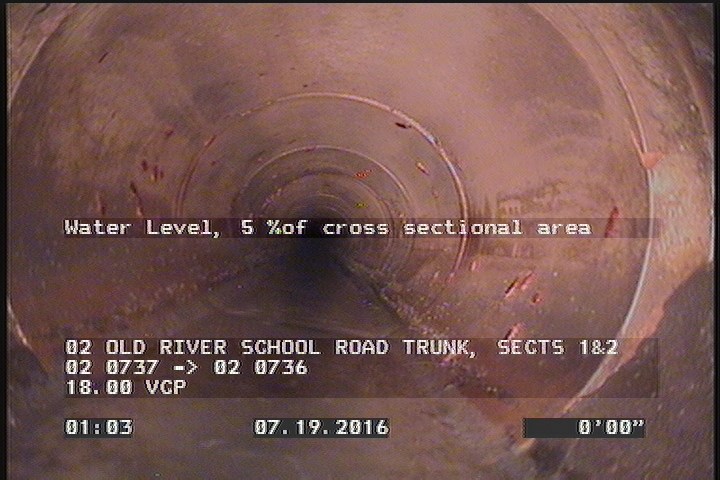

0 ft. - Water Level, 5 %of cross sectional area

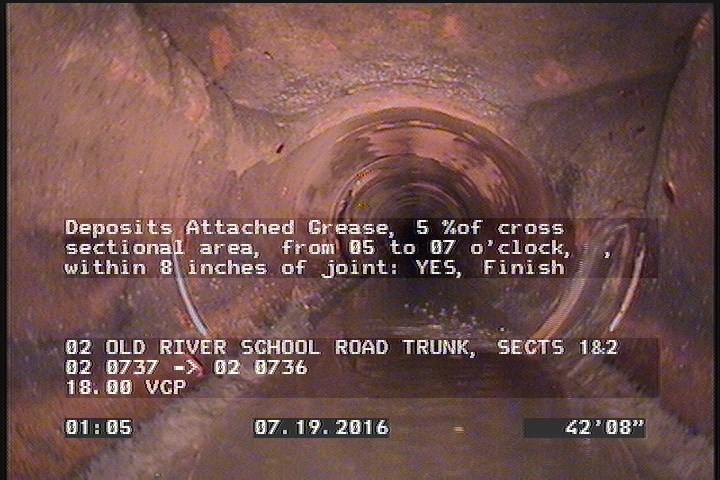

42.6 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish

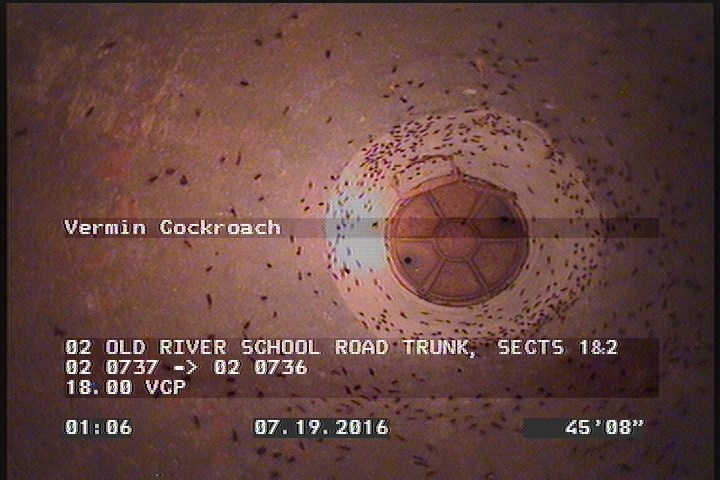

45.6 ft. - Vermin Cockroach

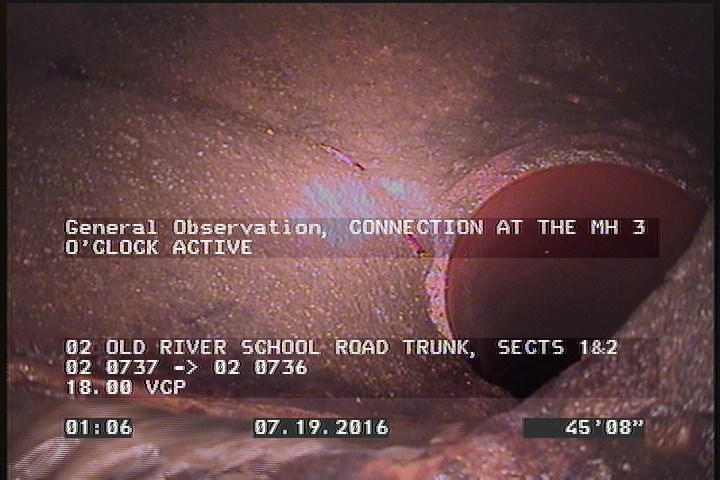

45.6 ft. - General Observation - CONNECTION AT THE MH 3 O'CLOCK ACTIVE
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 45.6 | VC | — |
| 45.6 | MGO | CONNECTION AT THE MH 3 O'CLOCK ACTIVE |
| 0 | AMH | 02 0737 |
| 0 | MWL | — |
| 42.6 | DAGS | — |
| 2 | DAGS | — |
| 0 | MWM | — |
| 45.6 | AMH | 02 0736 |
Properties (6)
- additional_info
- SC305536
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-07-19T01:03:00-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
