Wastewater/Activity/PacpInspection/1.0Feb 29, 2016, 10:15 AM
H 0928_H 0927_20160229_033050.mp4
- Date
- 02/29/2016
- W/O
- 552579
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z01005
- PipeID
- P15341
- Time
- 2:15 AM
- Certificate
- U-507-03-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3209
- Sewer Name
- H JOINT OUTFALL H - UNIT 7C
- City
- CITY OF INDUSTRY
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 24
- Purpose
- Routine Assessment
- Project
- WO_552579_TV21022_FEB2016
- Sewer Type
- GRAVITY
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 36 in.
- Upstream MH
- H 0928
- Downstream MH
- H 0927
- Dir. of Survey
- Downstream
- Length Surveyed
- 470.5 ft.
- Total Length
- 470.5 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2111
- O&M Rating
- 3
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 3
Observation photos (3)

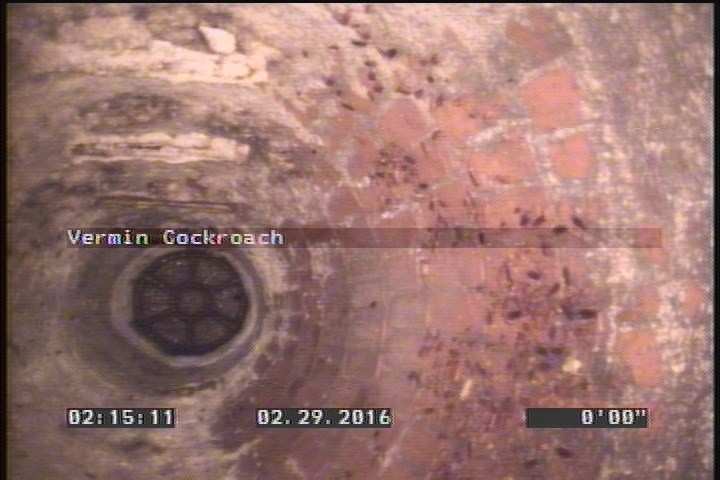

0 ft. - Vermin Cockroach

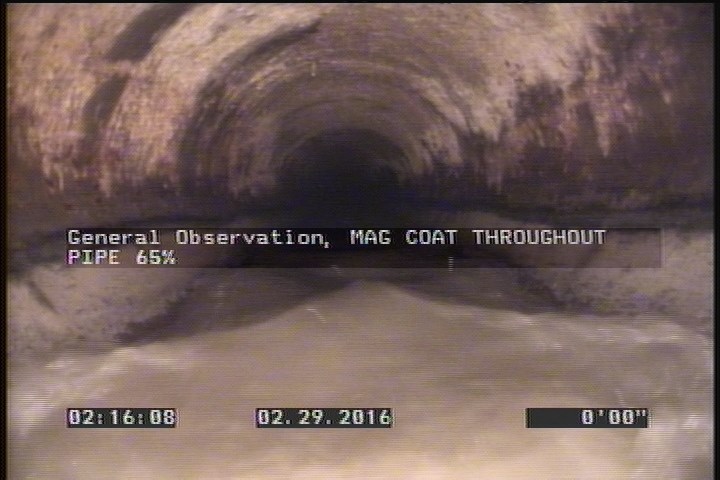

2 ft. - General Observation - MAG COAT THROUGHOUT PIPE 65%

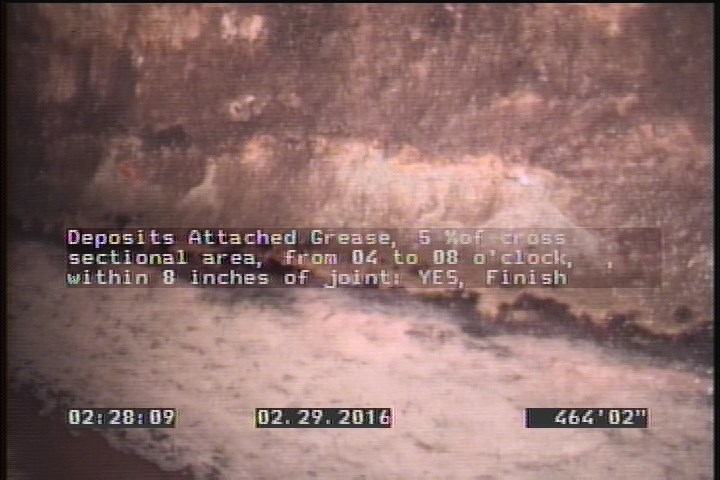

464.2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 470.5 | AMH | H 0927 |
| 2 | MGO | MAG COAT THROUGHOUT PIPE 65% |
| 0 | MWL | — |
| 464.2 | DAGS | — |
| 0 | AMH | H 0928 |
| 0 | VC | — |
| 0 | MWM | — |
| 2 | DAGS | — |
Properties (6)
- additional_info
- SC225549
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-02-29T02:15:16-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
