Wastewater/Activity/PacpInspection/1.0Feb 17, 2016, 03:00 PM
H 0937_H 0936_20160217_082202.mp4
- Date
- 02/17/2016
- W/O
- 552579
- Weather
- Dry
- Operator/Surveyor
- N.ZAHREDDINE
- Sewer ID
- Z01005
- PipeID
- P15350
- Time
- 7:00 AM
- Certificate
- U-109-7948
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3182
- Sewer Name
- H JOINT OUTFALL H - UNIT 7C
- City
- CITY OF INDUSTRY
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 33
- Purpose
- Routine Assessment
- Project
- WO_552579_TV21022_FEB2016
- Sewer Type
- GRAVITY
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 33 in.
- Upstream MH
- H 0937
- Downstream MH
- H 0936
- Dir. of Survey
- Downstream
- Length Surveyed
- 469.7 ft.
- Total Length
- 469.7 ft.
- Structural Index
- 2
- Structural Quick
- 2200
- Structural Rating
- 4
- O&M Index
- 1
- O&M Quick
- 1100
- O&M Rating
- 1
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (2)

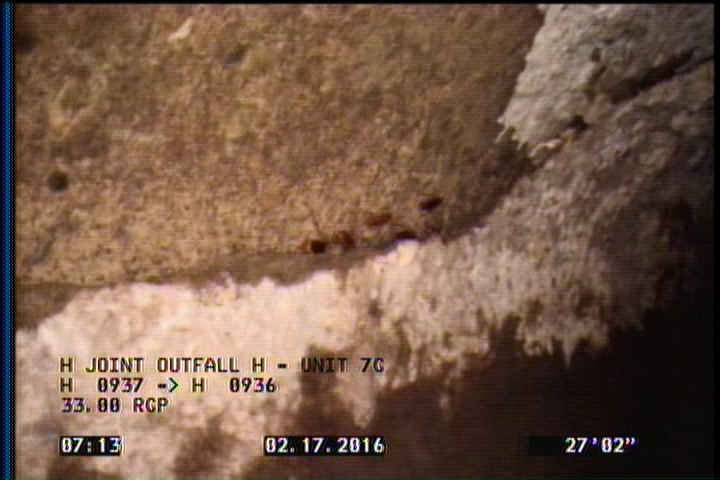

27.2 ft. - Surface Spalling, from 09 to 12 o'clock, within 8 inches of joint: YES

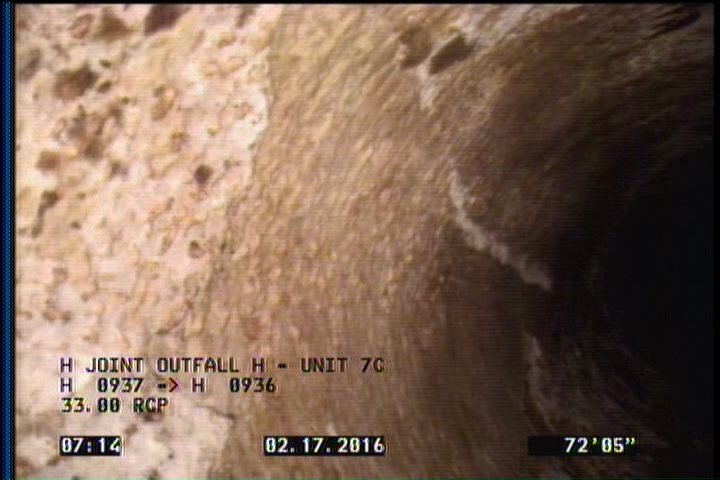

72.4 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 465.7 | MGO | MAGNEZIUM H.O COATING 50% finish |
| 469.7 | VC | — |
| 0 | AMH | H 0937 |
| 0 | MWL | — |
| 469.7 | AMH | H 0936 |
| 469.7 | MGO | SERVICE LATERAL AT 3 O' CLOCK AT MH |
| 465.7 | SSS | — |
| 2 | MGO | MAGNEZIUM H.O COATING 50% start |
| 27.2 | SSS | — |
| 72.4 | SSS | — |
Properties (6)
- additional_info
- SC224997
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-02-17T07:00:58-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
