Wastewater/Activity/PacpInspection/1.0Aug 9, 2016, 11:13 AM
02 0375_02 0374 _20160809_052451.mp4
- Date
- 08/09/2016
- W/O
- 252431
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00250
- PipeID
- P02690
- Time
- 4:13 AM
- Certificate
- U-507-03-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3678
- Sewer Name
- 02 DOWNEY AVENUE EXTENSION TRUNK
- City
- BELLFLOWER, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 36
- Purpose
- Routine Assessment
- Project
- WO_252431_TV02049_AUG2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 02 0374
- Downstream MH
- 02 0375
- Dir. of Survey
- Upstream
- Length Surveyed
- 330.4 ft.
- Total Length
- 330.4 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (2)

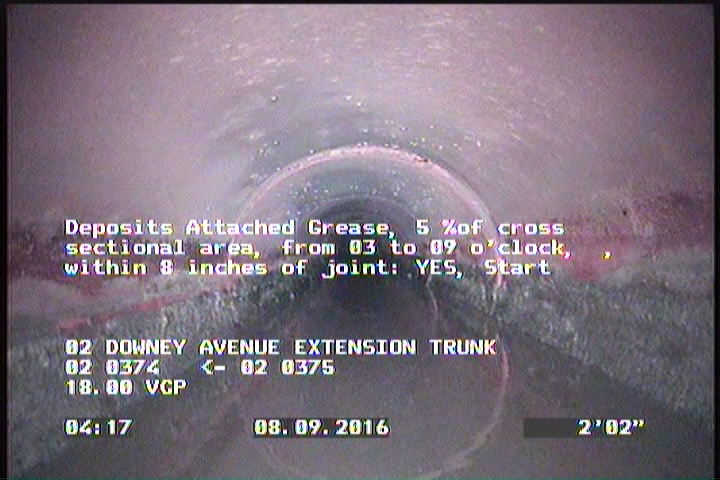

2.2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

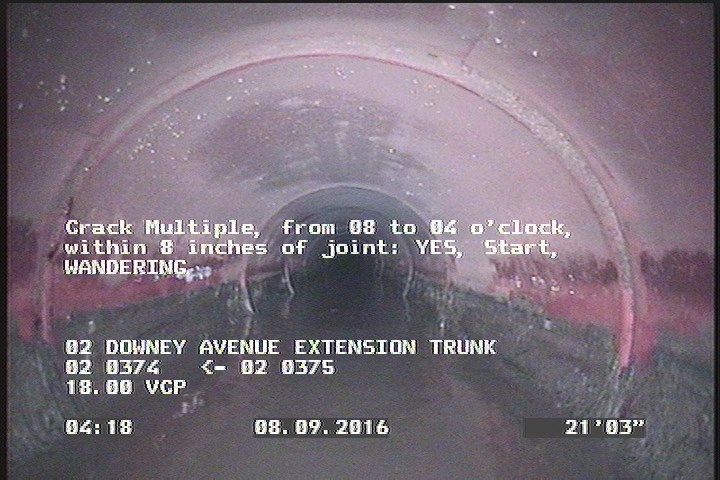

21.3 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - WANDERING
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 227.9 | TFI | — |
| 21.3 | CM | WANDERING |
| 2.2 | DAGS | — |
| 0 | AMH | 02 0374 |
| 324.4 | CM | — |
| 330.4 | MGO | CONNECTION AT THE MH 9 O'CLOCK ACTIVE |
| 330.4 | AMH | 02 0375 |
| 0 | MWL | — |
| 327.6 | DAGS | — |
| 0 | MWM | — |
Properties (6)
- additional_info
- SC306008
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-08-09T04:13:54-07:00
- documentation
- PRO-PIPE
- is_lateral_inspection
- false
