Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 12, 2016, 05:38 AM

  • 02 0395_02 0394B _20160811_235040.mp4

Date
08/11/2016
W/O
252431
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00250
PipeID
P19993
Time
10:38 PM
Certificate
U-507-03-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3681
Sewer Name
02 DOWNEY AVENUE EXTENSION TRUNK
City
PARAMOUNT, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
32
Purpose
Routine Assessment
Project
WO_252431_TV02049_AUG2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
02 0395
Downstream MH
02 0394B
Dir. of Survey
Downstream
Length Surveyed
226.7 ft.
Total Length
226.7 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
2
Pipe schematic from manhole 02 0395 to 02 0394B
MH: 02 0395MH: 02 0394Bdownstream0 ft. MGO - General Observation - CONNECTION AT THE MH 3 O'CLOCK ACTIVE0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT THE MH 9 O'CLOCK ACTIVE0 ft. AMH - Upstream Manhole, Survey Begins - 02 03959.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start38.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"44.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"91.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"96.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4"143.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4"147 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"180.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4"201.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"223.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish226.7 ft. AMH - Downstream Manhole, Survey Ends - 02 0394B226.7 ft. MGO - General Observation - CONNECTION AT THE MH 3 O'CLOCK ACTIVE

Observation photos (4)

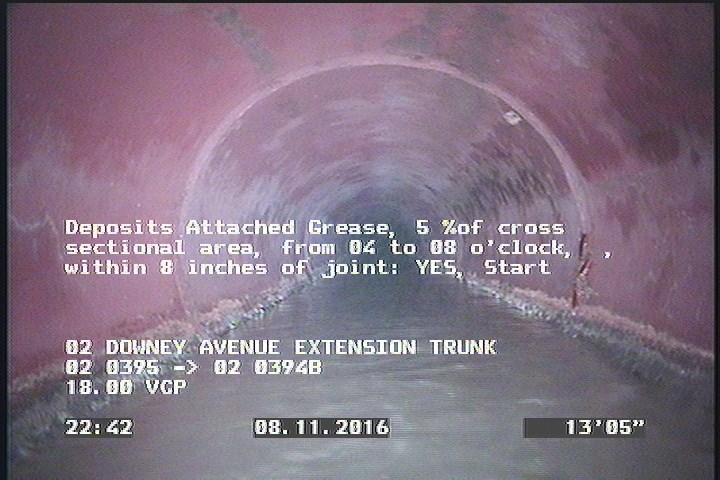

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    9.9 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

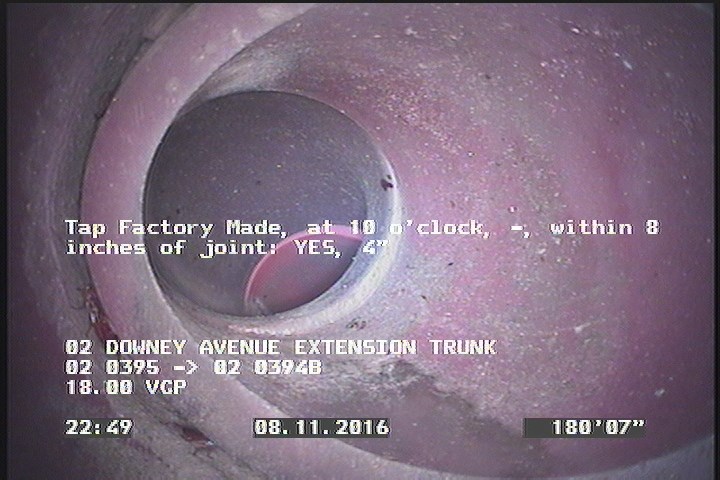

  • Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4"

    143.5 ft. - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4"

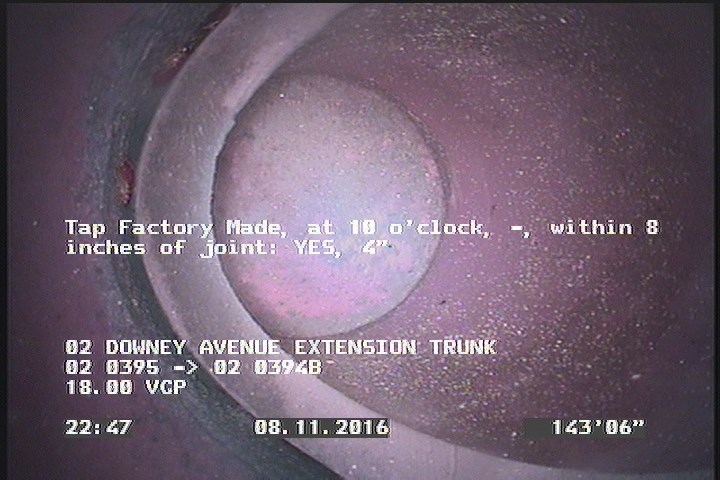

  • Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4"

    180.5 ft. - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4"

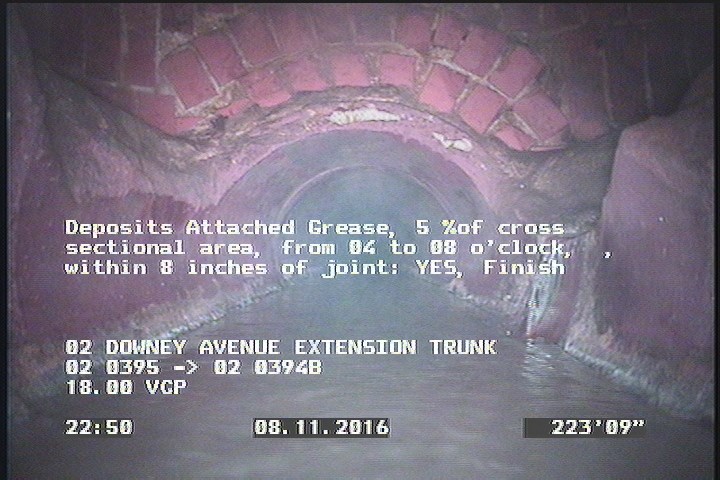

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish

    223.8 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish

All inspections of P19993Work order 252431

Observations (17)

DistanceCodeObservation
0MGOCONNECTION AT THE MH 3 O'CLOCK ACTIVE
180.5TF—
0MWM—
44.3TFC—
223.8DAGS—
38.7TFC—
143.5TF—
0MWL—
96.3TF—
147TBA—
9.9DAGS—
91.3TFC—
226.7AMH02 0394B
201.6TFC—
0MGOCONNECTION AT THE MH 9 O'CLOCK ACTIVE
226.7MGOCONNECTION AT THE MH 3 O'CLOCK ACTIVE
0AMH02 0395

Properties (6)

additional_info
SC306011
custom_field_two
4
customer
LACSD
datetime
2016-08-11T22:38:08-07:00
documentation
PRO-PIPE
is_lateral_inspection
false
