Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 10, 2019, 09:53 AM

  • Section#4_18 0971A_18 0986__7102019__I0172.mp4

Date
07/10/2019
W/O
0777340
Weather
Dry
Operator/Surveyor
REVELES
Sewer ID
Z00716
PipeID
P14823
Time
2:53 AM
Certificate
U-115-06022630
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
I0172
Sewer Name
18 WORSHAM CREEK TRUNK
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
11
Purpose
Resurvey For Any Reason
Project
20191007VMR_WORSHAM_CREEK_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
7.519999980926514 in.
Upstream MH
18 0971A
Downstream MH
18 0986
Dir. of Survey
Downstream
Length Surveyed
390 ft.
Total Length
390 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
3
O&M Quick
3411
O&M Rating
13
Overall Index
3
Overall Quick
—
Overall Rating
13
Pipe schematic from manhole 18 0971A to 18 0986
MH: 18 0971AMH: 18 0986downstream0 ft. AMH - Upstream Manhole, Survey Begins - 02:59 AM0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MWM - Water Mark, 10 %of cross sectional area140.2 ft. RMC - Roots Medium Connection, from 10 to 01 o'clock, 20 %, within 8 inches of joint: NO187.2 ft. RMC - Roots Medium Connection, from 09 to 11 o'clock, 20 %, within 8 inches of joint: NO236.2 ft. RMC - Roots Medium Connection, from 09 to 12 o'clock, 35 %, within 8 inches of joint: NO277.4 ft. RMC - Roots Medium Connection, from 09 to 12 o'clock, 35 %, within 8 inches of joint: NO323.9 ft. RFC - Roots Fine Connection, at 11 o'clock, within 8 inches of joint: NO390 ft. AMH - Downstream Manhole, Survey Ends - 03:57 AM

Observation photos (4)

  • Roots Medium Connection, from 10 to 01 o'clock, 20 %, within 8 inches of joint: NO

    140.2 ft. - Roots Medium Connection, from 10 to 01 o'clock, 20 %, within 8 inches of joint: NO

  • Roots Medium Connection, from 09 to 11 o'clock, 20 %, within 8 inches of joint: NO

    187.2 ft. - Roots Medium Connection, from 09 to 11 o'clock, 20 %, within 8 inches of joint: NO

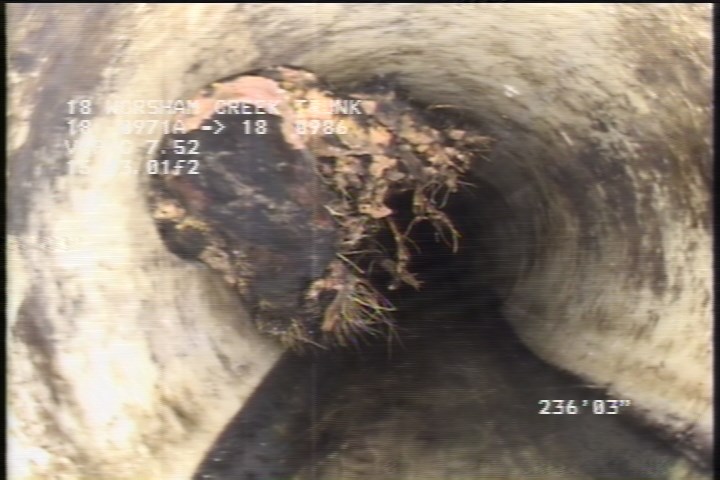

  • Roots Medium Connection, from 09 to 12 o'clock, 35 %, within 8 inches of joint: NO

    236.2 ft. - Roots Medium Connection, from 09 to 12 o'clock, 35 %, within 8 inches of joint: NO

  • Roots Medium Connection, from 09 to 12 o'clock, 35 %, within 8 inches of joint: NO

    277.4 ft. - Roots Medium Connection, from 09 to 12 o'clock, 35 %, within 8 inches of joint: NO

All inspections of P14823Work order 0777340

Observations (9)

DistanceCodeObservation
277.4RMC—
0AMH02:59 AM
187.2RMC—
140.2RMC—
0MWL—
236.2RMC—
390AMH03:57 AM
323.9RFC—
0MWM—

Properties (5)

custom_field_two
3
customer
LACSD
datetime
2019-07-10T02:53:38-07:00
is_lateral_inspection
false
lining
PVCO-Folded/Reformed
