Wastewater/Activity/PacpInspection/1.0Mar 31, 2016, 11:58 AM
02 099402 0993District 02_033116_050100.mp4
- Date
- 03/31/2016
- W/O
- 563376
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00279
- PipeID
- P03566
- Time
- 4:58 AM
- Certificate
- U50703-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3242
- Sewer Name
- 02 MONTEBELLO TRUNK
- City
- MONTEBELLO, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 18
- Purpose
- Routine Assessment
- Project
- RFIR_WO_563376_TV02334_APRIL2016
- Sewer Type
- GRAVITY
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Upstream MH
- 02 0994
- Downstream MH
- 02 0993
- Dir. of Survey
- Downstream
- Length Surveyed
- 167.5 ft.
- Total Length
- 167.5 ft.
- Structural Index
- 3
- Structural Quick
- 3200
- Structural Rating
- 6
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (4)

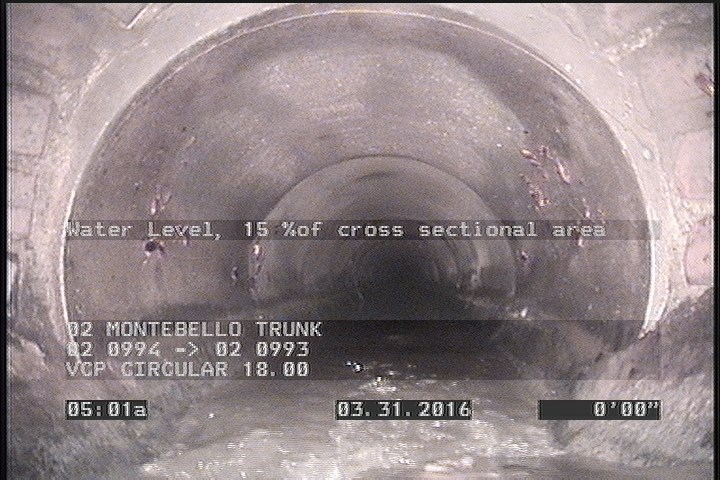

0 ft. - Water Level, 15 %of cross sectional area

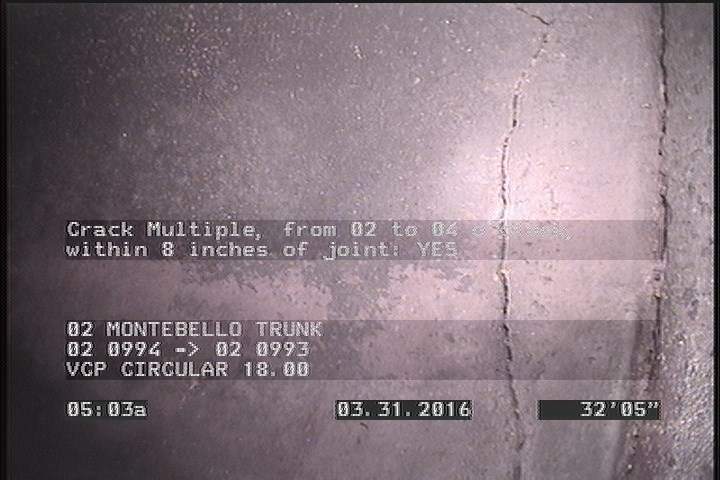

32.4 ft. - Crack Multiple, from 02 to 04 o'clock, within 8 inches of joint: YES

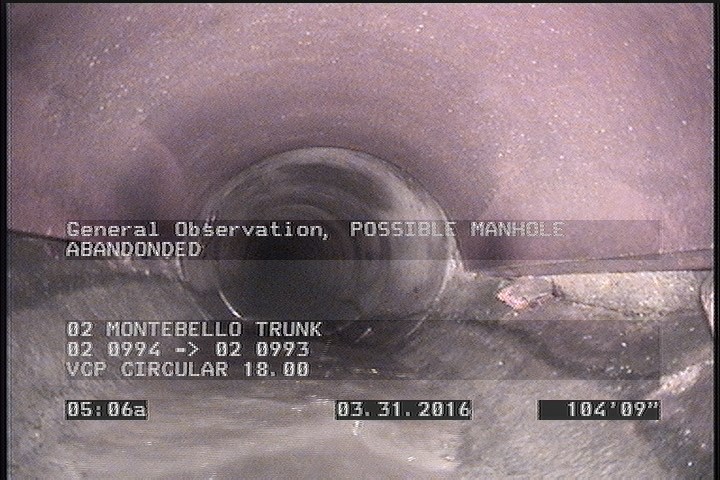

104.7 ft. - General Observation - POSSIBLE MANHOLE ABANDONDED

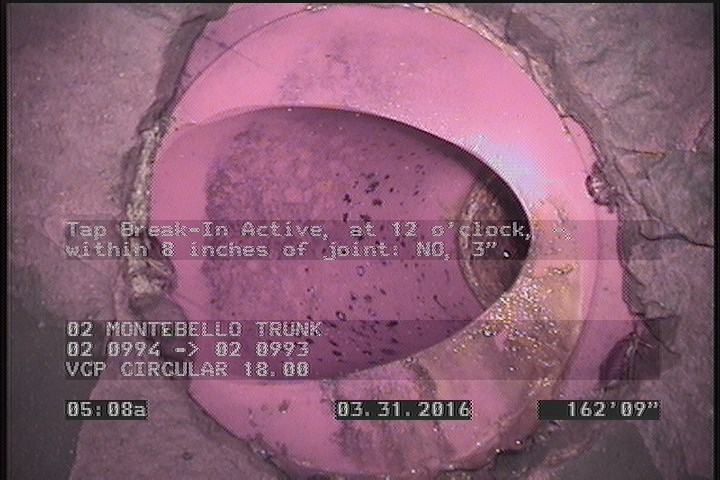

162.7 ft. - Tap Break-In Active, at 12 o'clock, -, within 8 inches of joint: NO, 3"
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 9.2 | DAGS | — |
| 100.2 | CM | — |
| 162.7 | TBA | — |
| 164.5 | DAGS | — |
| 0 | AMH | 02 0994 |
| 167.5 | AMH | 02 0993 |
| 89.2 | MGO | DEBRIS THROUGHOUT LINE |
| 68.2 | CM | — |
| 104.7 | MGO | POSSIBLE MANHOLE ABANDONDED |
| 0 | MWM | — |
| 32.4 | CM | — |
| 0 | MWL | — |
Properties (6)
- additional_info
- SC305333
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-03-31T04:58:52-07:00
- documentation
- PRO-PIPE
- is_lateral_inspection
- false
