Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 2, 2017, 09:25 AM

  • 15 0009_15 0008 _02112017_022718.mp4

Date
11/02/2017
W/O
668687
Weather
Dry
Operator/Surveyor
K. ADAME
Sewer ID
Z00622
PipeID
P11897
Time
2:25 AM
Certificate
07009000
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4841
Sewer Name
15 PUENTE TRUNK
City
LA PUENTE, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
29
Purpose
Routine Assessment
Project
WO_668687_TV15206_NOV2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
15 0009
Downstream MH
15 0008
Dir. of Survey
Downstream
Length Surveyed
465.4 ft.
Total Length
465.4 ft.
Structural Index
3
Structural Quick
493C
Structural Rating
96
O&M Index
2
O&M Quick
2c00
O&M Rating
358
Overall Index
2
Overall Quick
—
Overall Rating
454
Pipe schematic from manhole 15 0009 to 15 0008
MH: 15 0009MH: 15 0008downstream0 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 15 00090 ft. MWM - Water Mark, 20 %of cross sectional area8 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES11.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Start15.7 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: NO, Start18 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES53.1 ft. CM - Crack Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES57.9 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES63.6 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: NO, Start64.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"98.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"104 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: NO, Finish126.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6"144.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"146.4 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES166.4 ft. FM - Fracture Multiple, from 08 to 11 o'clock, within 8 inches of joint: YES173 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"178.8 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES194.3 ft. CM - Crack Multiple, from 08 to 09 o'clock, within 8 inches of joint: YES196.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"209.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6"245.5 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES247.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"249.2 ft. FM - Fracture Multiple, from 02 to 04 o'clock, within 8 inches of joint: YES270.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6"272.6 ft. FM - Fracture Multiple, from 08 to 12 o'clock, within 8 inches of joint: YES293.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"295.7 ft. FM - Fracture Multiple, from 08 to 01 o'clock, within 8 inches of joint: YES321.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"323.5 ft. CL - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES344.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"361.3 ft. CM - Crack Multiple, from 01 to 03 o'clock, within 8 inches of joint: YES367.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"394.5 ft. FM - Fracture Multiple, from 08 to 10 o'clock, within 8 inches of joint: YES395.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"397.4 ft. FM - Fracture Multiple, from 08 to 11 o'clock, within 8 inches of joint: YES402.7 ft. FM - Fracture Multiple, from 12 to 03 o'clock, within 8 inches of joint: YES424.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"431.2 ft. FM - Fracture Multiple, from 08 to 03 o'clock, within 8 inches of joint: YES440.7 ft. CM - Crack Multiple, from 08 to 12 o'clock, within 8 inches of joint: YES446.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"448.6 ft. CM - Crack Multiple, from 01 to 04 o'clock, within 8 inches of joint: YES453.2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES458.3 ft. CM - Crack Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES463 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: NO, Finish463 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Finish465.4 ft. AMH - Downstream Manhole, Survey Ends - 15 0008

Observation photos (25)

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    8 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

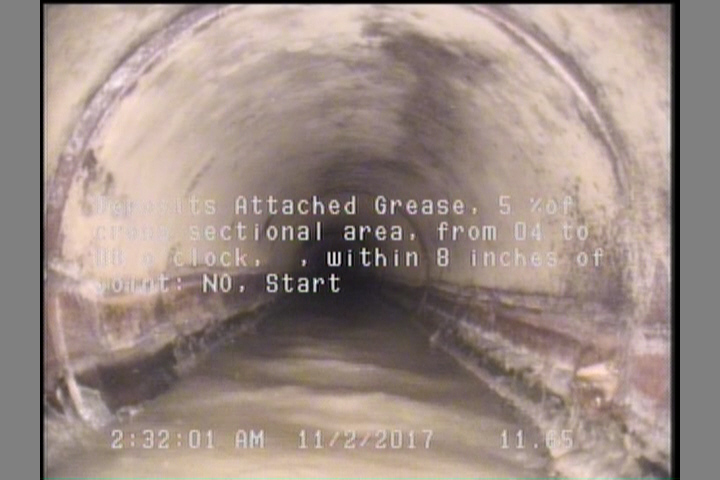

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Start

    11.7 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Start

  • Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: NO, Start

    15.7 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: NO, Start

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    18 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES

    53.1 ft. - Crack Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    57.9 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

    63.6 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

  • Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    146.4 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

  • Fracture Multiple, from 08 to 11 o'clock, within 8 inches of joint: YES

    166.4 ft. - Fracture Multiple, from 08 to 11 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    178.8 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 08 to 09 o'clock, within 8 inches of joint: YES

    194.3 ft. - Crack Multiple, from 08 to 09 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    245.5 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

  • Fracture Multiple, from 02 to 04 o'clock, within 8 inches of joint: YES

    249.2 ft. - Fracture Multiple, from 02 to 04 o'clock, within 8 inches of joint: YES

  • Fracture Multiple, from 08 to 12 o'clock, within 8 inches of joint: YES

    272.6 ft. - Fracture Multiple, from 08 to 12 o'clock, within 8 inches of joint: YES

  • Fracture Multiple, from 08 to 01 o'clock, within 8 inches of joint: YES

    295.7 ft. - Fracture Multiple, from 08 to 01 o'clock, within 8 inches of joint: YES

  • Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

    323.5 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 01 to 03 o'clock, within 8 inches of joint: YES

    361.3 ft. - Crack Multiple, from 01 to 03 o'clock, within 8 inches of joint: YES

  • Fracture Multiple, from 08 to 10 o'clock, within 8 inches of joint: YES

    394.5 ft. - Fracture Multiple, from 08 to 10 o'clock, within 8 inches of joint: YES

  • Fracture Multiple, from 08 to 11 o'clock, within 8 inches of joint: YES

    397.4 ft. - Fracture Multiple, from 08 to 11 o'clock, within 8 inches of joint: YES

  • Fracture Multiple, from 12 to 03 o'clock, within 8 inches of joint: YES

    402.7 ft. - Fracture Multiple, from 12 to 03 o'clock, within 8 inches of joint: YES

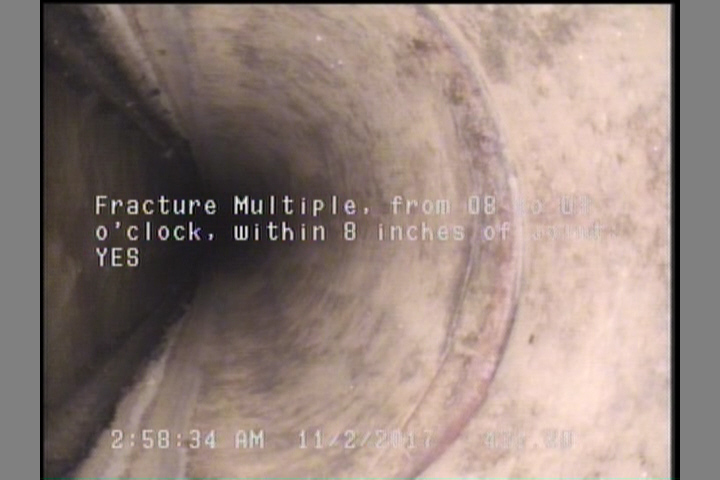

  • Fracture Multiple, from 08 to 03 o'clock, within 8 inches of joint: YES

    431.2 ft. - Fracture Multiple, from 08 to 03 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 08 to 12 o'clock, within 8 inches of joint: YES

    440.7 ft. - Crack Multiple, from 08 to 12 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 01 to 04 o'clock, within 8 inches of joint: YES

    448.6 ft. - Crack Multiple, from 01 to 04 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    453.2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES

    458.3 ft. - Crack Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES

All inspections of P11897Work order 668687

Observations (49)

DistanceCodeObservation
194.3CM—
395.9TFC—
0MGOCONNECTION AT MH 9 O'CLOCK
394.5FM—
15.7DAE—
424.1TFC—
270.6TF—
209.5TF—
11.7DAGS—
0MWL—
361.3CM—
126.6TF—
465.4AMH15 0008
463DAE—
146.4FM—
98.4TFC—
196.1TFC—
448.6CM—
463DAGS—
295.7FM—
18CL—
178.8CM—
293.7TFC—
173TFC—
323.5CL—
166.4FM—
446.9TFC—
63.6CM—
57.9CM—
397.4FM—
104CM—
453.2CM—
64.7TFC—
0AMH15 0009
367.9TFC—
245.5CM—
53.1CM—
0MWM—
440.7CM—
272.6FM—
458.3CM—
344.8TFC—
321.9TFC—
402.7FM—
8CL—
144.6TFC—
249.2FM—
431.2FM—
247.4TFC—

Properties (5)

additional_info
SC343947
custom_field_two
3
customer
LACSD
datetime
2017-11-02T02:25:44-07:00
is_lateral_inspection
false
