Wastewater/Activity/PacpInspection/1.0Sep 19, 2017, 09:46 AM
22 0557_22 0556 _09192017_024708.mp4
- Date
- 09/19/2017
- W/O
- 657865
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00791
- PipeID
- P16899
- Time
- 2:46 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4977
- Sewer Name
- 22 BEN LOMOND TRUNK
- City
- GLENDORA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 21
- Purpose
- Routine Assessment
- Project
- WO_657865_TV22102_SEP2017
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 22 0557
- Downstream MH
- 22 0556
- Dir. of Survey
- Downstream
- Length Surveyed
- 254.7 ft.
- Total Length
- 254.7 ft.
- Structural Index
- 1
- Structural Quick
- 1200
- Structural Rating
- 2
- O&M Index
- 2
- O&M Quick
- 2I00
- O&M Rating
- 100
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 102
Observation photos (2)

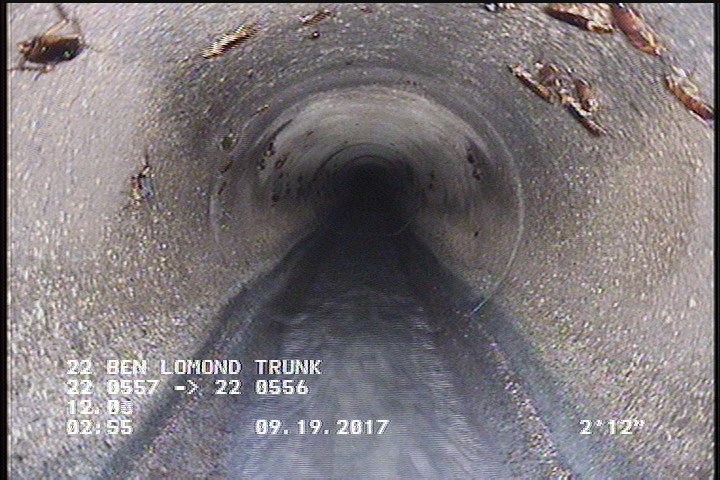

3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

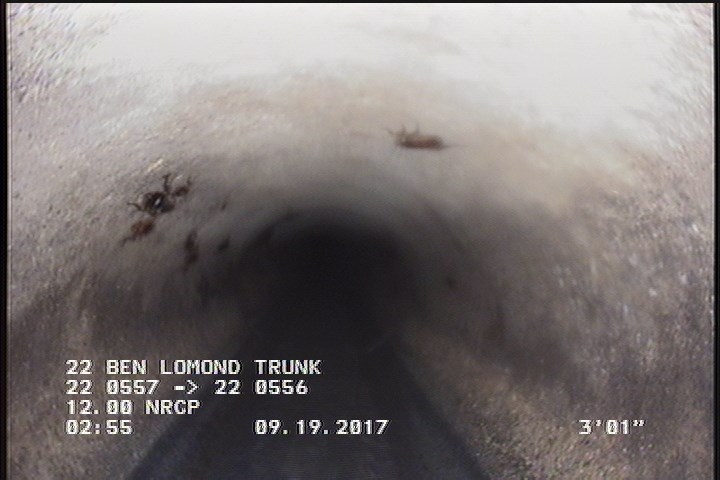

3.1 ft. - Surface Roughness Increased, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 3 | DAGS | — |
| 254.7 | MGO | CONNECTION AT 3 OC |
| 0 | AMH | 22 0557 |
| 0 | MWL | — |
| 192.8 | TFC | — |
| 95.7 | TF | — |
| 57.8 | TFB | — |
| 187.8 | TF | — |
| 0 | MWM | — |
| 254.7 | AMH | 22 0556 |
| 0 | MGO | ACTIVE CONN. INSIDE THE MH. @ 03 O'CLOCK |
| 254.7 | SRI | — |
| 254.7 | DAGS | — |
| 3.1 | SRI | — |
| 47.5 | TF | — |
Properties (5)
- additional_info
- SC345969
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-09-19T02:46:36-07:00
- is_lateral_inspection
- false
