Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 21, 2016, 10:47 AM

  • 01 0268_01 0267_062116_040508.mpg

Date
06/21/2016
W/O
574241
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00218
PipeID
P01316
Time
3:47 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3402
Sewer Name
01 SOUTH PARK AVENUE TRUNK
City
LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
09
Purpose
Routine Assessment
Project
WO_574241_TV01204_JUNE2016
Sewer Type
GRAVITY
Material
Vitrified Clay Pipe
Lining Method
Segmented Panel
Shape
Circular
Height
12 in.
Upstream MH
01 0268
Downstream MH
01 0267
Dir. of Survey
Downstream
Length Surveyed
325.3 ft.
Total Length
325.3 ft.
Structural Index
4
Structural Quick
4I3A
Structural Rating
241
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
241
Pipe schematic from manhole 01 0268 to 01 0267
MH: 01 0268MH: 01 0267downstream0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01 02680 ft. MGO - General Observation - CONNECTION AT THE MH 9 O'CLOCK0 ft. MGO - General Observation - CONNECTION AT THE MH 9 O'CLOCK0 ft. MWL - Water Level, 15 %of cross sectional area3.9 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start57 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish57 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start82.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"144.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"203.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"236 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"265.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"319.5 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish325.3 ft. MGO - General Observation - CONNECTION AT THE MH 3 O'CLOCK325.3 ft. AMH - Downstream Manhole, Survey Ends - 01 0267325.3 ft. MGO - General Observation - CONNECTION AT THE MH CAPPED 9 O'CLOCK

Observation photos (3)

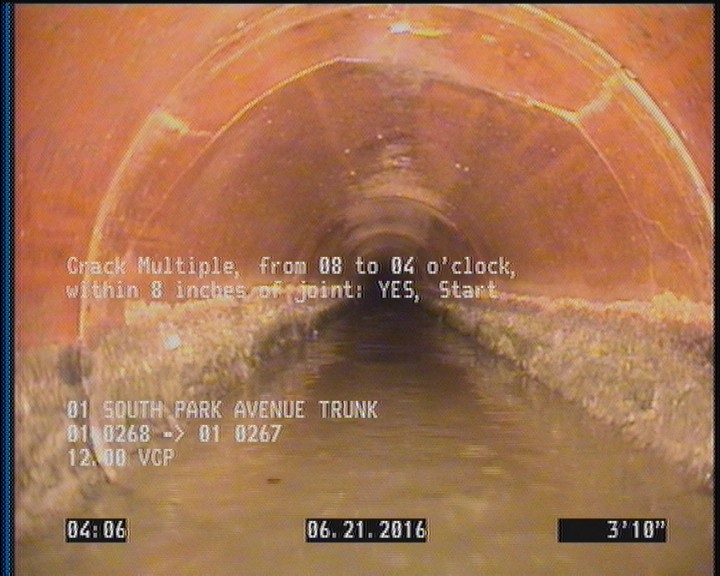

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    3.9 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

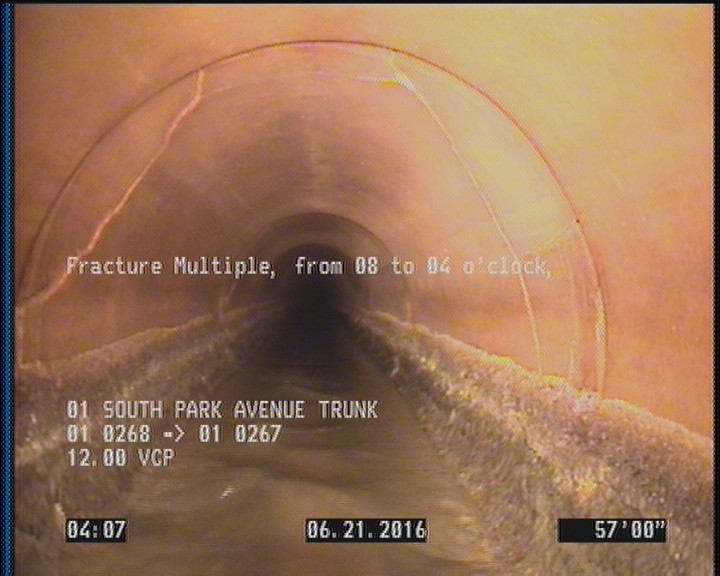

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    57 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

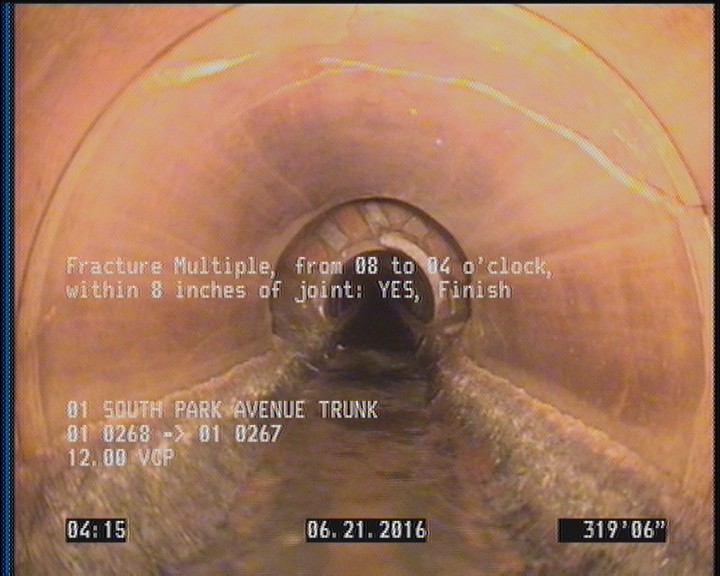

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

    319.5 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

All inspections of P01316Work order 574241

Observations (17)

DistanceCodeObservation
0MWM—
57CM—
3.9CM—
82.3TFC—
236TFC—
325.3MGOCONNECTION AT THE MH 3 O'CLOCK
325.3AMH01 0267
0AMH01 0268
0MGOCONNECTION AT THE MH 9 O'CLOCK
0MGOCONNECTION AT THE MH 9 O'CLOCK
325.3MGOCONNECTION AT THE MH CAPPED 9 O'CLOCK
319.5FM—
0MWL—
203.3TF—
265.3TFC—
144.7TF—
57FM—

Properties (5)

additional_info
SC305852
custom_field_two
2
customer
LACSD
datetime
2016-06-21T03:47:45-07:00
is_lateral_inspection
false
