Wastewater/Activity/PacpInspection/1.0Jun 22, 2016, 07:05 AM
01 0258_01 0257_062216_000540.mpg
- Date
- 06/22/2016
- W/O
- 574241
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00218
- PipeID
- P01304
- Time
- 12:05 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3403
- Sewer Name
- 01 SOUTH PARK AVENUE TRUNK
- City
- LOS ANGELES
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_574241_TV01204_JUNE2016
- Sewer Type
- GRAVITY
- Material
- Vitrified Clay Pipe
- Lining Method
- Segmented Panel
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- 01 0258
- Downstream MH
- 01 0257
- Dir. of Survey
- Downstream
- Length Surveyed
- 280.4 ft.
- Total Length
- 280.4 ft.
- Structural Index
- 3
- Structural Quick
- 3J00
- Structural Rating
- 168
- O&M Index
- 2
- O&M Quick
- 2J00
- O&M Rating
- 112
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 280
Observation photos (2)

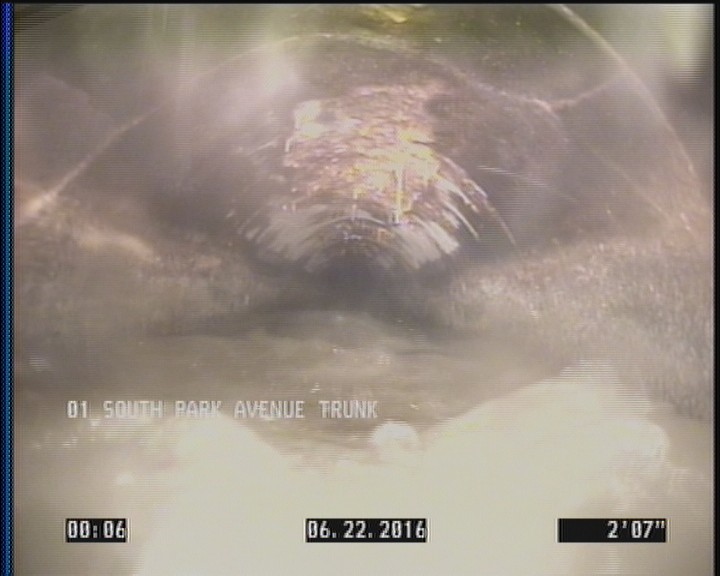

2.6 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES, Start

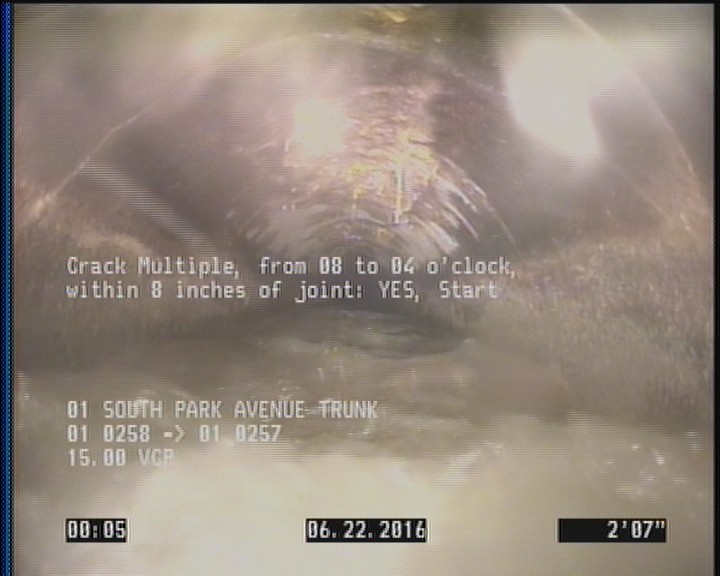

2.6 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 2.6 | DAGS | — |
| 280.4 | CM | — |
| 280.4 | AMH | 01 0257 |
| 0 | MWM | — |
| 280.4 | DAGS | — |
| 264.3 | TF | — |
| 222.6 | TFC | — |
| 0 | MGO | CONNECTION AT THE MH 3 O'CLOCK |
| 0 | AMH | 01 0258 |
| 104.3 | TF | — |
| 184 | TF | — |
| 145.5 | TFA | — |
| 2.6 | CM | — |
| 0 | MWL | — |
Properties (5)
- additional_info
- SC305853
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-06-22T00:05:09-07:00
- is_lateral_inspection
- false
