Wastewater/Activity/PacpInspection/1.0Jun 21, 2016, 11:36 AM
01 0266A_01 0266_062116_043649.mpg
- Date
- 06/21/2016
- W/O
- 574241
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00218
- PipeID
- P01313
- Time
- 4:36 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3402
- Sewer Name
- 01 SOUTH PARK AVENUE TRUNK
- City
- LOS ANGELES
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_574241_TV01204_JUNE2016
- Sewer Type
- GRAVITY
- Material
- Vitrified Clay Pipe
- Lining Method
- Segmented Panel
- Shape
- Circular
- Height
- 12 in.
- Upstream MH
- 01 0266A
- Downstream MH
- 01 0266
- Dir. of Survey
- Downstream
- Length Surveyed
- 117.2 ft.
- Total Length
- 117.2 ft.
- Structural Index
- 4
- Structural Quick
- 4D00
- Structural Rating
- 92
- O&M Index
- 1
- O&M Quick
- 1600
- O&M Rating
- 6
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 98
Observation photos (3)

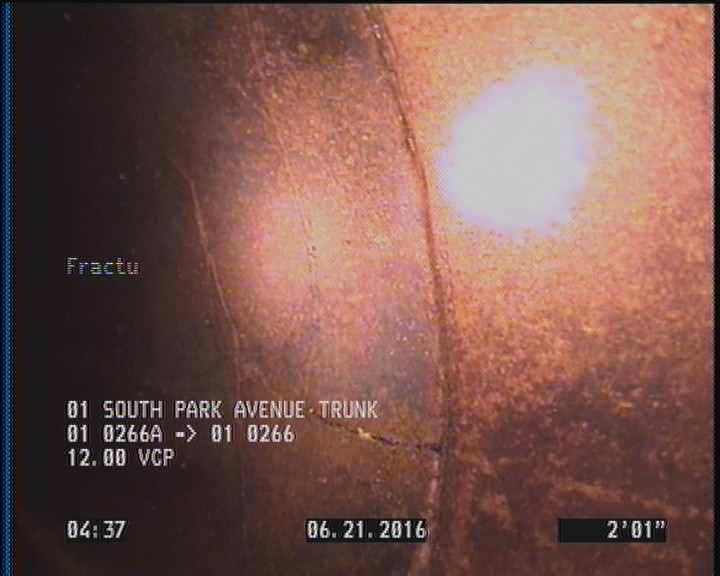

2 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

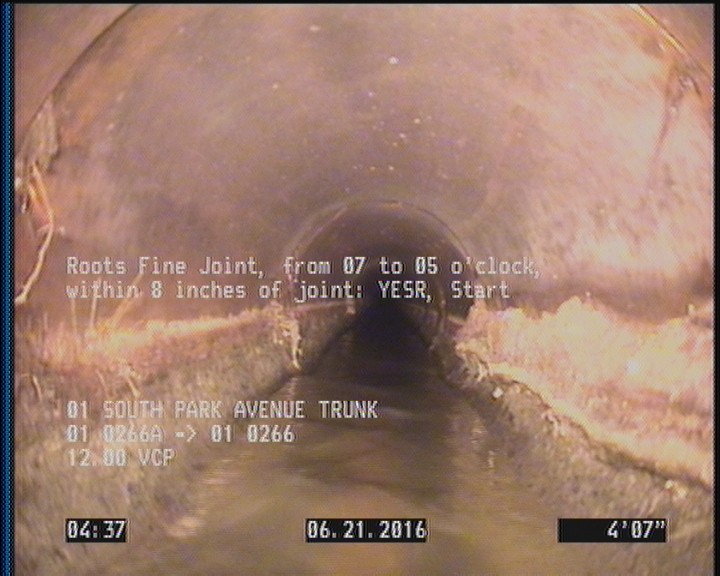

4.5 ft. - Roots Fine Joint, from 07 to 05 o'clock, within 8 inches of joint: YESR, Start

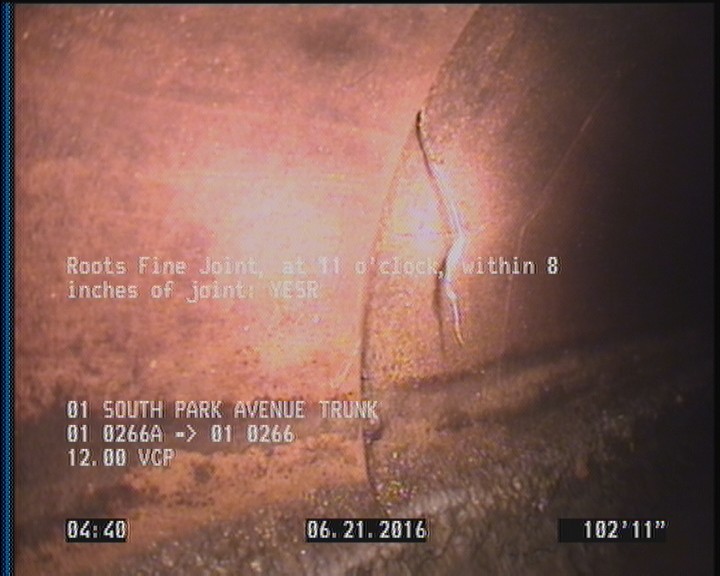

102.9 ft. - Roots Fine Joint, at 11 o'clock, within 8 inches of joint: YESR
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 31 | RFJ | — |
| 117.2 | MGO | CONNECTION AT THE MH 3 O'CLOCK |
| 2 | FM | — |
| 117.2 | AMH | 01 0266 |
| 0 | AMH | 01 0266A |
| 0 | MWM | — |
| 0 | MWL | — |
| 60.4 | TFC | — |
| 4.5 | RFJ | — |
| 102.9 | RFJ | — |
| 115.9 | FM | — |
| 27.7 | TF | — |
| 0 | MGO | CONNECTION AT THE MH 9 O'CLOCK |
Properties (5)
- additional_info
- SC305852
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2016-06-21T04:36:08-07:00
- is_lateral_inspection
- false
