Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 10, 2019, 04:40 PM

  • H 0488_H 0487_7102019_094701.mp4

Date
07/10/2019
W/O
0771738
Weather
Dry
Operator/Surveyor
BRAR
Sewer ID
Z00181
PipeID
P10914
Time
9:40 AM
Certificate
0618-0703002249
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G 8023
Sewer Name
H JOINT OUTFALL H - UNIT 6
City
INDUSTRY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
29
Purpose
Routine Assessment
Project
20190710SB_H_JOINT_OUTFALL_H_UNIT_6
Material
Reinforced Concrete Pipe
Shape
Circular
Height
54 in.
Upstream MH
H 0488
Downstream MH
H 0487
Dir. of Survey
Downstream
Length Surveyed
132.5 ft.
Total Length
132.5 ft.
Structural Index
4
Structural Quick
5131
Structural Rating
8
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole H 0488 to H 0487
MH: H 0488MH: H 0487downstream0 ft. AMH - Upstream Manhole, Survey Begins - 9:43 AM0.1 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start0.1 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start0.1 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - MAG COAT 60%0.1 ft. MGO - General Observation - ROACHES @ MH0.1 ft. MWL - Water Level, 10 %of cross sectional area0.1 ft. MWM - Water Mark, 15 %of cross sectional area34.9 ft. MGP - General Photograph39.8 ft. MGP - General Photograph82.1 ft. MGP - General Photograph121.3 ft. MGP - General Photograph121.3 ft. MGP - General Photograph123.8 ft. MGP - General Photograph126 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - MAG COAT 60%126.3 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish126.5 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish132.5 ft. AMH - Downstream Manhole, Survey Ends - 10:01 AM132.5 ft. MGO - General Observation - ROACHES @ MH132.5 ft. MGP - General Photograph

Observation photos (7)

  • General Photograph

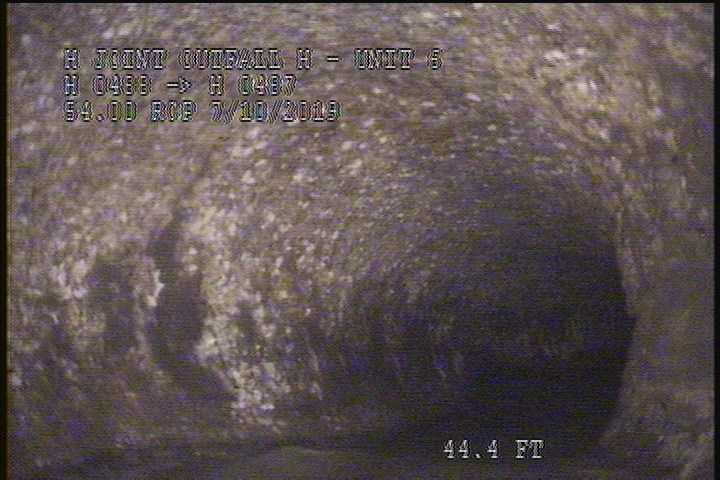

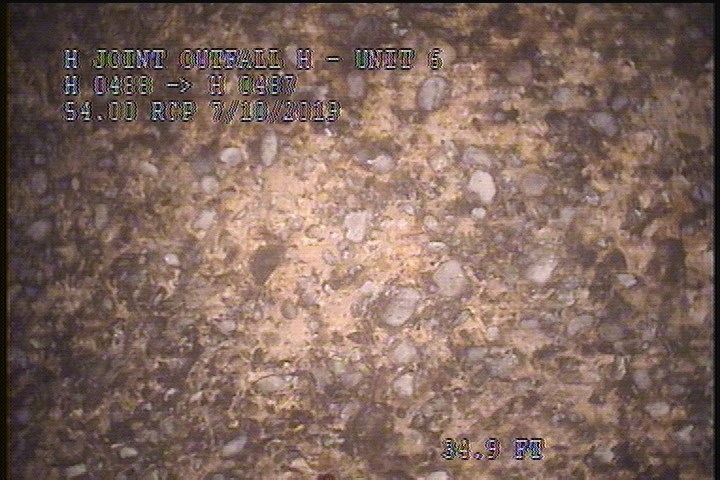

    34.9 ft. - General Photograph

  • General Photograph

    39.8 ft. - General Photograph

  • General Photograph

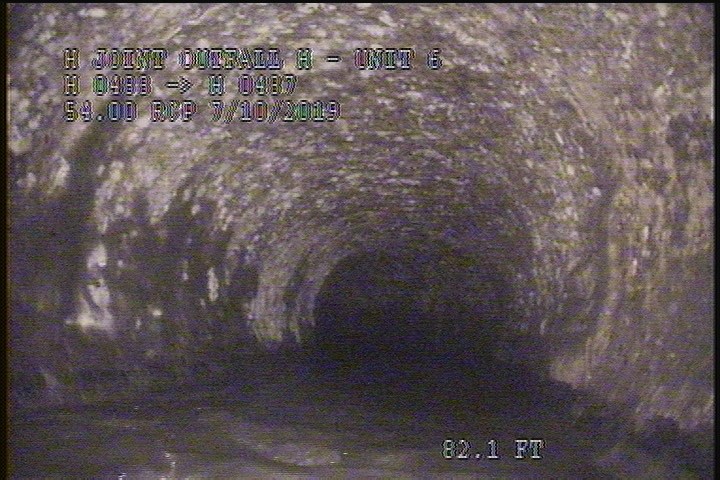

    82.1 ft. - General Photograph

  • General Photograph

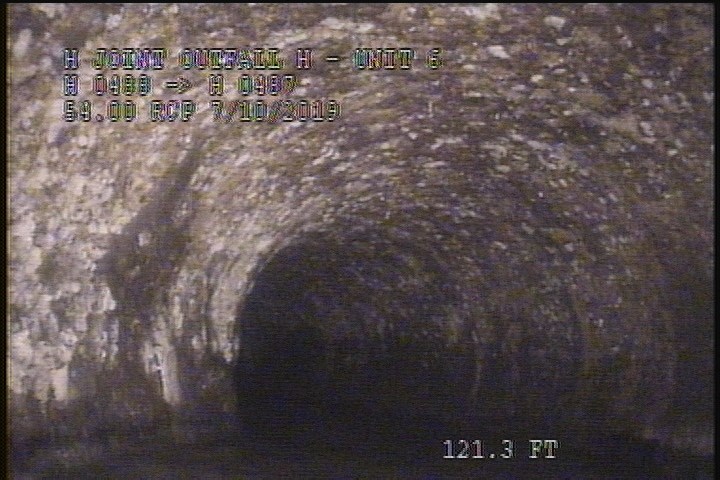

    121.3 ft. - General Photograph

  • General Photograph

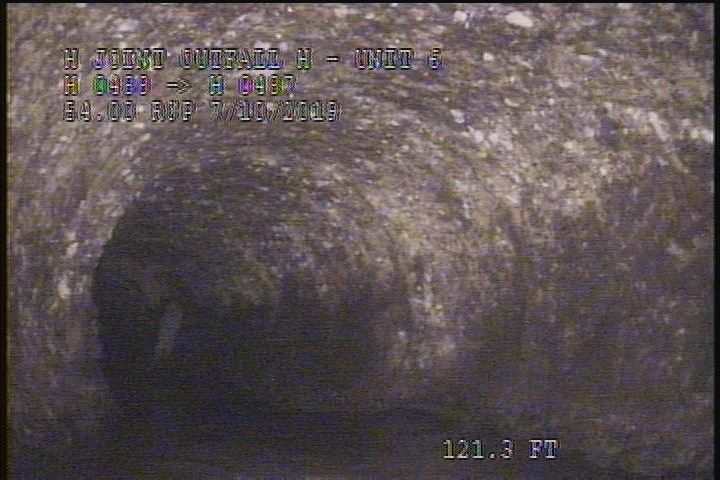

    121.3 ft. - General Photograph

  • General Photograph

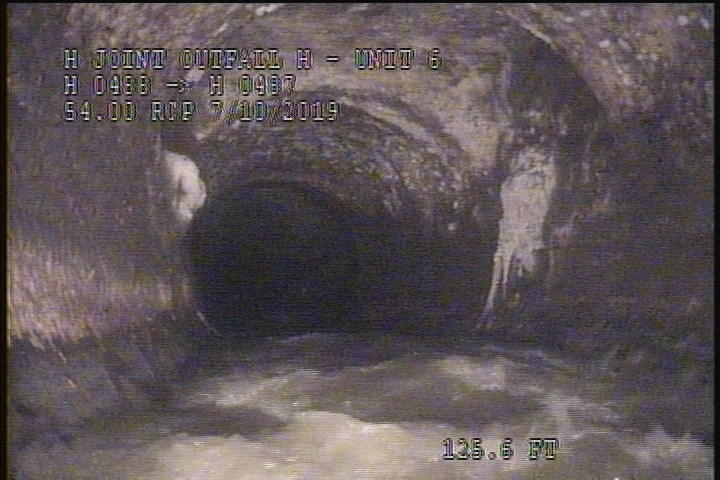

    123.8 ft. - General Photograph

  • General Photograph

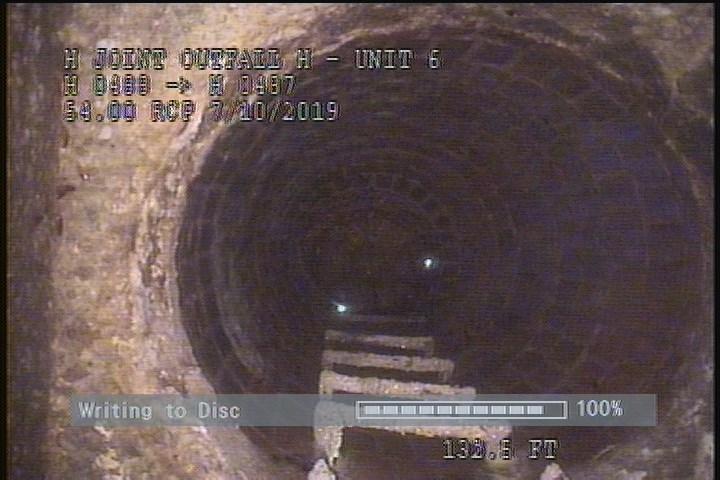

    132.5 ft. - General Photograph

All inspections of P10914Work order 0771738

Observations (19)

DistanceCodeObservation
39.8MGP—
0.1SAV—
123.8MGP—
82.1MGP—
0AMH9:43 AM
126.5SAV—
121.3MGP—
132.5AMH10:01 AM
0.1SRV—
121.3MGP—
34.9MGP—
0.1SZMAG COAT 60%
0.1MGOROACHES @ MH
132.5MGOROACHES @ MH
126.3SRV—
0.1MWL—
126SZMAG COAT 60%
132.5MGP—
0.1MWM—

Properties (7)

additional_info
U-0618-0703002249
custom_field_three
AGGREGATE & REINFORCEMENTS VISIBLE
custom_field_two
3
customer
LACSD
datetime
2019-07-10T09:40:27-07:00
documentation
BRAR, FRANKLIN, CASTILLO
is_lateral_inspection
false
