Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 10, 2019, 03:42 PM

  • H 0489_H 0488_7102019_090701.mp4

Date
07/10/2019
W/O
0771738
Weather
Dry
Operator/Surveyor
BRAR
Sewer ID
Z00181
PipeID
P10915
Time
8:42 AM
Certificate
0618-0703002249
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G 8023
Sewer Name
H JOINT OUTFALL H - UNIT 6
City
INDUSTRY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
29
Purpose
Routine Assessment
Project
20190710SB_H_JOINT_OUTFALL_H_UNIT_6
Material
Reinforced Concrete Pipe
Shape
Circular
Height
54 in.
Upstream MH
H 0489
Downstream MH
H 0488
Dir. of Survey
Downstream
Length Surveyed
378.4 ft.
Total Length
378.4 ft.
Structural Index
4
Structural Quick
5131
Structural Rating
8
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole H 0489 to H 0488
MH: H 0489MH: H 0488downstream0 ft. AMH - Upstream Manhole, Survey Begins - 8:52 AM0.1 ft. MWL - Water Level, 10 %of cross sectional area0.1 ft. MWM - Water Mark, 15 %of cross sectional area16 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 70% MAG COAT16 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start16 ft. MGP - General Photograph - US MH16 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start110.2 ft. MGP - General Photograph110.6 ft. MGP - General Photograph219.2 ft. MGP - General Photograph320.5 ft. MGP - General Photograph320.5 ft. MGP - General Photograph375.6 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 65% MAG COAT375.6 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish375.6 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish378.4 ft. MGO - General Observation - ROACHES @ MH378.4 ft. MGO - General Observation - GREASE THROUGHOUT 4 TO 8378.4 ft. AMH - Downstream Manhole, Survey Ends - 9:39 AM

Observation photos (7)

  • Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

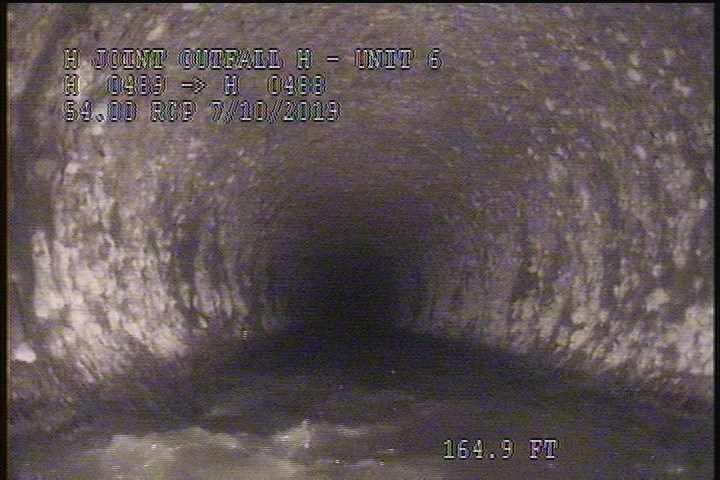

    16 ft. - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

  • General Photograph - US MH

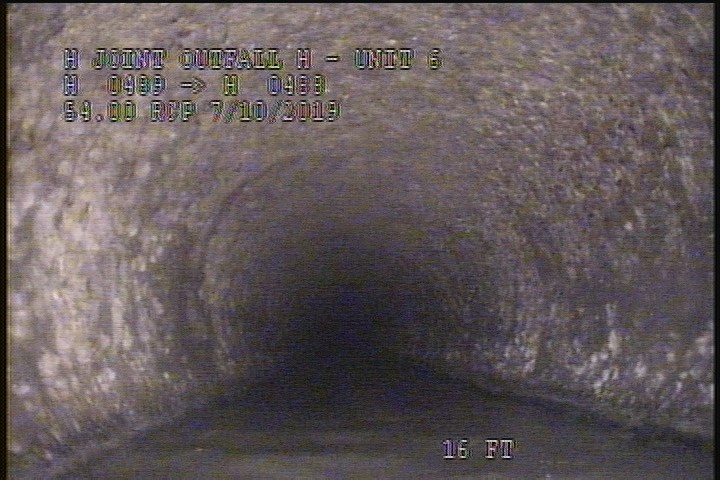

    16 ft. - General Photograph - US MH

  • General Photograph

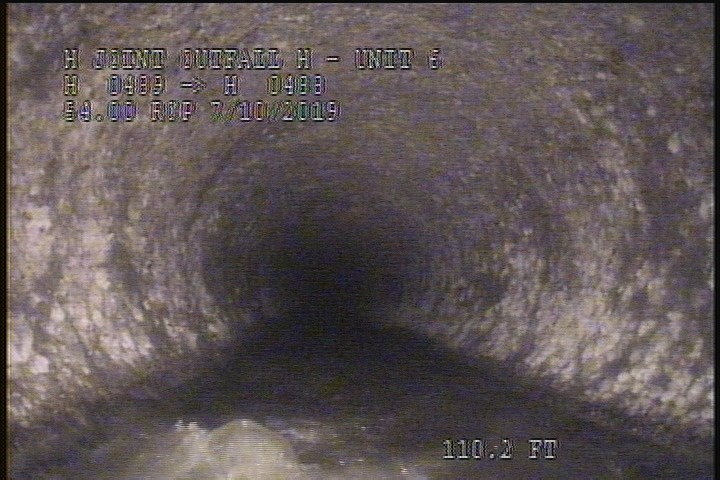

    110.2 ft. - General Photograph

  • General Photograph

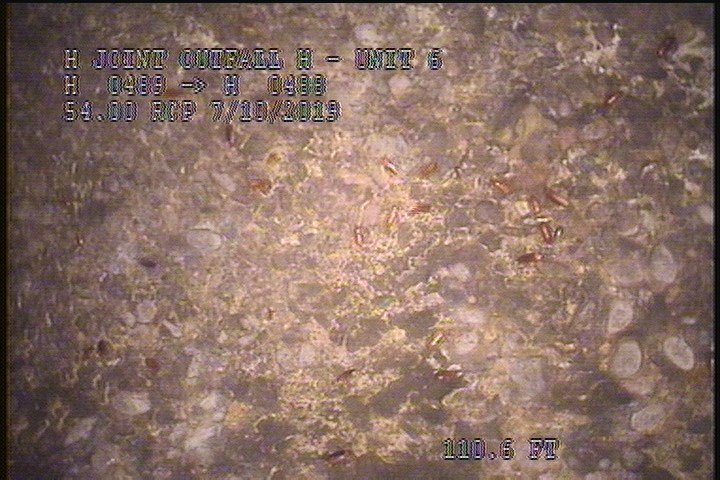

    110.6 ft. - General Photograph

  • General Photograph

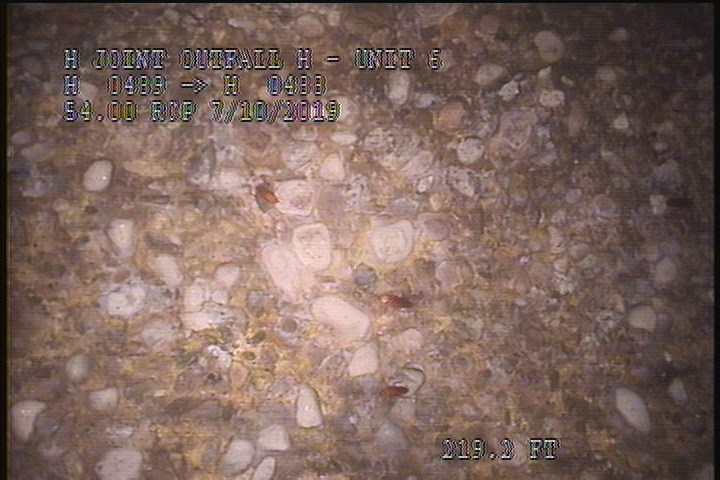

    219.2 ft. - General Photograph

  • General Photograph

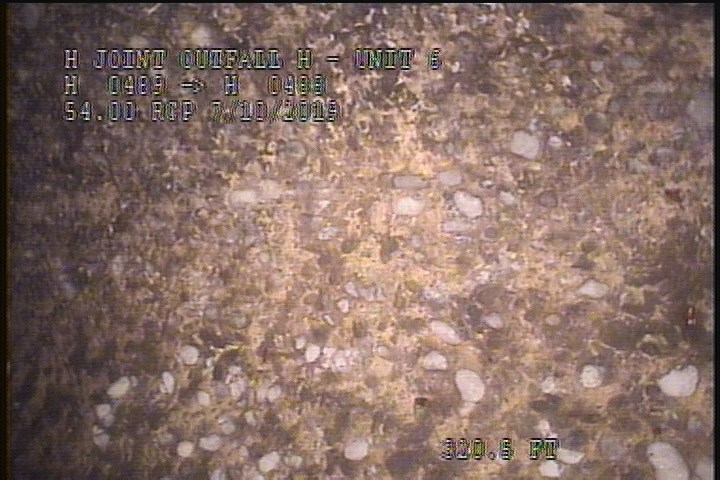

    320.5 ft. - General Photograph

  • General Photograph

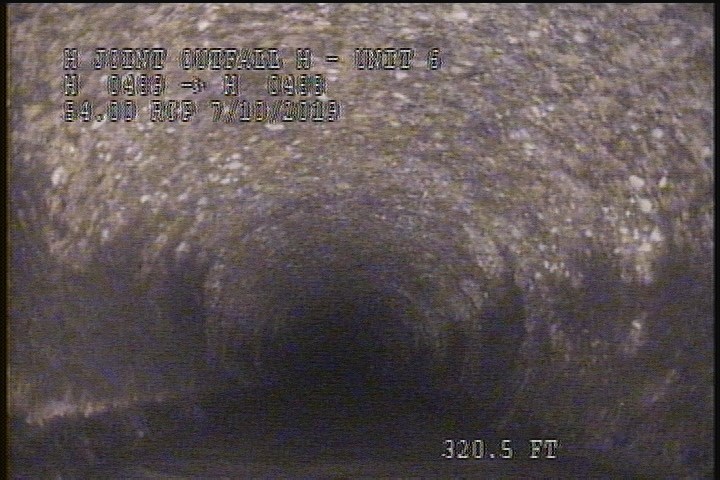

    320.5 ft. - General Photograph

All inspections of P10915Work order 0771738

Observations (18)

DistanceCodeObservation
378.4MGOROACHES @ MH
375.6SZ65% MAG COAT
16SZ70% MAG COAT
110.2MGP—
16SRV—
320.5MGP—
320.5MGP—
0.1MWL—
375.6SRV—
378.4MGOGREASE THROUGHOUT 4 TO 8
0AMH8:52 AM
16MGPUS MH
0.1MWM—
375.6SAP—
16SAP—
378.4AMH9:39 AM
219.2MGP—
110.6MGP—

Properties (7)

additional_info
U-0618-0703002249
custom_field_three
AGGREGATE VISIBLE
custom_field_two
3
customer
LACSD
datetime
2019-07-10T08:42:55-07:00
documentation
BRAR, FRANKLIN, CASTILLO
is_lateral_inspection
false
