Wastewater/Activity/PacpInspection/1.0Jul 8, 2019, 05:59 PM
Section#2_18 0973_18 0972__782019__I 0170.mp4
- Date
- 07/08/2019
- W/O
- 0777340
- Weather
- Dry
- Operator/Surveyor
- BRAR
- Sewer ID
- Z00716
- PipeID
- P14825
- Time
- 10:59 AM
- Certificate
- 0618-0703002249
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- I 0170
- Sewer Name
- 18 WORSHAM CREEK TRUNK
- City
- WHITTIER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 11
- Purpose
- Maintenance Related
- Project
- 20190708SB_WORSHAM_CREEK_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Upstream MH
- 18 0973
- Downstream MH
- 18 0972
- Dir. of Survey
- Downstream
- Length Surveyed
- 18 ft.
- Total Length
- 18 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (2)

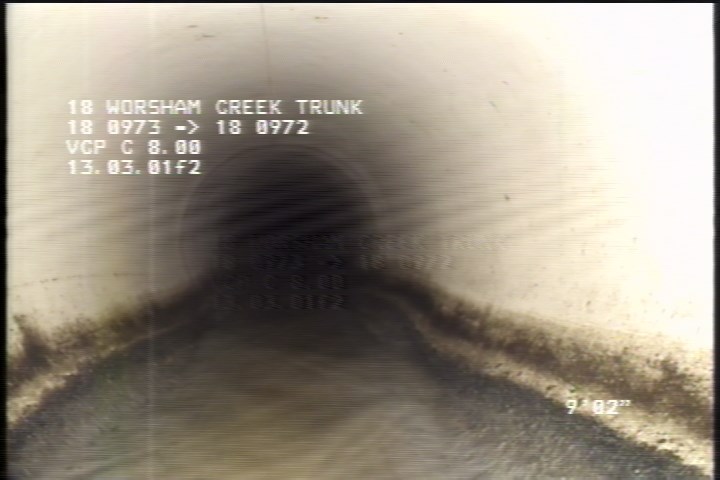

9.2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

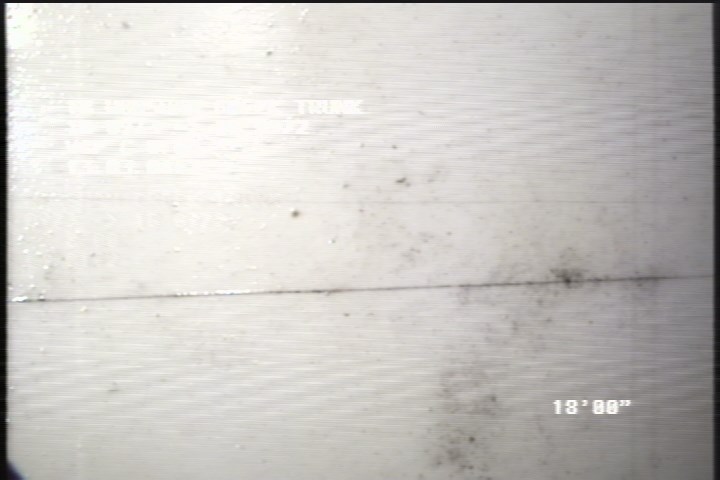

18 ft. - General Observation - SEAM/POSSIBLE CRACK AT 12 O'CLOCK
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 18 | MGO | SEAM/POSSIBLE CRACK AT 12 O'CLOCK |
| 0 | MGO | ROACHES @ MH |
| 0 | MGO | ACTIVE CONNECTION 9 O'CLOCK @ MH |
| 0 | MWL | — |
| 0 | AMH | 11:25 AM |
| 0 | MWM | — |
| 9.2 | DAGS | — |
Properties (6)
- additional_info
- U-0618-0703002249/POST ROOT EVALUATION
- customer
- LACSD
- datetime
- 2019-07-08T10:59:06-07:00
- documentation
- BRAR, FRANKLIN, RUVALCABA
- is_lateral_inspection
- false
- lining
- PVCP FOLDED REFORMED
