Wastewater/Activity/PacpInspection/1.0Jul 5, 2019, 04:39 PM
18 0614_18 0918_752019_094421.mp4
- Date
- 07/05/2019
- W/O
- 0771944
- Weather
- Dry
- Operator/Surveyor
- SANTIAGO OBREGON
- Sewer ID
- Z00692
- PipeID
- P14464
- Time
- 9:39 AM
- Certificate
- U-1014-06022541
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G8019
- Sewer Name
- 18 NORTH PLANT OUTFALL RELIEF TRUNK
- City
- WHITTIER
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 20
- Purpose
- Capital Improvement Program Assesment
- Project
- 20190705SHO_NORTH_PLANT_OUTFALL_RELIEF_TRUNK
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 33 in.
- Upstream MH
- 18 0614
- Downstream MH
- 18 0918
- Dir. of Survey
- Downstream
- Length Surveyed
- 432 ft.
- Total Length
- 432 ft.
- Structural Index
- 3
- Structural Quick
- 3221
- Structural Rating
- 8
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (2)

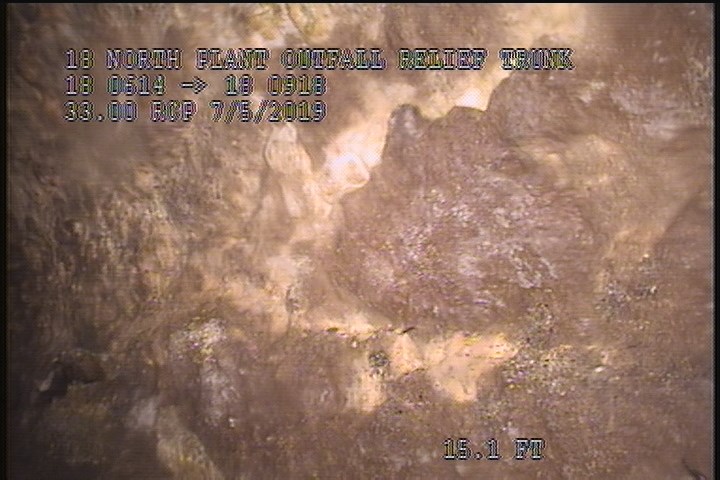

15.1 ft. - Surface Aggregate Visible, from 10 to 02 o'clock, within 8 inches of joint: YES, Start
39.2 ft. - Surface Aggregate Projecting, from 08 to 10 o'clock, within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 431.8 | SAV | — |
| 432 | AMH | MH 918 |
| 0 | AMH | MH 614 |
| 9 | TFA | — |
| 39.2 | SAP | — |
| 15.1 | SAV | — |
| 0 | MWM | — |
| 432 | SSS | — |
| 0 | MWL | — |
| 2 | SSS | — |
| 100 | SAP | — |
Properties (5)
- additional_info
- RFIR
- customer
- LACSD
- datetime
- 2019-07-05T09:39:03-07:00
- documentation
- OBREGON, IGNACIO, YOUNG, BRAR
- is_lateral_inspection
- false
