Wastewater/Activity/PacpInspection/1.0Jul 5, 2019, 07:06 PM
H 0338_H 0337_752019_123641.mp4
- Date
- 07/05/2019
- W/O
- 0776935
- Weather
- Dry
- Operator/Surveyor
- SANTIAGO OBREGON
- Sewer ID
- Z00175
- PipeID
- P10788
- Time
- 12:06 PM
- Certificate
- U-1014-06022541
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G8020
- Sewer Name
- H JOINT OUTFALL H - UNIT 4
- City
- PICO RIVERA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 19A
- Purpose
- Capital Improvement Program Assesment
- Project
- 20190705SHO_JOINT_OUTFALL_H_UNIT_4
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 63 in.
- Upstream MH
- H 0338
- Downstream MH
- H 0337
- Dir. of Survey
- Downstream
- Length Surveyed
- 2 ft.
- Total Length
- 2 ft.
- Structural Index
- 4
- Structural Quick
- 5131
- Structural Rating
- 8
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (2)

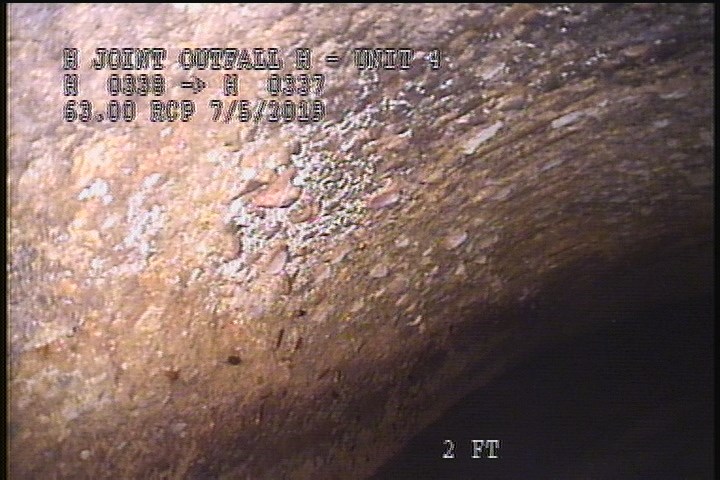

2 ft. - Surface Aggregate Projecting, from 10 to 02 o'clock, within 8 inches of joint: YES

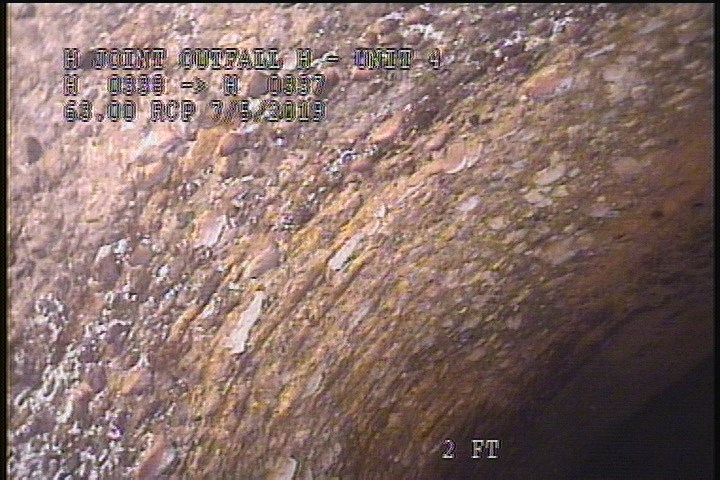

2 ft. - Surface Reinforcement Visible, at 12 o'clock, within 8 inches of joint: NO
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | SIPHON INSPECTION |
| 0 | MWL | — |
| 2 | SAP | — |
| 0 | MWM | — |
| 2 | MSA | VIEW OF THE DOWNLEG OF THE SIPHON |
| 2 | SRV | — |
Properties (7)
- additional_info
- RFIR, DOWNLEG OF THE SIPHON
- custom_field_three
- REBAR VISIBLE
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-07-05T12:06:27-07:00
- documentation
- OBREGON, YOUNG, BRAR, IGNACIO
- is_lateral_inspection
- false
