Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 2, 2019, 05:01 PM

  • H 0706_H 0705_722019_100343.mp4

Date
07/02/2019
W/O
0772128
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00941
PipeID
P11113
Time
10:01 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G8016
Sewer Name
H JOINT OUTFALL H - UNIT 9B
City
INDUSTRY
Loc. details
Other
Location Code
Z
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
33
Purpose
Routine Assessment
Project
20190702DF_JOINT_OUTFALL_H_UNIT_9B
Material
NRCP
Shape
Circular
Height
25 in.
Upstream MH
H 0706
Downstream MH
H 0705
Dir. of Survey
Downstream
Length Surveyed
634 ft.
Total Length
634 ft.
Structural Index
3
Structural Quick
5131
Structural Rating
10
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
10
Pipe schematic from manhole H 0706 to H 0705
MH: H 0706MH: H 0705downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 10:02 AM0 ft. MWM - Water Mark, 20 %of cross sectional area1.9 ft. MGO - General Observation - VIEW FROM D/S MH (H0705) LOOKING U/S2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 65% MAG77.9 ft. MGP - General Photograph117.6 ft. MGP - General Photograph238.9 ft. MWM - Water Mark, 30 %of cross sectional area238.9 ft. MWL - Water Level, 25 %of cross sectional area410.9 ft. MGP - General Photograph627 ft. MGO - General Observation - Grease Throughout The Reach (5%)627 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 65% MAG627 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish627 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish627 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish634 ft. AMH - Downstream Manhole, Survey Ends - 11:35 AM

Observation photos (5)

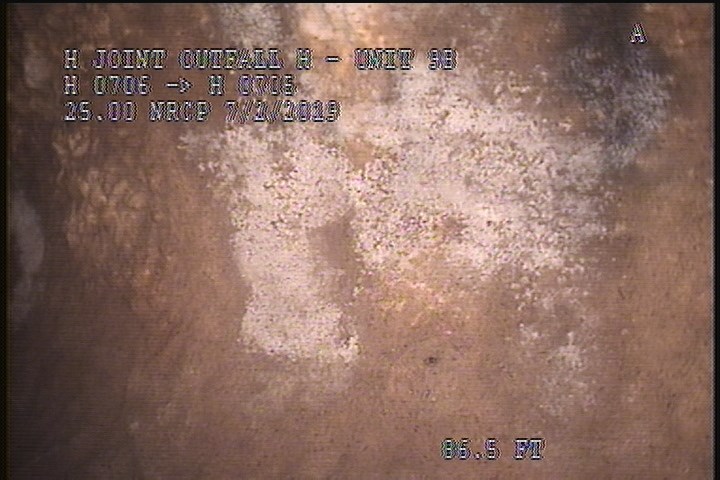

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

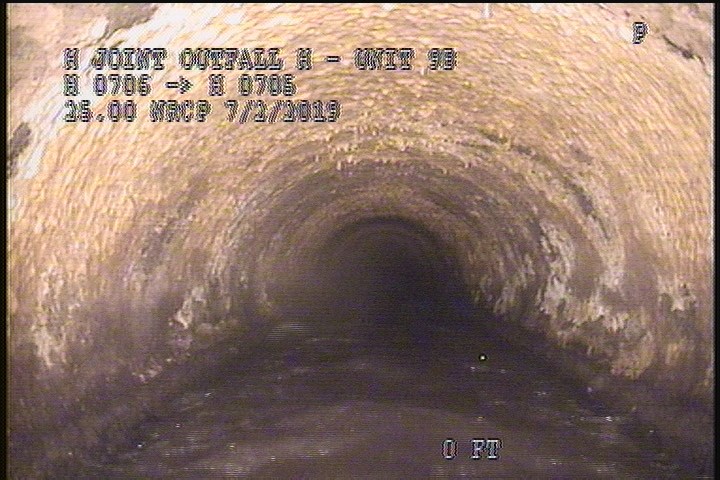

  • Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 65% MAG

    2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 65% MAG

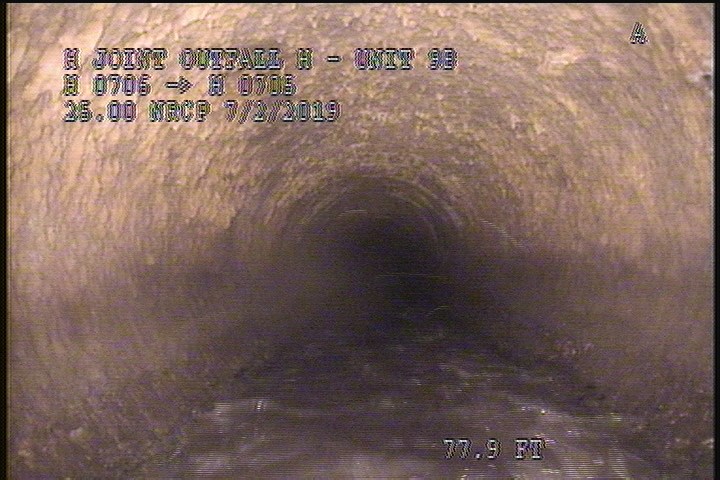

  • General Photograph

    77.9 ft. - General Photograph

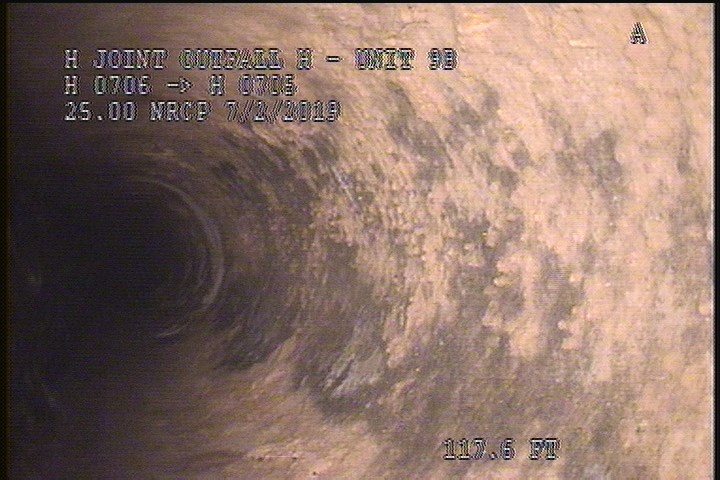

  • General Photograph

    117.6 ft. - General Photograph

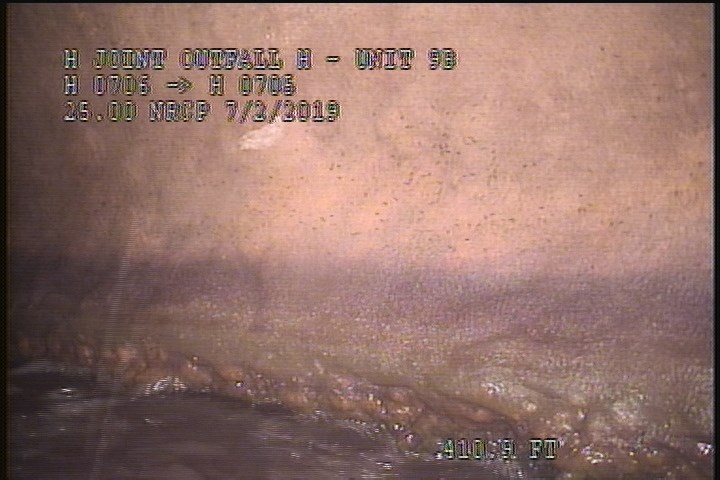

  • General Photograph

    410.9 ft. - General Photograph

All inspections of P11113Work order 0772128

Observations (19)

DistanceCodeObservation
410.9MGP—
627MGOGrease Throughout The Reach (5%)
2SAV—
1.9MGOVIEW FROM D/S MH (H0705) LOOKING U/S
2SSS—
77.9MGP—
0MWL—
627SZ65% MAG
0AMH10:02 AM
627SSS—
2SRV—
238.9MWM—
2SZ65% MAG
627SRV—
627SAV—
0MWM—
634AMH11:35 AM
117.6MGP—
238.9MWL—

Properties (5)

custom_field_two
3
customer
LACSD
datetime
2019-07-02T10:01:31-07:00
documentation
FRANKLIN, CASTILLO, IGNACIO
is_lateral_inspection
false
