Date
08/23/2017
W/O
651582
Weather
Dry
Operator/Surveyor
JUAN B
Sewer ID
Z00707
PipeID
P14680
Time
10:14 PM
Certificate
U-715-07000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K4697
Sewer Name
18 SO WHITTIER OUTFALL TR, SECT 5
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
20
Purpose
Routine Assessment
Project
WO_651582_TV18113_AUG2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
18 0817
Downstream MH
18 0816
Dir. of Survey
Downstream
Length Surveyed
215.6 ft.
Total Length
215.6 ft.
Structural Index
4
Structural Quick
4131
Structural Rating
7
O&M Index
2
O&M Quick
4124
O&M Rating
12
Overall Index
3
Overall Quick
—
Overall Rating
19
Pipe schematic from manhole 18 0817 to 18 0816
MH: 18 0817MH: 18 0816downstream0 ft. MWM - Water Mark, 60 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT 3 OC0 ft. MWL - Water Level, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 18 08172.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start3.8 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start24.6 ft. TBC - Tap Break-In Capped, at 03 o'clock, -, within 8 inches of joint: NO, 4"28.2 ft. TB - Tap Break-In, at 09 o'clock, -, within 8 inches of joint: NO, 4"51.4 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start51.4 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish76.4 ft. TBC - Tap Break-In Capped, at 03 o'clock, -, within 8 inches of joint: NO, 4"85.3 ft. TB - Tap Break-In, at 09 o'clock, -, within 8 inches of joint: NO, 4"124.1 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 4"147.8 ft. TB - Tap Break-In, at 09 o'clock, -, within 8 inches of joint: NO, 4"171.7 ft. TBC - Tap Break-In Capped, at 03 o'clock, -, within 8 inches of joint: NO, 4"215.6 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish215.6 ft. AMH - Downstream Manhole, Survey Ends - 18 0816215.6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish

Observation photos (3)

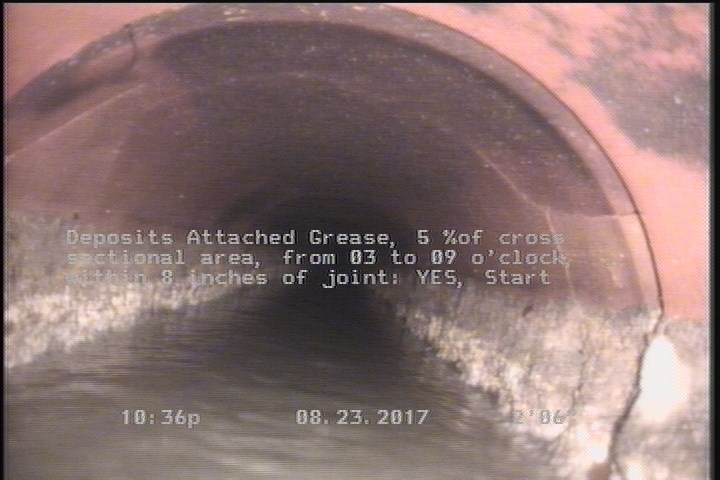

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    3.8 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    51.4 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P14680Work order 651582

Observations (18)

DistanceCodeObservation
51.4FM—
85.3TB—
124.1TFC—
215.6FM—
147.8TB—
0MWM—
0MGOCONNECTION AT 3 OC
0MWL—
51.4CM—
76.4TBC—
2.5DAGS—
171.7TBC—
3.8CM—
0AMH18 0817
215.6AMH18 0816
215.6DAGS—
28.2TB—
24.6TBC—

Properties (6)

additional_info
SC345636
custom_field_two
3
customer
LACSD
datetime
2017-08-23T22:14:41-07:00
documentation
PROPIPE
is_lateral_inspection
false
