Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 26, 2017, 11:50 PM

  • 18 0826_18 0825 _30082017_161324.mp4

Date
07/26/2017
W/O
651582
Weather
Dry
Operator/Surveyor
COREY D
Sewer ID
Z00707
PipeID
P14689
Time
4:50 PM
Certificate
U-912-159863
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K4783
Sewer Name
18 SO WHITTIER OUTFALL TR, SECT 5
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
20
Purpose
Routine Assessment
Project
WO_651582_TV18113_AUG2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
18 0826
Downstream MH
18 0825
Dir. of Survey
Downstream
Length Surveyed
237.4 ft.
Total Length
237.4 ft.
Structural Index
3
Structural Quick
3H00
Structural Rating
132
O&M Index
2
O&M Quick
2H00
O&M Rating
94
Overall Index
2
Overall Quick
—
Overall Rating
226
Pipe schematic from manhole 18 0826 to 18 0825
MH: 18 0826MH: 18 0825downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 18 08260 ft. MGO - General Observation - CONNECTION AT MH2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start21.1 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start21.1 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES33.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"34.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"65 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4"68.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"111.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"114.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"163.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4"166.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"212.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"215.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"237 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish237 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish237.1 ft. MGO - General Observation - CONNECTION AT MH237.4 ft. AMH - Downstream Manhole, Survey Ends - 18 0825

Observation photos (3)

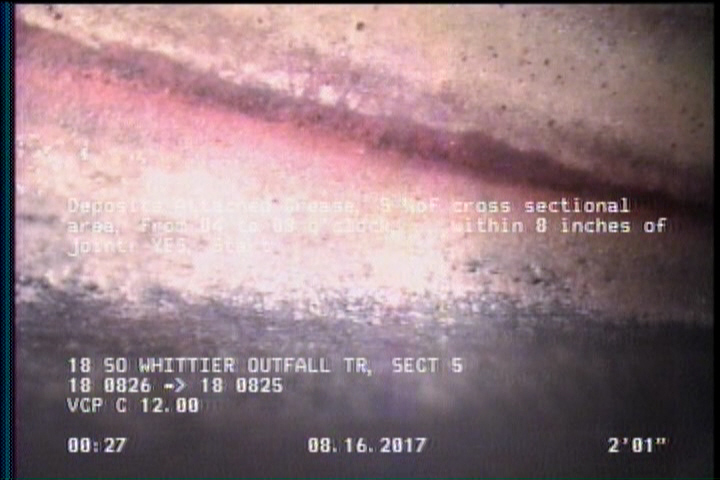

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

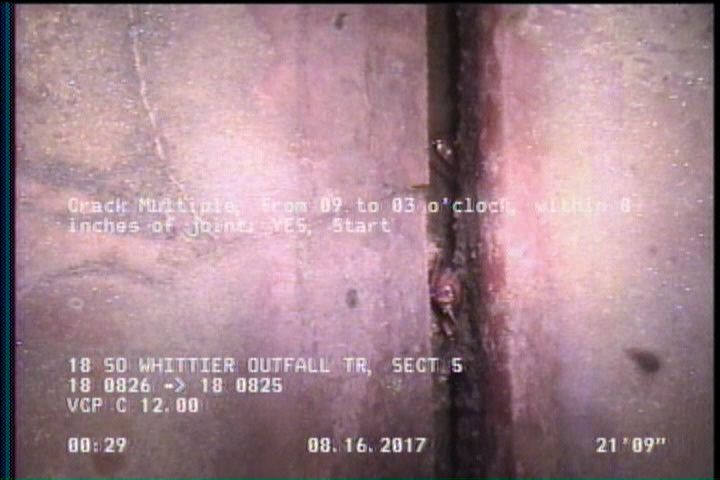

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    21.1 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

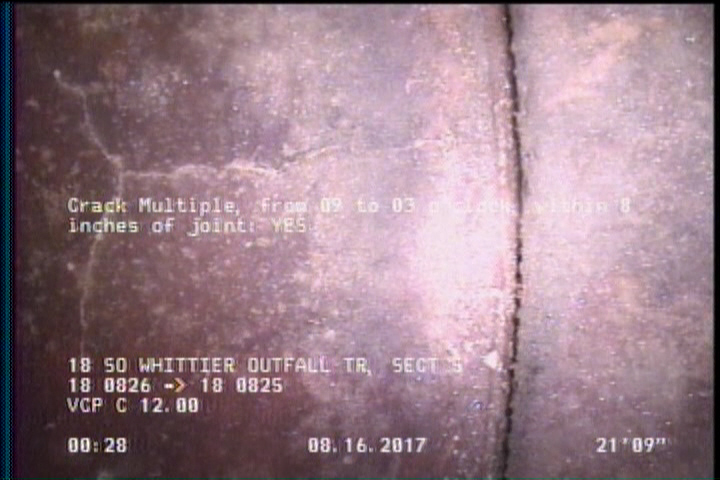

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    21.1 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

All inspections of P14689Work order 651582

Observations (21)

DistanceCodeObservation
163.1TF—
111.1TFC—
237DAGS—
65TF—
237.4AMH18 0825
114.1TFC—
33.1TFC—
237.1MGOCONNECTION AT MH
215.1TFC—
68.1TFC—
21.1CM—
0MWM—
21.1CM—
2DAGS—
0MWL—
0AMH18 0826
237CM—
34.1TFC—
0MGOCONNECTION AT MH
212.1TFC—
166.1TFC—

Properties (6)

additional_info
SC344613
custom_field_two
3
customer
LACSD
datetime
2017-07-26T16:50:44-07:00
documentation
PROPIPE
is_lateral_inspection
false
