Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 12, 2017, 08:41 AM

  • 05 2635_05 2634_1122017_012919.mp4

Date
01/12/2017
W/O
0616828
Weather
Light Rain
Operator/Surveyor
MARTIN
Sewer ID
Z01146
PipeID
P25735
Time
12:41 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0393
Sewer Name
05 PALOS VERDES NORTH SLOPE REPLACEMENT TRUNK, SECT 1A
City
PALOS VERDES
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
35
Purpose
Capital Improvement Program Assesment
Project
20170112MDM_PALOS_VERDES_NORTH_SLOPE_REPLACEMENT_TRUNK_SECT_1A
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Upstream MH
05 2634
Downstream MH
05 2635
Dir. of Survey
Upstream
Length Surveyed
3 ft.
Total Length
3 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole 05 2634 to 05 2635
MH: 05 2634MH: 05 2635upstream0 ft. AMH - Downstream Manhole, Survey Ends - 1:40AM1 ft. MGO - General Observation - VEIW DOWNSTREAM ZOOM1 ft. MGO - General Observation - VEIW UPSTREAM1 ft. MGO - General Observation - VEIW DOWNSTREAM1 ft. MGO - General Observation - VEIW UPSTREAM ZOOM2 ft. MGO - General Observation - NO CONN IN MH3 ft. AMH - Downstream Manhole, Survey Begins - 1:20AM3 ft. MWM - Water Mark, 20 %of cross sectional area3 ft. MWL - Water Level, 10 %of cross sectional area

Observation photos (4)

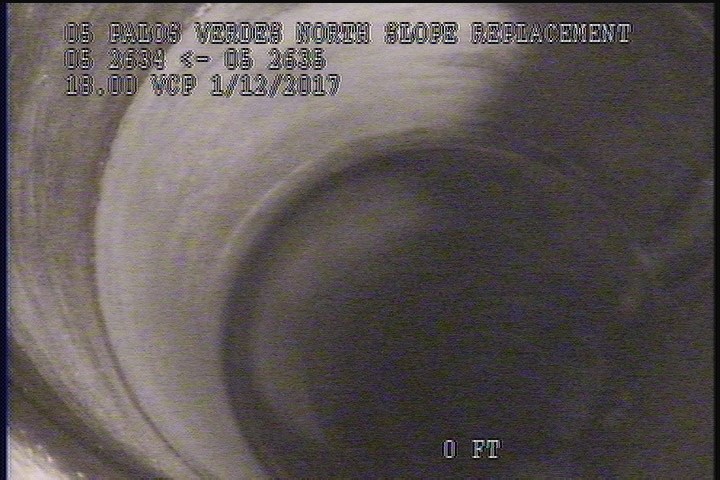

  • General Observation - VEIW DOWNSTREAM ZOOM

    2 ft. - General Observation - VEIW DOWNSTREAM ZOOM

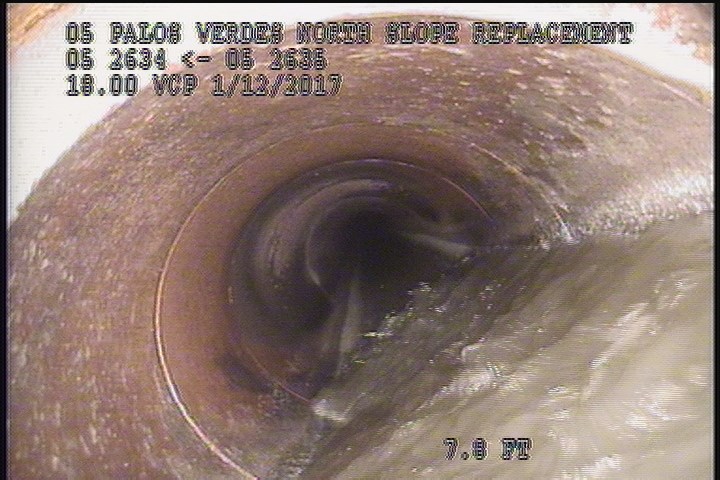

  • General Observation - VEIW UPSTREAM

    2 ft. - General Observation - VEIW UPSTREAM

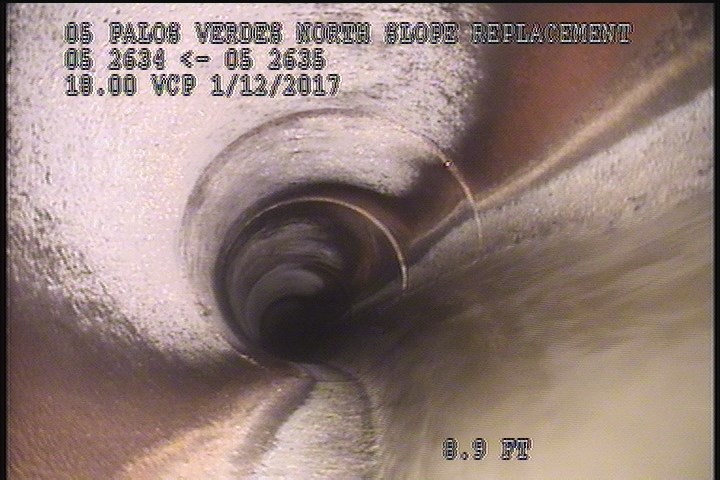

  • General Observation - VEIW DOWNSTREAM

    2 ft. - General Observation - VEIW DOWNSTREAM

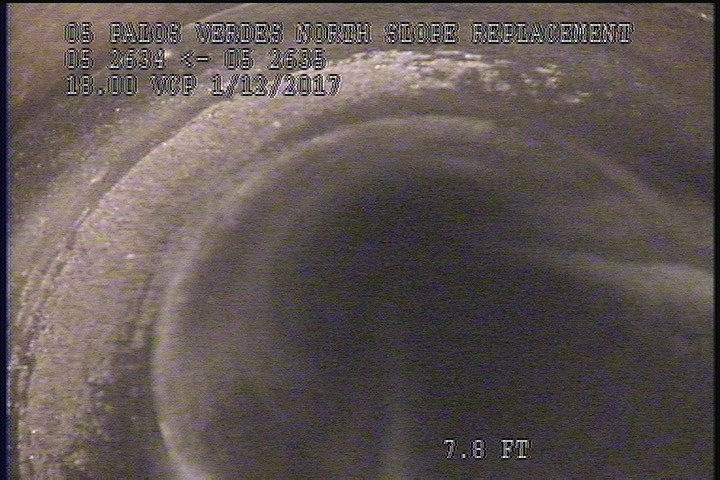

  • General Observation - VEIW UPSTREAM ZOOM

    2 ft. - General Observation - VEIW UPSTREAM ZOOM

All inspections of P25735Work order 0616828

Observations (9)

DistanceCodeObservation
2MGOVEIW DOWNSTREAM ZOOM
0AMH1:20AM
0MWM—
1MGONO CONN IN MH
2MGOVEIW UPSTREAM
0MWL—
2MGOVEIW DOWNSTREAM
2MGOVEIW UPSTREAM ZOOM
3AMH1:40AM

Properties (5)

additional_info
VEIW UPSTREAM-DOWNSTREAM ONLY
customer
LACSD
datetime
2017-01-12T00:41:06-08:00
documentation
MARTIN,MANANES,OLIVER 111
is_lateral_inspection
false
