Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 6, 2017, 11:15 AM

  • B 0428_B 0427_162017_041817.mp4

Date
01/06/2017
W/O
0607729
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00092
PipeID
P08940
Time
3:15 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0384
Sewer Name
B JOINT OUTFALL B - UNIT 5B
City
PASADENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
03
Purpose
Routine Assessment
Project
20170106MDM_JOINT_OUTFALL_B_UNIT_5B
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Upstream MH
B 0428
Downstream MH
B 0427
Dir. of Survey
Downstream
Length Surveyed
394.8 ft.
Total Length
394.8 ft.
Structural Index
2
Structural Quick
332F
Structural Rating
83
O&M Index
2
O&M Quick
3122
O&M Rating
10
Overall Index
2
Overall Quick
—
Overall Rating
93
Pipe schematic from manhole B 0428 to B 0427
MH: B 0428MH: B 0427downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 4:15AM0 ft. MWL - Water Level, 10 %of cross sectional area7.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open10.4 ft. TFD - Tap Factory Made Defective, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open-70% ROOTS10.4 ft. RML - Roots Medium Lateral, from 08 to 11 o'clock, 20 %, within 8 inches of joint: YES20.3 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - HAIRLINE20.3 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - SLIGHT32.7 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SL48.5 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - SL65.1 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - SL65.1 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - SL69.3 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES - H78.7 ft. TFD - Tap Factory Made Defective, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open-80% BLOCKAGE80.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open82.5 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - SL82.5 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - SL86.4 ft. FC - Fracture Circumferential, from 11 to 02 o'clock, within 8 inches of joint: YES - SL98.3 ft. FC - Fracture Circumferential, from 10 to 01 o'clock, within 8 inches of joint: YES - SL110.8 ft. FC - Fracture Circumferential, from 01 to 02 o'clock, within 8 inches of joint: YES - H118.4 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - H122.9 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - H123.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open134.6 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open149.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped162.9 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - SL162.9 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - SL162.9 ft. FC - Fracture Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES - H183.6 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES - SL191.7 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - SL192.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped193.4 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - H193.4 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - SL198.1 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - H206.5 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - SL206.5 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - SL218.9 ft. RFJ - Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YESR - 3%226.5 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - H226.5 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR - 3%248.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped250.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open251.7 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - H272.7 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - SL272.7 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - SL276.9 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H281.1 ft. FC - Fracture Circumferential, from 08 to 11 o'clock, within 8 inches of joint: YES - SL285.1 ft. FC - Fracture Circumferential, from 08 to 02 o'clock, within 8 inches of joint: YES - SL294.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped295.8 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - SL300.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open314.6 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - SL322.8 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - SL331.5 ft. FC - Fracture Circumferential, from 11 to 02 o'clock, within 8 inches of joint: YES - H331.5 ft. RFJ - Roots Fine Joint, from 08 to 12 o'clock, within 8 inches of joint: YESR - 4%339.4 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - H351.2 ft. FC - Fracture Circumferential, from 01 to 03 o'clock, within 8 inches of joint: YES - H359.4 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - SL364.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open366.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped389.2 ft. FC - Fracture Circumferential, from 11 to 12 o'clock, within 8 inches of joint: YES - H389.2 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - SL394.4 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active394.8 ft. AMH - Downstream Manhole, Survey Ends - 5:15AM

Observation photos (1)

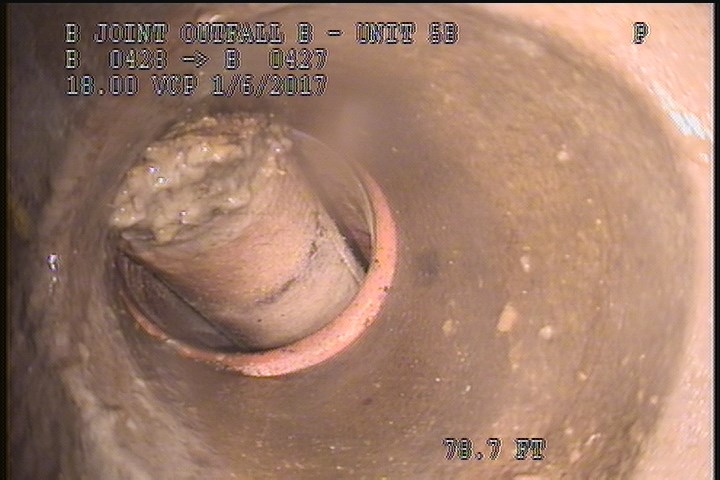

  • Tap Factory Made Defective, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open-80% BLOCKAGE

    78.7 ft. - Tap Factory Made Defective, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open-80% BLOCKAGE

All inspections of P08940Work order 0607729

Observations (63)

DistanceCodeObservation
206.5FCSL
251.7FCH
0MWM—
118.4FCH
322.8FCSL
272.7FCSL
122.9FCH
80.9TFOpen
162.9FCSL
192.6TFCCapped
0AMH4:15AM
193.4FCH
198.1FCH
226.5FLH
7.8TFOpen
149.8TFCCapped
285.1FCSL
110.8FCH
0MWL—
250.7TFOpen
65.1FCSL
32.7FCSL
389.2FCH
218.9RFJ3%
86.4FCSL
394.8AMH5:15AM
331.5FCH
364.9TFOpen
281.1FCSL
20.3FCHAIRLINE
276.9FLH
65.1FCSL
82.5FCSL
359.4FCSL
48.5FCSL
226.5RFJ3%
69.3FLH
300.8TFOpen
191.7FCSL
366.6TFCCapped
351.2FCH
206.5FCSL
134.6TFOpen
183.6FCSL
339.4FCH
10.4TFDOpen-70% ROOTS
272.7FCSL
20.3FCSLIGHT
10.4RML—
294.6TFCCapped
193.4FCSL
394.4MGOConn. @ Mh, 9 O' Clock. Active
331.5RFJ4%
248.7TFCCapped
314.6FCSL
82.5FCSL
123.9TFOpen
162.9FCSL
162.9FCH
98.3FCSL
295.8FCSL
78.7TFDOpen-80% BLOCKAGE
389.2FCSL

Properties (6)

custom_field_three
SLIGHT FRCATURES
custom_field_two
3
customer
LACSD
datetime
2017-01-06T03:15:12-08:00
documentation
MARTIN,REVELES,OLIVER 111
is_lateral_inspection
false
