Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 11, 2017, 10:27 AM

  • 18 0933_18 0932 __081117_032848.mp4

Date
08/11/2017
W/O
646328
Weather
Dry
Operator/Surveyor
JUAN B
Sewer ID
Z00700
PipeID
P14781
Time
3:27 AM
Certificate
U-715-07000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K4684
Sewer Name
18 SCOTT AVENUE TRUNK
City
WHITTIER
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
21
Purpose
Routine Assessment
Project
WO_646328_TV18118_JUL2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
18 0933
Downstream MH
18 0932
Dir. of Survey
Downstream
Length Surveyed
84.3 ft.
Total Length
84.3 ft.
Structural Index
4
Structural Quick
5141
Structural Rating
12
O&M Index
3
O&M Quick
4121
O&M Rating
6
Overall Index
4
Overall Quick
—
Overall Rating
18
Pipe schematic from manhole 18 0933 to 18 0932
MH: 18 0933MH: 18 0932downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 18 09332.1 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES2.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start4.4 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start4.5 ft. B - Broken, from 03 to 05 o'clock, within 8 inches of joint: YES11.8 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 6"20.5 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 6"69.2 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 6"71 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 4"84.3 ft. MGO - General Observation - CONNECTION AT 9 OC84.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish84.3 ft. AMH - Downstream Manhole, Survey Ends - 18 093284.3 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

Observation photos (4)

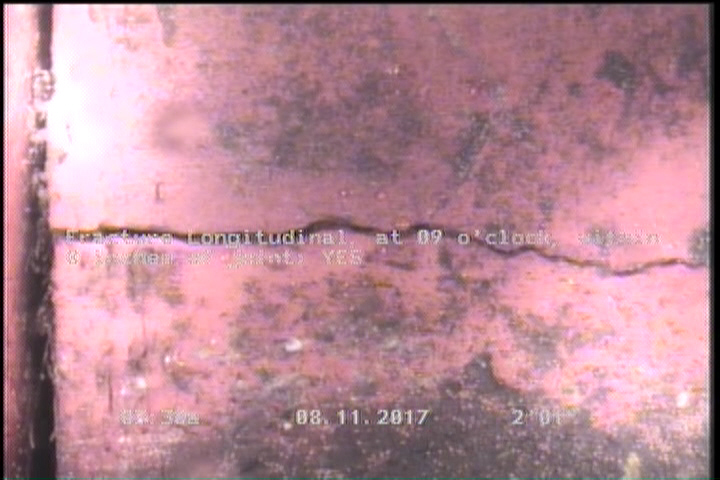

  • Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES

    2.1 ft. - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES

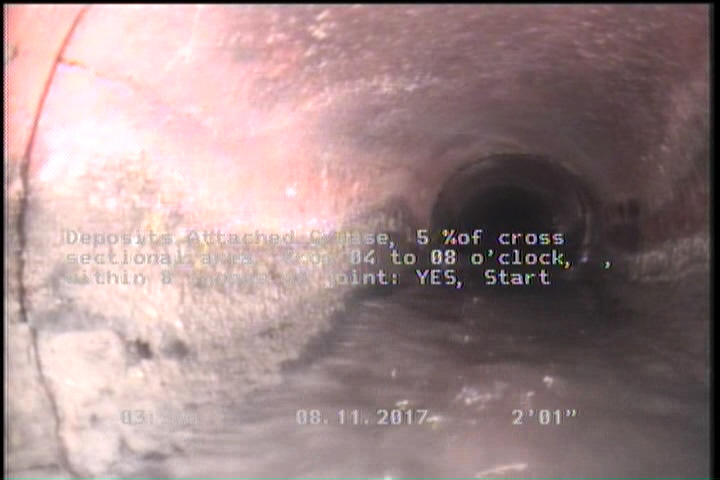

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    4.4 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

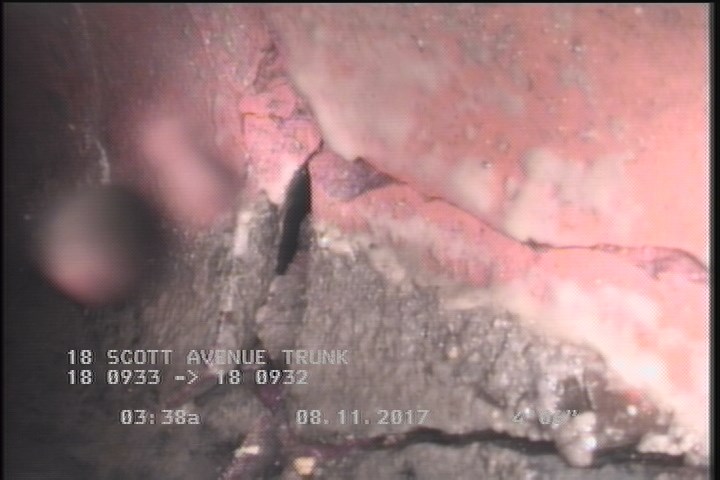

  • Broken, from 03 to 05 o'clock, within 8 inches of joint: YES

    4.5 ft. - Broken, from 03 to 05 o'clock, within 8 inches of joint: YES

All inspections of P14781Work order 646328

Observations (15)

DistanceCodeObservation
84.3MGOCONNECTION AT 9 OC
71TFC—
84.3DAGS—
2.1FL—
69.2TFC—
4.5B—
84.3AMH18 0932
84.3FM—
11.8TFC—
0MWL—
2.1DAGS—
0MWM—
20.5TF—
0AMH18 0933
4.4FM—

Properties (6)

additional_info
SC345623
custom_field_two
3
customer
LACSD
datetime
2017-08-11T03:27:04-07:00
documentation
PROPIPE
is_lateral_inspection
false
