Wastewater/Activity/PacpInspection/1.0Apr 28, 2017, 10:10 AM
H 0790A_H 0790 _20170428_034626.mp4
- Date
- 04/28/2017
- W/O
- 635495
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00942
- PipeID
- P11199
- Time
- 3:10 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4517
- Sewer Name
- H JOINT OUTFALL H - UNIT 9C
- City
- SAN DIMAS
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 22
- Purpose
- Routine Assessment
- Project
- WO_635495_TV22079_MAY2017
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 20 in.
- Width
- 20 in.
- Upstream MH
- H 0790A
- Downstream MH
- H 0790
- Dir. of Survey
- Downstream
- Length Surveyed
- 1486.4 ft.
- Total Length
- 1486.4 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 3
- O&M Quick
- 3100
- O&M Rating
- 3
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (1)

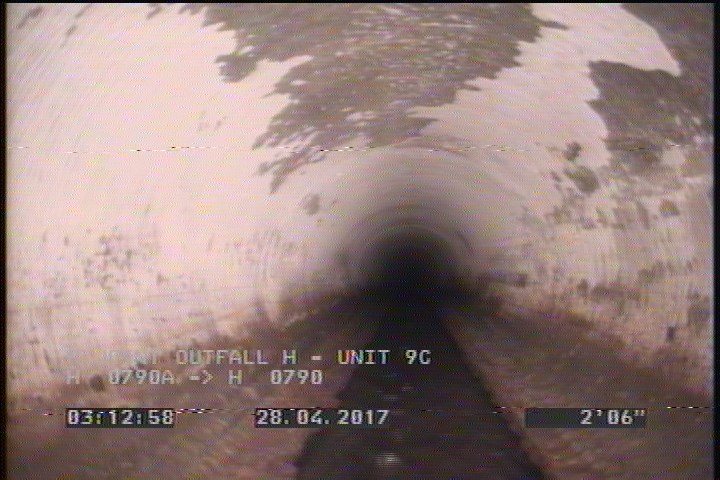

2.5 ft. - Deposits Attached Grease, 15 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 1486.4 | DAGS | — |
| 0 | AMH | H 0790A |
| 0 | MWL | — |
| 1486.4 | MSA | CABLE MAXED OUT |
| 2.5 | DAGS | — |
Properties (6)
- additional_info
- SC340731
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2017-04-28T03:10:40-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
