Wastewater/Activity/PacpInspection/1.0Sep 8, 2017, 08:04 AM
Section#1_29 0414_29 0252__982017__G6818.mp4
- Date
- 09/08/2017
- W/O
- 0658230
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00355
- PipeID
- P24451
- Time
- 1:04 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G6818
- Sewer Name
- 29 LEWIS AVENUE TRUNK
- City
- SIGNAL HILL
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 29
- Page No.
- 03
- Purpose
- Routine Assessment
- Project
- 20170908MDM_LEWIS_AVENUE_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Upstream MH
- 29 0252
- Downstream MH
- 29 0414
- Dir. of Survey
- Upstream
- Length Surveyed
- 8.6 ft.
- Total Length
- 8.6 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (6)

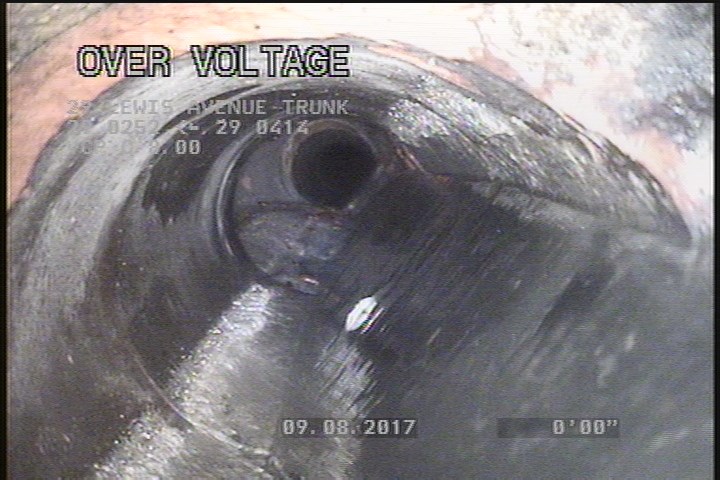

1 ft. - General Observation - ZOOM 8' MH NOT ACESSABLE

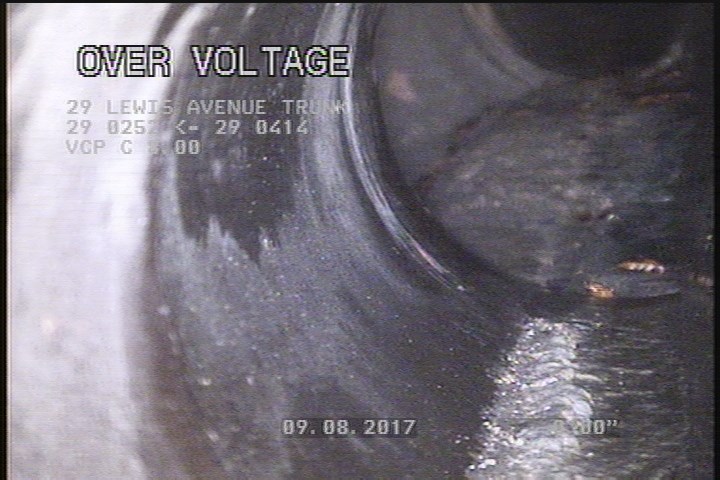

2 ft. - General Observation - 8" VCP

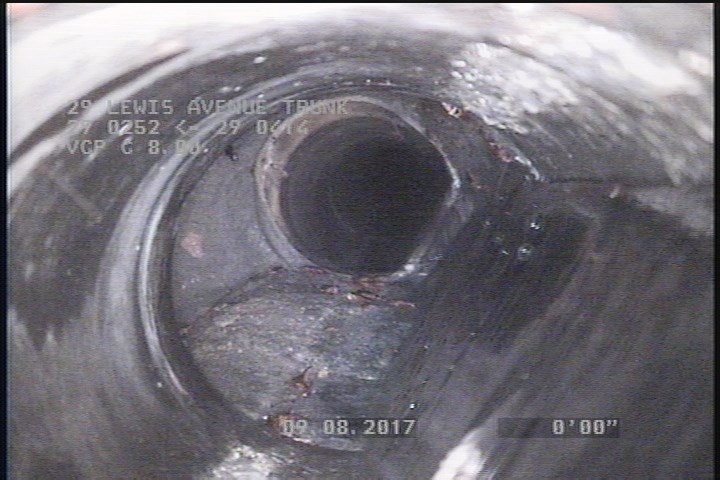

2 ft. - General Observation - 8" VCP

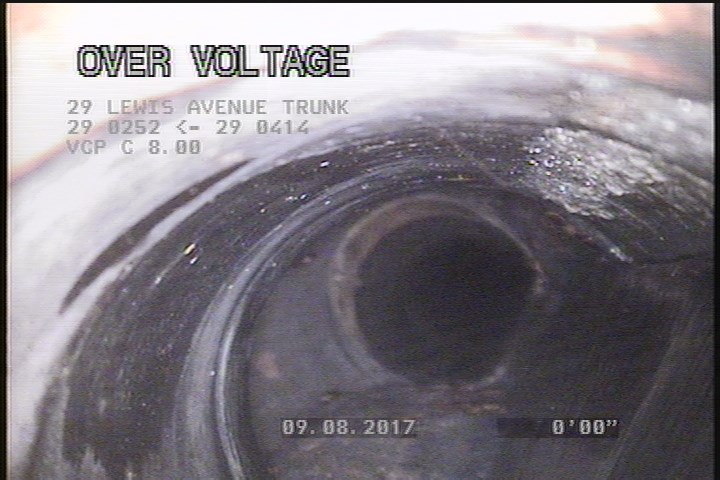

2 ft. - General Observation - 8" VCP

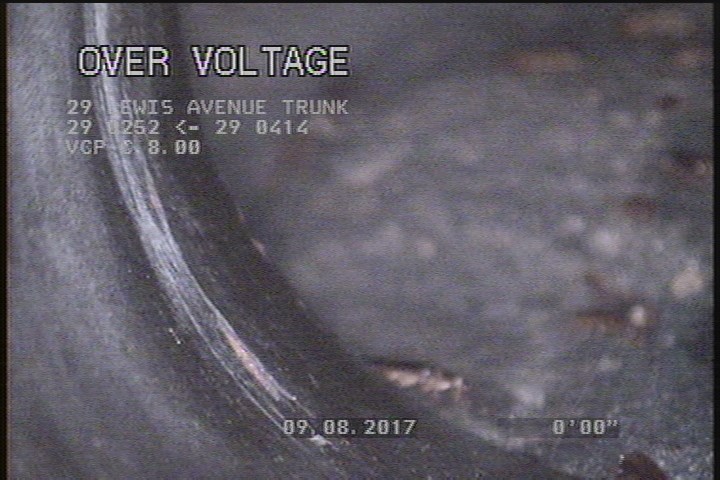

6 ft. - Fracture Circumferential, from 08 to 01 o'clock, within 8 inches of joint: YES - HAIRLINE

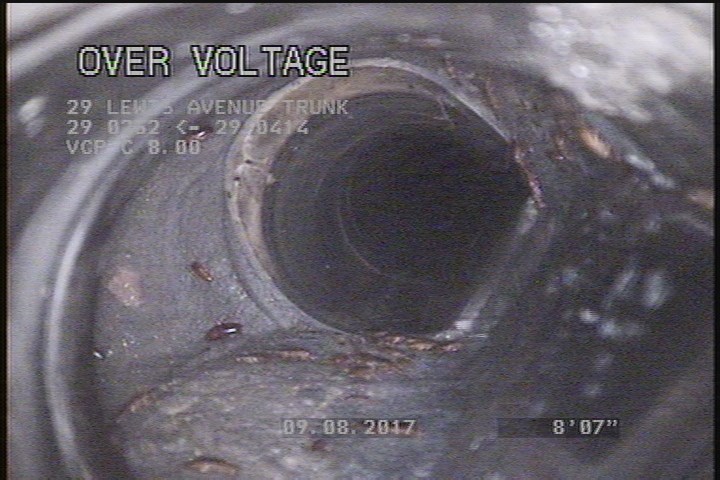

8.6 ft. - Upstream Manhole, Survey Ends - 2:40AM
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 2 | MGO | 8" VCP |
| 0 | AMH | 1:40AM |
| 8.1 | DSZ | SLUDGE |
| 2 | MGO | 8" VCP |
| 0 | MWL | — |
| 1 | MGO | ZOOM 8' MH NOT ACESSABLE |
| 2 | MGO | 8" VCP |
| 8.6 | AMH | 2:40AM |
| 0 | MGO | MH CONN 3:00 ACTIVE INCOMING LINE |
| 2 | DSZ | SLUDGE |
| 6 | FC | HAIRLINE |
| 0 | MWM | — |
Properties (6)
- custom_field_three
- 1 HAIRLINE
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-09-08T01:04:07-07:00
- documentation
- MARTIN,MANANES,REVELES,OLIVER 111
- is_lateral_inspection
- false
