Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 22, 2017, 08:48 AM

  • 01 0413_01 0412_22032017_014920.mpg

Date
03/22/2017
W/O
624632
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00208
PipeID
P00893
Time
1:48 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4395
Sewer Name
01 HOLMES-WILLOWBROOK TRUNK
City
LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
13
Purpose
Routine Assessment
Project
WO_624632_TV01249_MAR2017
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
01 0413
Downstream MH
01 0412
Dir. of Survey
Downstream
Length Surveyed
206.2 ft.
Total Length
206.2 ft.
Structural Index
3
Structural Quick
3G00
Structural Rating
117
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
3
Overall Quick
—
Overall Rating
119
Pipe schematic from manhole 01 0413 to 01 0412
MH: 01 0413MH: 01 0412downstream0 ft. AMH - Upstream Manhole, Survey Begins - 01 04120 ft. MWM - Water Mark, 10 %of cross sectional area0 ft. MWL - Water Level, 5 %of cross sectional area3.1 ft. MGO - General Observation - MAG COAT8.9 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start44.5 ft. TFD - Tap Factory Made Defective, at 10 o'clock, -, within 8 inches of joint: NO, 6" - BROKEN121.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"168.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"202.4 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish206.2 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK206.2 ft. AMH - Downstream Manhole, Survey Ends - 01 0412

Observation photos (2)

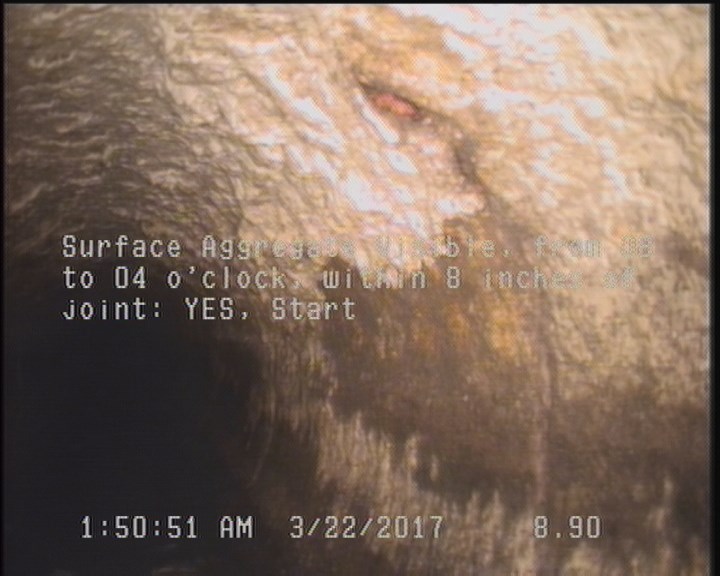

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    8.9 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

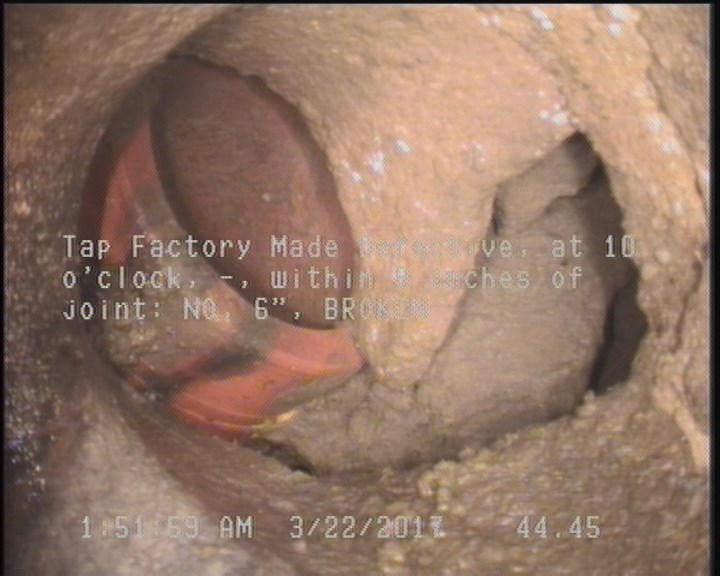

  • Tap Factory Made Defective, at 10 o'clock, -, within 8 inches of joint: NO, 6" - BROKEN

    44.5 ft. - Tap Factory Made Defective, at 10 o'clock, -, within 8 inches of joint: NO, 6" - BROKEN

All inspections of P00893Work order 624632

Observations (11)

DistanceCodeObservation
44.5TFDBROKEN
8.9SAV—
0AMH01 0412
202.4SAV—
121.7TF—
0MWM—
3.1MGOMAG COAT
206.2MGOCONNECTION AT MH 3 O'CLOCK
206.2AMH01 0412
168.9TFC—
0MWL—

Properties (6)

additional_info
SC345154
custom_field_two
3
customer
LACSD
datetime
2017-03-22T01:48:59-07:00
documentation
PROPIPE
is_lateral_inspection
false
