Wastewater/Activity/PacpInspection/1.0Jun 27, 2017, 10:05 AM
15 0121_15 0158 _27062017_031506.mp4
- Date
- 06/27/2017
- W/O
- 624421
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00634
- PipeID
- P12019
- Time
- 3:05 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4594
- Sewer Name
- 15 TYLER AVENUE TRUNK
- City
- EL MONTE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 23
- Purpose
- Routine Assessment
- Project
- WO_624421_TV15037_JUN2017
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 15 0121
- Downstream MH
- 15 0158
- Dir. of Survey
- Downstream
- Length Surveyed
- 94 ft.
- Total Length
- 94 ft.
- Structural Index
- 3
- Structural Quick
- 3C00
- Structural Rating
- 54
- O&M Index
- 2
- O&M Quick
- 312C
- O&M Rating
- 39
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 93
Observation photos (3)

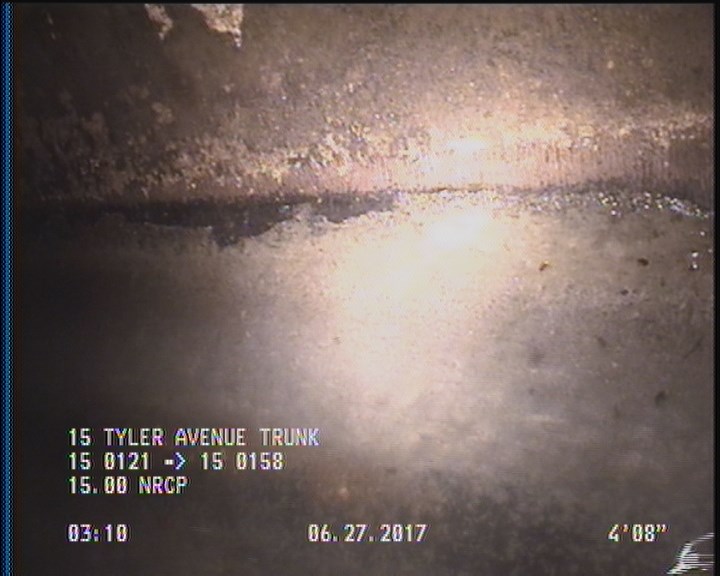

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

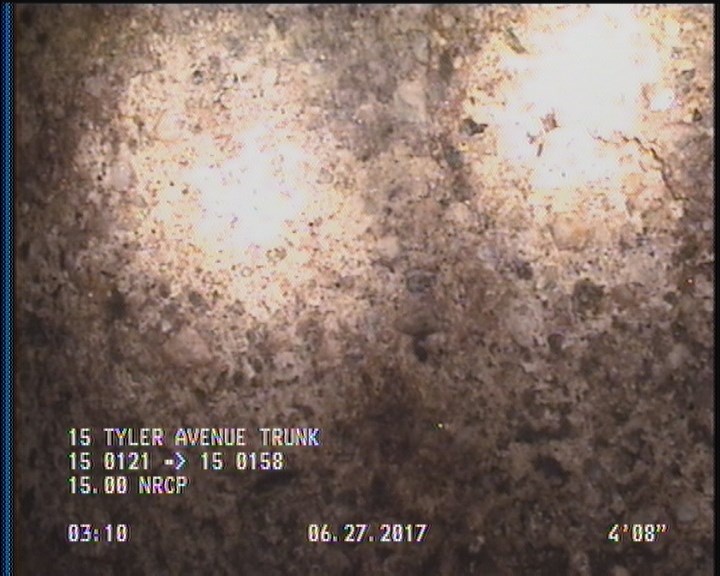

2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

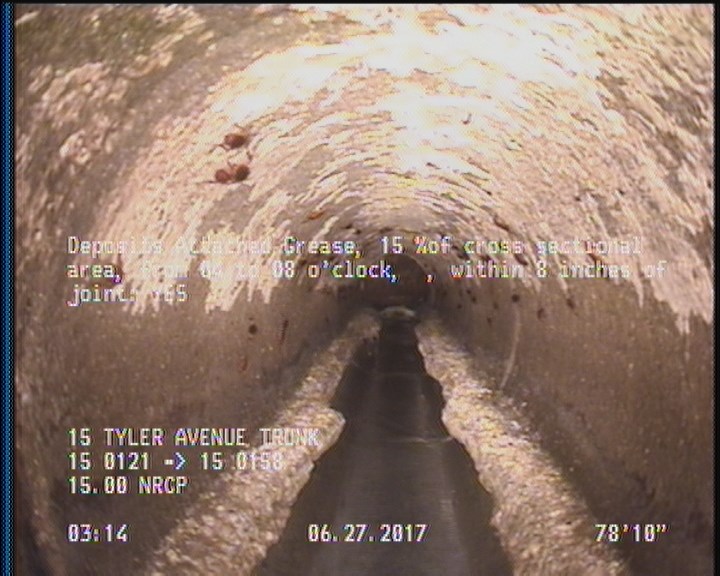

78.8 ft. - Deposits Attached Grease, 15 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 56.7 | TFC | — |
| 78.8 | DAGS | — |
| 2 | DAGS | — |
| 94 | DAGS | — |
| 0 | MWM | — |
| 94 | SAV | — |
| 0 | AMH | 15 0121 |
| 35.8 | TF | — |
| 5.2 | TF | — |
| 0 | MWL | — |
| 94 | AMH | 15 0158 |
| 2 | SAV | — |
| 94 | MGO | COCKROACHES IN MANHOLE |
Properties (6)
- additional_info
- SC345342
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-06-27T03:05:24-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
