Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 1, 2017, 12:05 PM

  • Section#5_18 1025_18 1024__812017__G6787.mp4

Date
08/01/2017
W/O
0653438
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00677
PipeID
P14879
Time
5:05 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Heavy Cleaning
Media Label
G6787
Sewer Name
18 LA HABRA HEIGHTS TRUNK, SECTION 1
City
LA HABRA
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
22
Purpose
Routine Assessment
Project
20170801MDM_LA_HABRA_HEIGHTS_TRUNK_SECTION_1
Material
Vitrified Clay Pipe
Shape
Circular
Height
7.559999942779541 in.
Upstream MH
18 1025
Downstream MH
18 1024
Dir. of Survey
Downstream
Length Surveyed
33.7 ft.
Total Length
33.7 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
4
O&M Quick
5141
O&M Rating
11
Overall Index
4
Overall Quick
—
Overall Rating
11
Pipe schematic from manhole 18 1025 to 18 1024
MH: 18 1025MH: 18 1024downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 5:05AM5.6 ft. MGO - General Observation - 8" VCP - CIPP15.8 ft. MWM - Water Mark, 100 %of cross sectional area15.8 ft. MWL - Water Level, 80 %of cross sectional area25.3 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 11 to 01 o'clock, , within 8 inches of joint: YES30.7 ft. MGO - General Observation - ZOOM 3'30.7 ft. DAGS - Deposits Attached Grease, 25 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO - GREASE AND DEBRIE33.7 ft. AMH - Downstream Manhole, Survey Ends - 515AM

Observation photos (3)

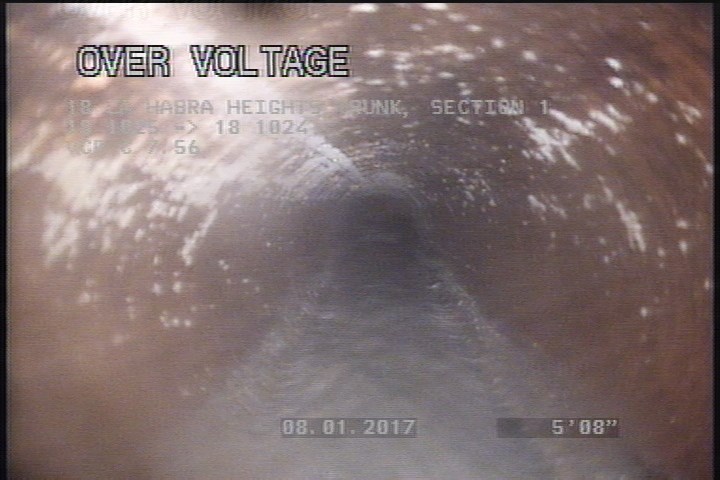

  • General Observation - 8" VCP - CIPP

    5.6 ft. - General Observation - 8" VCP - CIPP

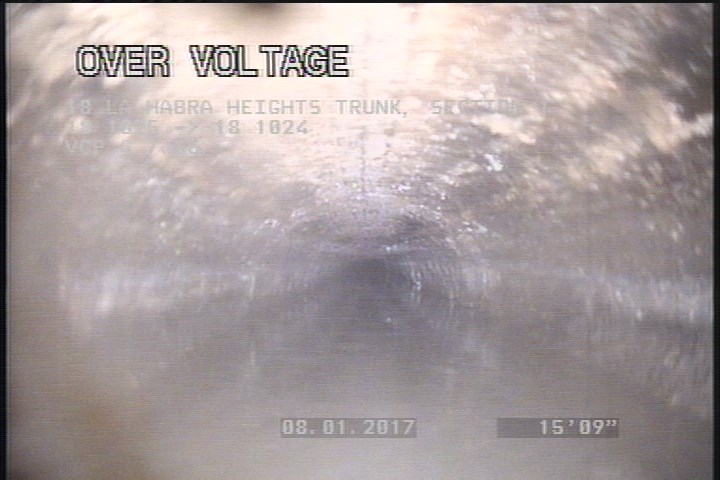

  • Water Mark, 100 %of cross sectional area

    15.8 ft. - Water Mark, 100 %of cross sectional area

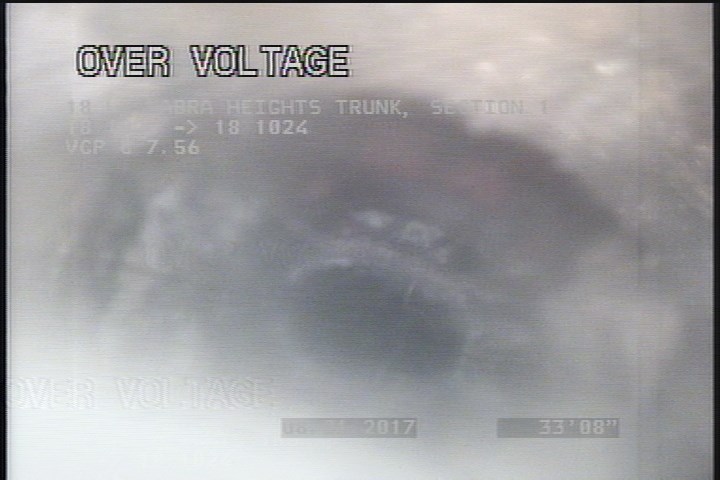

  • General Observation - ZOOM 3'

    30.7 ft. - General Observation - ZOOM 3'

All inspections of P14879Work order 0653438

Observations (10)

DistanceCodeObservation
33.7AMH515AM
5.6MGO8" VCP - CIPP
15.8MWM—
0MWL—
30.7MGOZOOM 3'
30.7DAGSGREASE AND DEBRIE
25.3DAGS—
15.8MWL—
0MWM—
0AMH5:05AM

Properties (7)

custom_field_three
LINER GOOD COND.
custom_field_two
4
customer
LACSD
datetime
2017-08-01T05:05:32-07:00
documentation
MARTIN,MANANES,REVELES
is_lateral_inspection
false
lining
CIPP
