Wastewater/Activity/PacpInspection/1.0Nov 28, 2017, 11:28 AM
C 0395_C 0394A _11282017_032849.mp4
- Date
- 11/28/2017
- W/O
- 674250
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00143
- PipeID
- P09863
- Time
- 3:28 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5231
- Sewer Name
- C JOINT OUTFALL C - UNIT 8E
- City
- CERRITOS
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 19
- Page No.
- 04
- Purpose
- Routine Assessment
- Project
- WO_674250_TV02139_DEC2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- C 0395
- Downstream MH
- C 0394A
- Dir. of Survey
- Downstream
- Length Surveyed
- 318.5 ft.
- Total Length
- 318.5 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 412X
- O&M Rating
- 252
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 252
Observation photos (2)

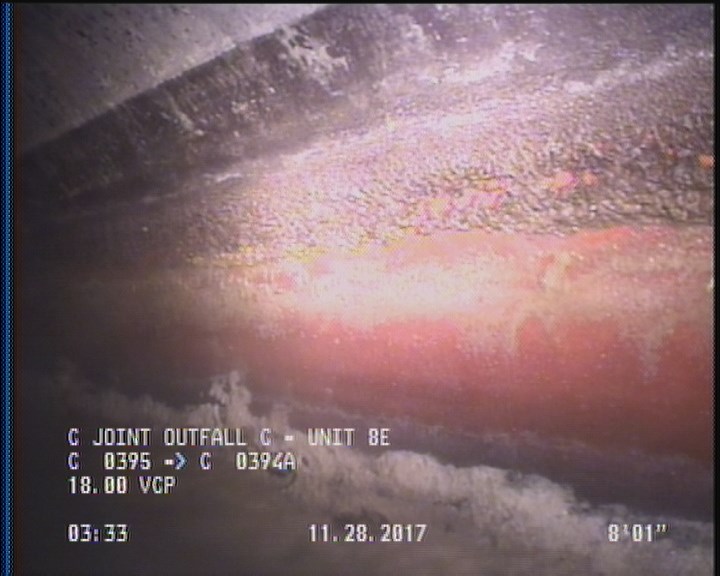

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

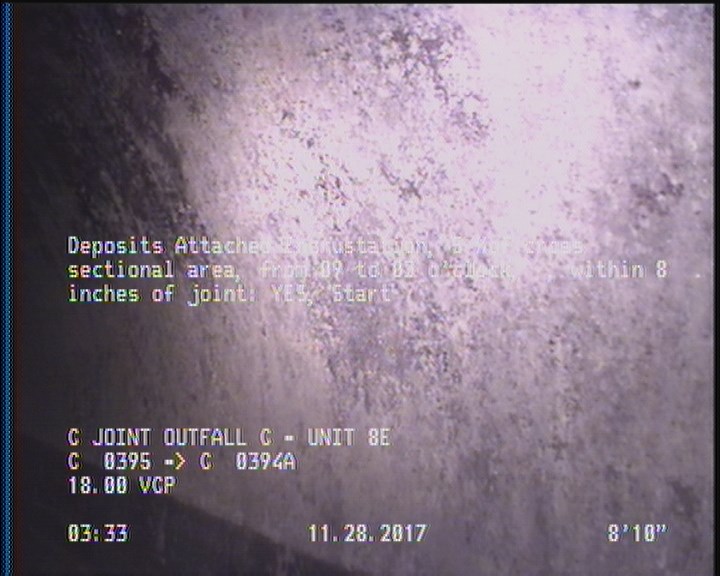

8.9 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 315.6 | DAE | — |
| 318.5 | AMH | C 0394A |
| 19.7 | TBA | — |
| 8.9 | DAE | — |
| 0 | AMH | C 0395 |
| 2 | DAGS | — |
| 0 | MWM | — |
| 315.6 | DAGS | — |
| 0 | MWL | — |
| 184.9 | TBA | — |
| 318.5 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
Properties (7)
- additional_info
- SC346402
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-11-28T03:28:22-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
- year_laid
- 26597
