Wastewater/Activity/PacpInspection/1.0Mar 25, 2016, 08:49 AM
21 0787D_21 0787C_20160325_015614.mp4
- Date
- 03/25/2016
- W/O
- 557615
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00773
- PipeID
- P25943
- Time
- 1:49 AM
- Certificate
- U-507-03-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3236
- Sewer Name
- 21 LA VERNE TRUNK, SECTION 3
- City
- POMONA, CA
- Loc. details
- Parking Lot
- Location Code
- G
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_557615_TV21048_2016MAR
- Sewer Type
- SIPHON
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Upstream MH
- 21 0787D
- Downstream MH
- 21 0787C
- Dir. of Survey
- Downstream
- Length Surveyed
- 63.4 ft.
- Total Length
- 63.4 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (1)

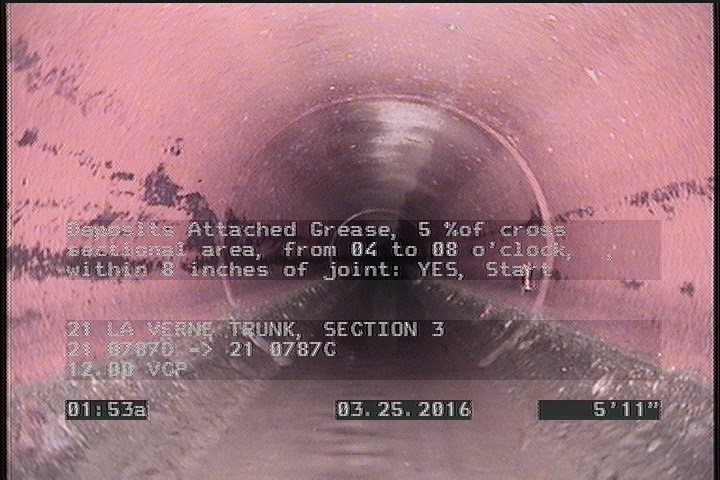

6 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 63.4 | AMH | 21 0787C |
| 0 | MWL | — |
| 63.4 | DAGS | — |
| 0 | MWM | — |
| 0 | AMH | 21 0787D |
| 6 | DAGS | — |
Properties (7)
- additional_info
- SC305327
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-03-25T01:49:50-07:00
- documentation
- PRO-PIPE
- is_lateral_inspection
- false
- year_laid
- 20080502
