Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 24, 2015, 03:36 PM

  • 15 0650_15 0649_20151123_045806.mp4

Date
10/24/2015
W/O
531432
Weather
Dry
Operator/Surveyor
ERU
Sewer ID
Z00606
PipeID
P12922
Time
8:36 AM
Certificate
123456
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K2287
Sewer Name
15 GRAND AVENUE TRUNK
City
SAN GABRIEL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
10
Purpose
Routine Assessment
Project
WO_531423_TV15027_OCT2015
Sewer Type
GRAVITY
Material
NRCP
Shape
Circular
Height
15 in.
Upstream MH
15 0650
Downstream MH
15 0649
Dir. of Survey
Downstream
Length Surveyed
242.3 ft.
Total Length
242.3 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
3
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole 15 0650 to 15 0649
MH: 15 0650MH: 15 0649downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 3 OCLOCK ACTIVE0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 9 OCLOCK ACTIVE0 ft. AMH - Upstream Manhole, Survey Begins - 04456 ft. MGO - General Observation - MAG COAT 40%6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start6 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start38.3 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: YES, 6"47.9 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 6"48.8 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 6"56.4 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 6"72.1 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: YES, 6"74.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"108 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"120.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"165.4 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 6"187.2 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 6"237.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish237.4 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish242.3 ft. AMH - Downstream Manhole, Survey Ends - 0458242.3 ft. MGO - General Observation - CONNECTION AT MH 9 OCLOCK ACTIVE

Observation photos (2)

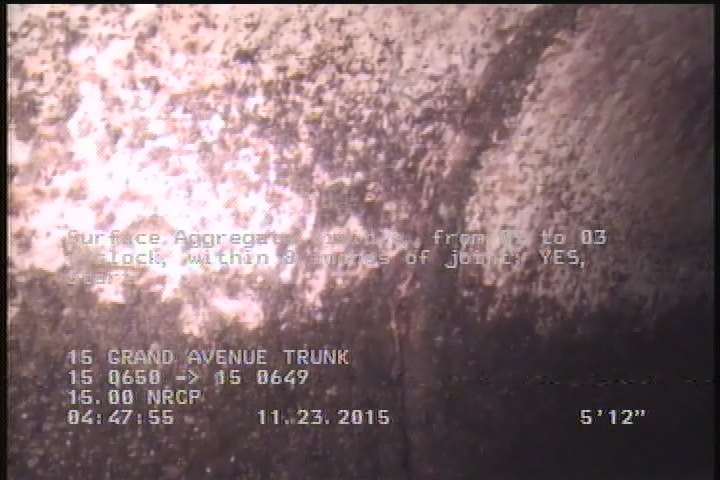

  • Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    6 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

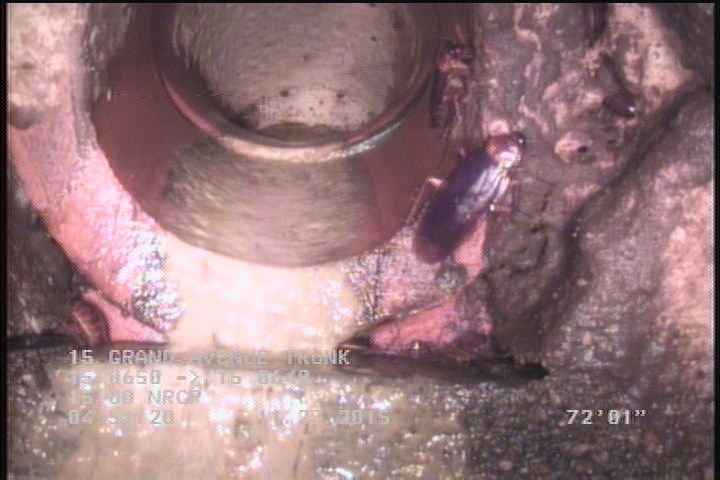

  • Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: YES, 6"

    72.1 ft. - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: YES, 6"

All inspections of P12922Work order 531432

Observations (22)

DistanceCodeObservation
38.3TBA—
0MWL—
0MGOCONNECTION AT MH 3 OCLOCK ACTIVE
165.4TFA—
120.4TFC—
187.2TFA—
6MGOMAG COAT 40%
74.4TFC—
6DAGS—
237.4DAGS—
56.4TFA—
242.3AMH0458
0MWM—
108TFC—
0MGOCONNECTION AT MH 9 OCLOCK ACTIVE
48.8TFA—
47.9TFA—
0AMH0445
242.3MGOCONNECTION AT MH 9 OCLOCK ACTIVE
237.4SAV—
6SAV—
72.1TBA—

Properties (6)

additional_info
SC205369
custom_field_two
3
customer
LACSD
datetime
2015-10-24T08:36:05-07:00
documentation
PROPIPE
is_lateral_inspection
false
