Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 15, 2017, 11:10 AM

  • J 0491_J 0226_12152017_033719.mp4

Date
12/15/2017
W/O
0624519
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00057
PipeID
P24756
Time
3:10 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0703
Sewer Name
J JOINT OUTFALL J - UNIT 1E
City
PALO VERDES
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
47
Purpose
Capital Improvement Program Assesment
Project
20171215MDM_JOINT_OUTFALL_J_UNIT_1E
Material
PEP
Shape
Circular
Height
30 in.
Upstream MH
J 0491
Downstream MH
J 0226
Dir. of Survey
Downstream
Length Surveyed
11.4 ft.
Total Length
11.4 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole J 0491 to J 0226
MH: J 0491MH: J 0226downstream0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins(ABANDONED MH - 3:15AM0 ft. MWL - Water Level, 10 %of cross sectional area2 ft. MGO - General Observation - 30" PEP2.7 ft. MGO - General Observation - WHITE MATERIAL ON PIPE11.4 ft. AMH - Downstream Manhole, Survey Ends - 3:20AM

Observation photos (3)

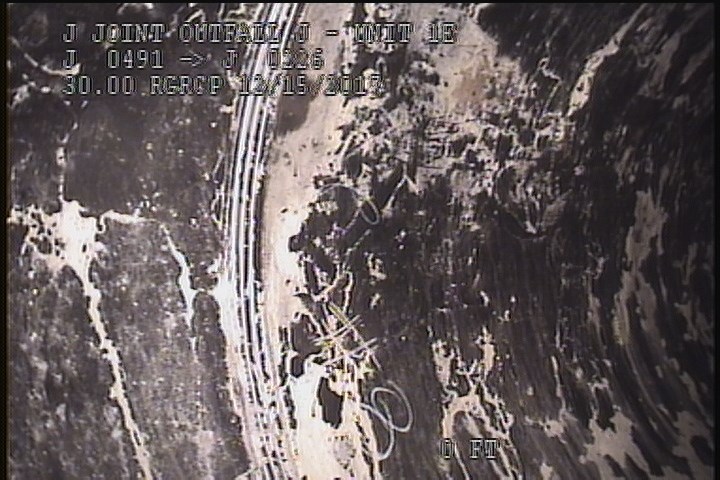

  • Upstream Manhole, Survey Begins(ABANDONED MH - 3:15AM

    0 ft. - Upstream Manhole, Survey Begins(ABANDONED MH - 3:15AM

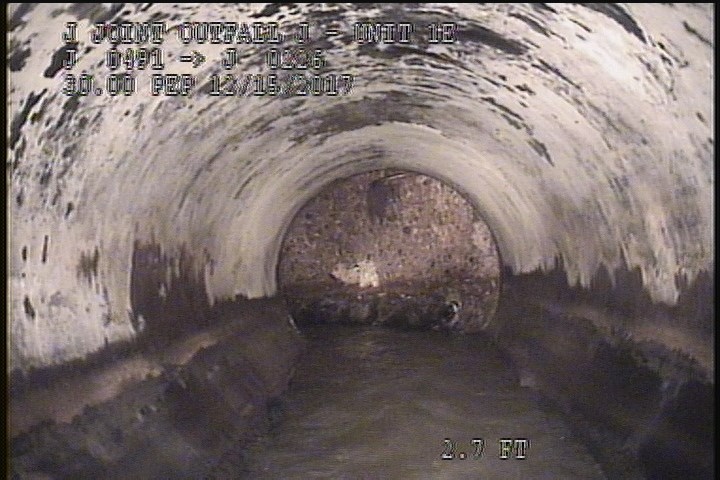

  • General Observation - 30" PEP

    2 ft. - General Observation - 30" PEP

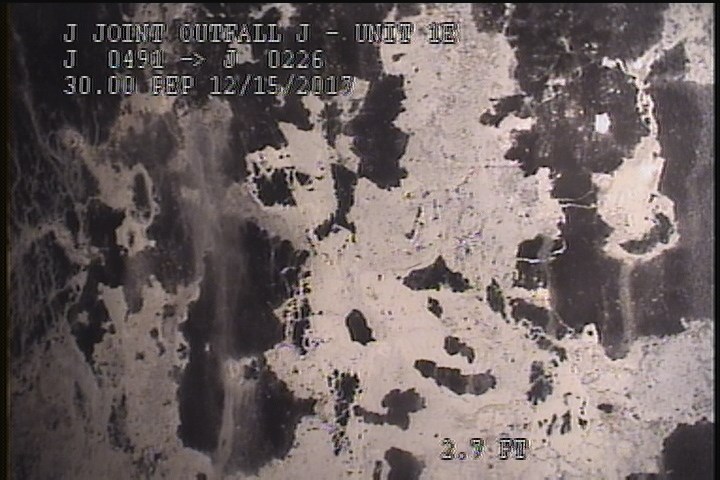

  • General Observation - WHITE MATERIAL ON PIPE

    2.7 ft. - General Observation - WHITE MATERIAL ON PIPE

All inspections of P24756Work order 0624519

Observations (6)

DistanceCodeObservation
11.4AMH3:20AM
2.7MGOWHITE MATERIAL ON PIPE
0MWM—
0AMH3:15AM
0MWL—
2MGO30" PEP

Properties (5)

custom_field_two
3
customer
LACSD
datetime
2017-12-15T03:10:00-08:00
documentation
MARTIN,MANANES
is_lateral_inspection
false
