Wastewater/Activity/PacpInspection/1.0Sep 8, 2017, 06:03 AM
E 0034_E 0033_07092017_230351.mp4
- Date
- 09/07/2017
- W/O
- 654302
- Weather
- Dry
- Operator/Surveyor
- CORTEZ ESTEBAN
- Sewer ID
- Z00028
- PipeID
- P11260
- Time
- 11:03 PM
- Certificate
- U-209-8148
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4918
- Sewer Name
- E JOINT OUTFALL E - UNIT 2
- City
- COMPTON
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 19
- Purpose
- Routine Assessment
- Project
- WO_654302_TV01123_AUG2017
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 48 in.
- Width
- 48 in.
- Upstream MH
- E 0034
- Downstream MH
- E 0033
- Dir. of Survey
- Downstream
- Length Surveyed
- 594.7 ft.
- Total Length
- 594.7 ft.
- Structural Index
- 3
- Structural Quick
- 3W2W
- Structural Rating
- 594
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 594
Observation photos (2)

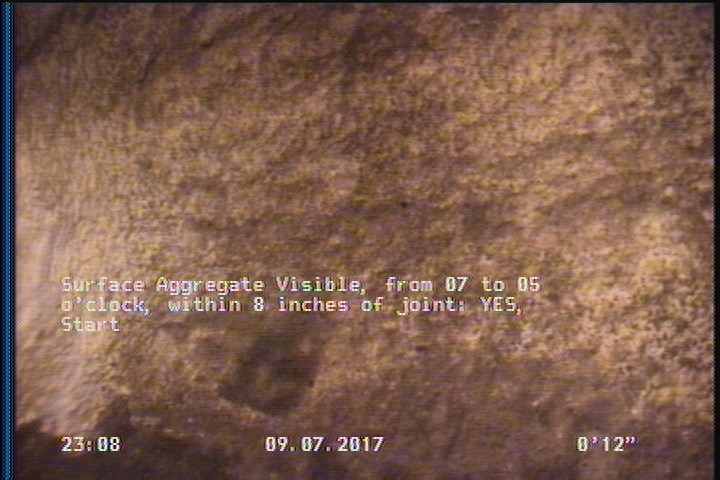

1 ft. - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

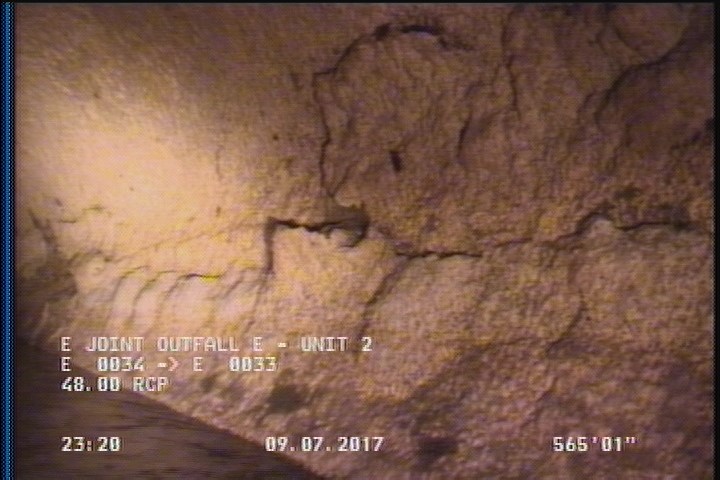

565.1 ft. - Surface Spalling Chemical, from 03 to 05 o'clock, within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 585.4 | SSSC | — |
| 0 | MWM | — |
| 2 | SSS | — |
| 0 | AMH | E 0034 |
| 1 | SAV | — |
| 591.2 | SAV | — |
| 594.7 | AMH | E 0033 |
| 0 | MWL | — |
| 593 | SSS | — |
| 565.1 | SSSC | — |
Properties (6)
- additional_info
- SC345824
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-09-07T23:03:31-07:00
- documentation
- PRO-PIPE
- is_lateral_inspection
- false
