Wastewater/Activity/PacpInspection/1.0Sep 9, 2016, 07:13 AM
20 0659_20 0658_09082016_001405.mp4
- Date
- 09/09/2016
- W/O
- 579971
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z01139
- PipeID
- P25438
- Time
- 12:13 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3654
- Sewer Name
- 20 35TH STREET EAST RELIEF TRUNK
- City
- PALMDALE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 20
- Page No.
- 08
- Purpose
- Routine Assessment
- Project
- WO_579971_TV20048_JULY2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 27 in.
- Width
- 27 in.
- Upstream MH
- 20 0659
- Downstream MH
- 20 0658
- Dir. of Survey
- Downstream
- Length Surveyed
- 564.3 ft.
- Total Length
- 564.3 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2U00
- O&M Rating
- 220
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 220
Observation photos (2)

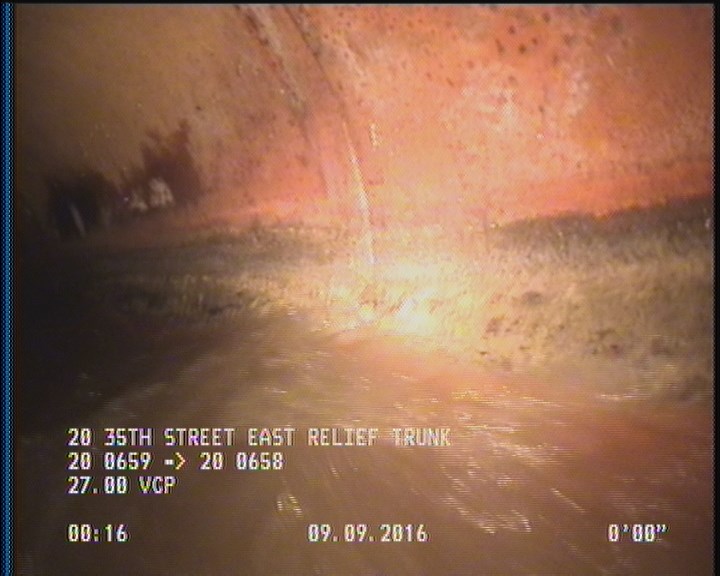

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

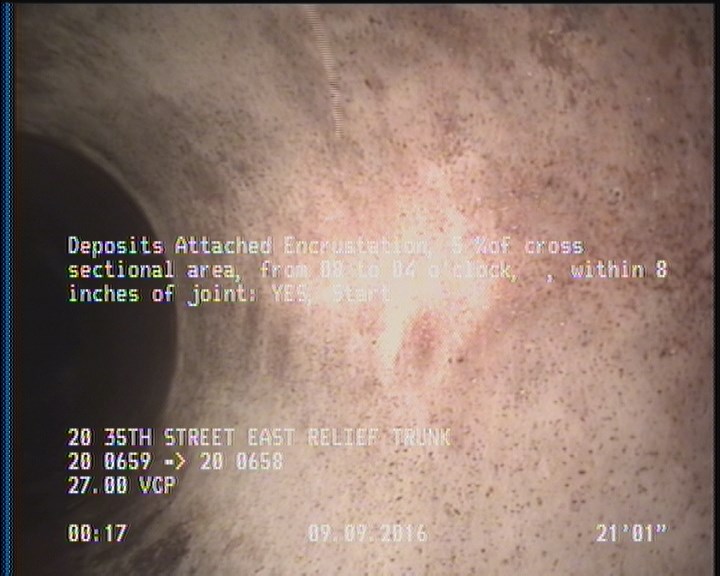

21.1 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 561.8 | DAGS | — |
| 560.1 | DAE | — |
| 0 | AMH | 20 0659 |
| 21.1 | DAE | — |
| 564.3 | AMH | 20 0658 |
| 0 | MWM | — |
| 2 | DAGS | — |
| 564.3 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 0 | MWL | — |
Properties (7)
- additional_info
- SC306095
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-09-09T00:13:58-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
- year_laid
- 38677
