Wastewater/Activity/PacpInspection/1.0Sep 15, 2016, 10:19 AM
20 0672_20 0671_09152016_031205.mp4
- Date
- 09/15/2016
- W/O
- 579971
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z01139
- PipeID
- P25452
- Time
- 3:19 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3759
- Sewer Name
- 20 35TH STREET EAST RELIEF TRUNK
- City
- PALMDALE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 20
- Page No.
- 13
- Purpose
- Routine Assessment
- Project
- WO_579971_TV20048_JULY2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 20 0672
- Downstream MH
- 20 0671
- Dir. of Survey
- Downstream
- Length Surveyed
- 387.2 ft.
- Total Length
- 387.2 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2N00
- O&M Rating
- 154
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 154
Observation photos (1)

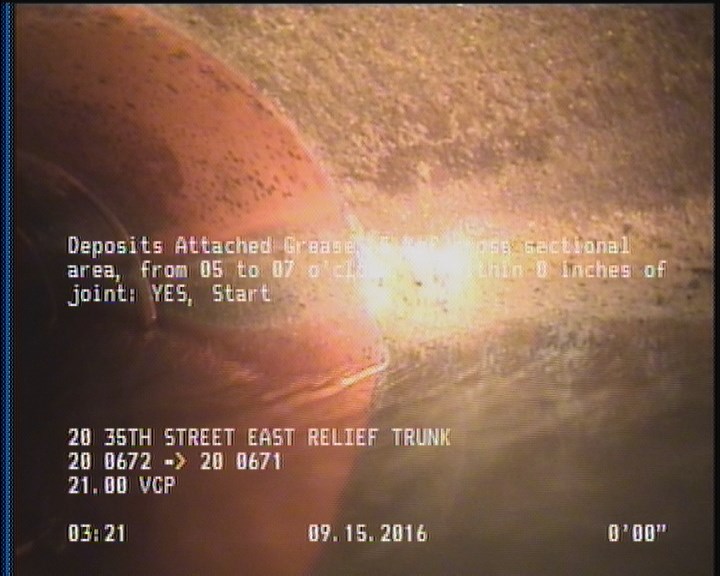

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 2 | DAGS | — |
| 339.4 | TFA | — |
| 387.2 | AMH | 20 0671 |
| 0 | MWM | — |
| 260.5 | TBA | — |
| 385.2 | DAGS | — |
| 0 | AMH | 20 0672 |
| 0 | MWL | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
Properties (7)
- additional_info
- SC306100
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-09-15T03:19:37-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
- year_laid
- 38677
