Wastewater/Activity/PacpInspection/1.0Apr 26, 2016, 09:02 AM
21 1010_21 1009_20160426_031506.mp4
- Date
- 04/26/2016
- W/O
- 557418
- Weather
- Dry
- Operator/Surveyor
- N.ZAHREDDINE
- Sewer ID
- Z00784
- PipeID
- P16110
- Time
- 2:02 AM
- Certificate
- U-109-7948
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K 3191
- Sewer Name
- 21 SAN ANTONIO TRUNK
- City
- POMONA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 06
- Purpose
- Routine Assessment
- Project
- WO_557418_TV21023_APRIL2016
- Sewer Type
- GRAVITY
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Upstream MH
- 21 1010
- Downstream MH
- 21 1009
- Dir. of Survey
- Downstream
- Length Surveyed
- 195.2 ft.
- Total Length
- 195.2 ft.
- Structural Index
- 3
- Structural Quick
- 4133
- Structural Rating
- 13
- O&M Index
- 1
- O&M Quick
- 1200
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 15
Observation photos (4)

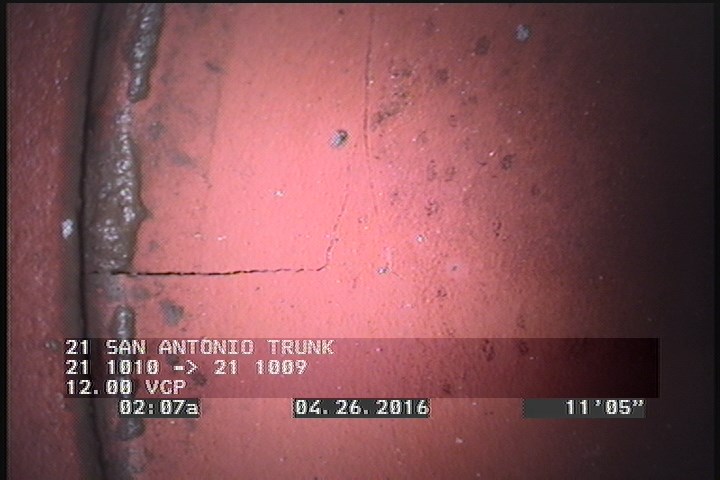

11.4 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

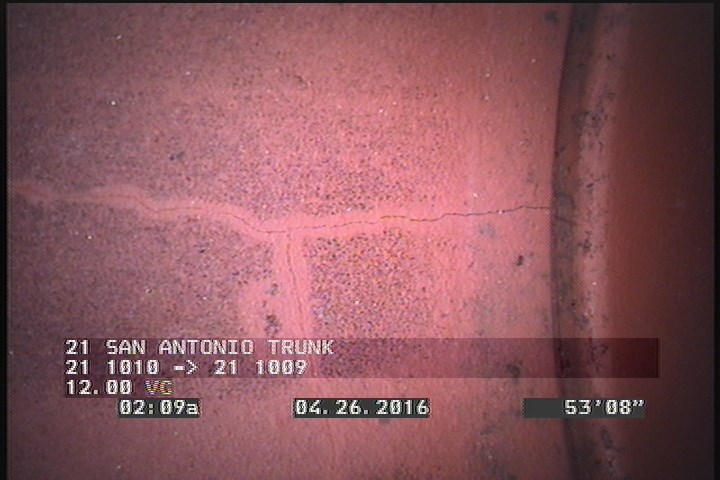

53.7 ft. - Crack Multiple, from 12 to 02 o'clock, within 8 inches of joint: YES

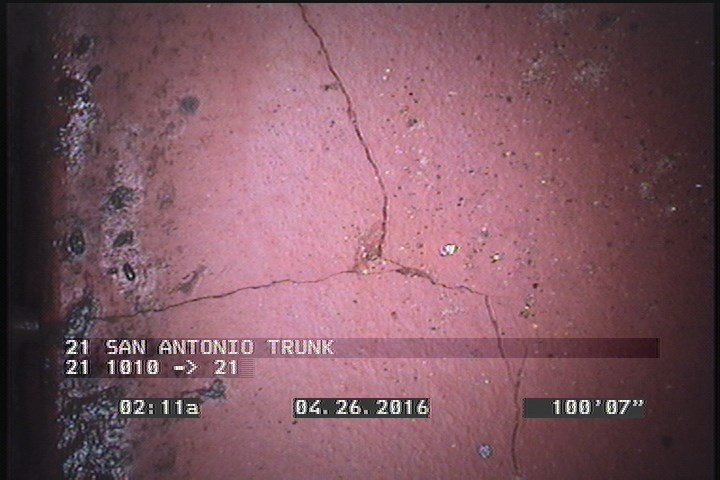

100.6 ft. - Crack Multiple, from 07 to 11 o'clock, within 8 inches of joint: YES

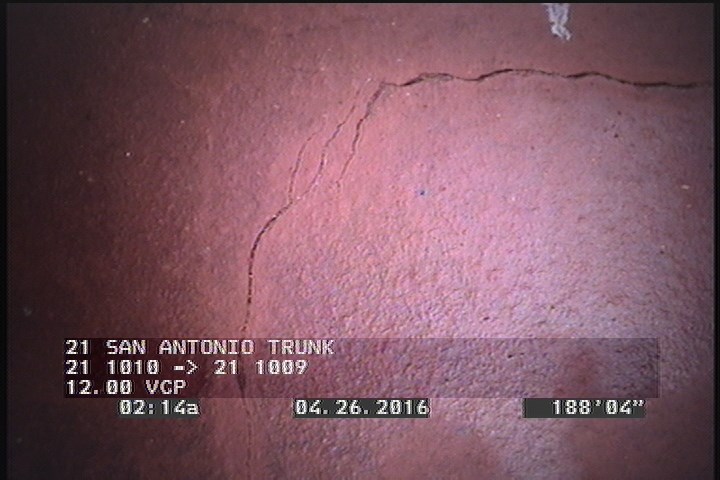

188.3 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES
Observations (16)
| Distance | Code | Observation |
|---|---|---|
| 98.8 | TFC | — |
| 100.6 | CM | — |
| 188.3 | FM | — |
| 20.8 | TFC | — |
| 0 | VC | — |
| 11.4 | CM | — |
| 145.8 | TFC | — |
| 195.2 | VC | — |
| 195.2 | AMH | 21 1009 |
| 47.6 | TFC | — |
| 0 | MGO | CONNECTION AT THE MH 3 OC'LOCK |
| 0 | MWL | — |
| 0 | MWM | — |
| 195.2 | MGO | CONNECTION AT THE MH 3 OC'LOCK |
| 53.7 | CM | — |
| 0 | AMH | 21 1010 |
Properties (6)
- additional_info
- SC226239
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-04-26T02:02:34-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
