Wastewater/Activity/PacpInspection/1.0Apr 20, 2016, 10:02 AM
21 1038_21 1037_20160420_042348.mp4
- Date
- 04/20/2016
- W/O
- 557418
- Weather
- Dry
- Operator/Surveyor
- N.ZAHREDDINE
- Sewer ID
- Z00784
- PipeID
- P16142
- Time
- 3:02 AM
- Certificate
- U-109-7948
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K 3186
- Sewer Name
- 21 SAN ANTONIO TRUNK
- City
- POMONA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 03
- Purpose
- Routine Assessment
- Project
- WO_557418_TV21023_APRIL2016
- Sewer Type
- GRAVITY
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Upstream MH
- 21 1038
- Downstream MH
- 21 1037
- Dir. of Survey
- Downstream
- Length Surveyed
- 309.1 ft.
- Total Length
- 309.1 ft.
- Structural Index
- 3
- Structural Quick
- 4132
- Structural Rating
- 10
- O&M Index
- 3
- O&M Quick
- 4111
- O&M Rating
- 5
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 15
Observation photos (4)

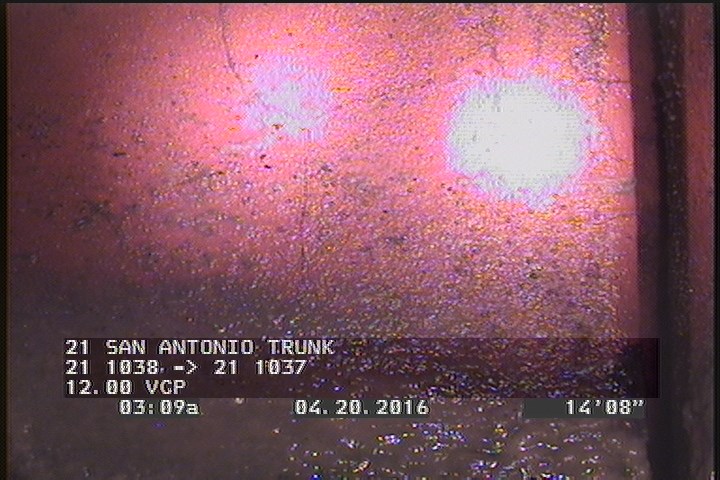

14.7 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

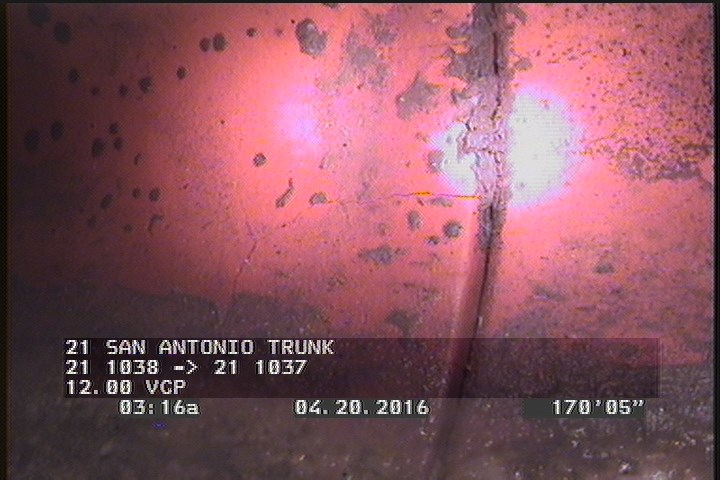

170.4 ft. - Crack Multiple, from 02 to 05 o'clock, within 8 inches of joint: YES

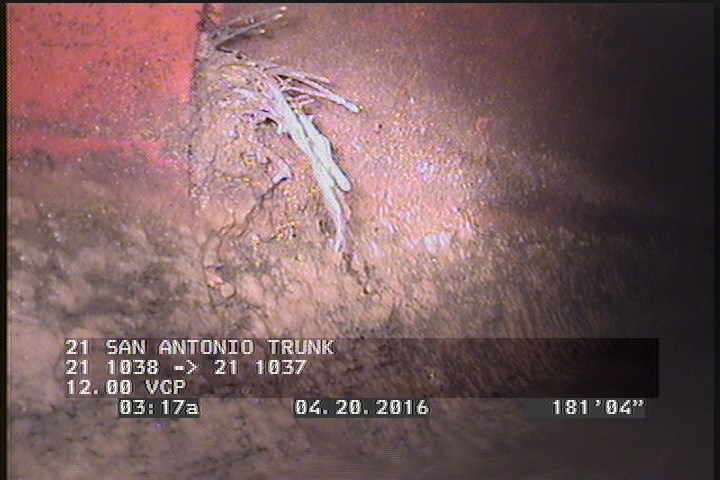

181.4 ft. - Roots Fine Joint, from 03 to 09 o'clock, within 8 inches of joint: YES

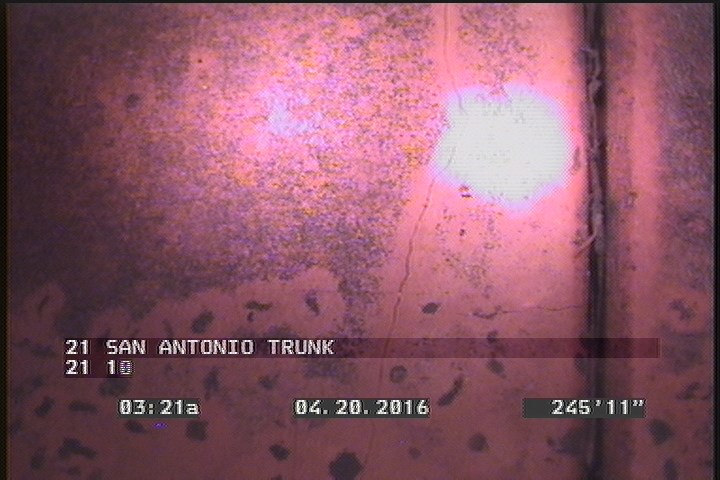

245.9 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES
Observations (19)
| Distance | Code | Observation |
|---|---|---|
| 245.9 | CM | — |
| 205.4 | TFC | — |
| 14.7 | FM | — |
| 55.9 | TFC | — |
| 0 | AMH | 21 1038 |
| 232.3 | TFC | — |
| 182.8 | TFC | — |
| 0 | MGO | CONNECTION AT THE MH 9 OC'LOCK |
| 0 | MWM | — |
| 105.7 | TFC | — |
| 309.1 | AMH | 21 1037 |
| 159.6 | TFC | — |
| 286.1 | TF | — |
| 132.9 | TF | — |
| 170.4 | CM | — |
| 259.3 | TFC | — |
| 0 | MWL | — |
| 181.4 | RFJ | — |
| 82.8 | TFC | — |
Properties (6)
- additional_info
- SC226234
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-04-20T03:02:52-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
