Date
11/01/2017
W/O
0635425
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00021
PipeID
P00568
Time
3:54 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6858
Sewer Name
08 VICTORIA STREET TRUNK
City
CARSON
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
04
Purpose
Capital Improvement Program Assesment
Project
20171101MDM_VICTORIA_STREET_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
08 0506
Downstream MH
08 0507
Dir. of Survey
Upstream
Length Surveyed
325 ft.
Total Length
325 ft.
Structural Index
3
Structural Quick
3B2B
Structural Rating
65
O&M Index
5
O&M Quick
5141
O&M Rating
9
Overall Index
3
Overall Quick
—
Overall Rating
74
Pipe schematic from manhole 08 0506 to 08 0507
MH: 08 0506MH: 08 0507upstream0 ft. AMH - Downstream Manhole, Survey Ends - 6:00AM23.9 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - H57.2 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - H59.2 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: YES, 6" - STUB60.6 ft. FL - Fracture Longitudinal, at 01 o'clock, within 8 inches of joint: YES - H75.5 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - SL106.8 ft. FL - Fracture Longitudinal, at 11 o'clock, within 8 inches of joint: YES - H122 ft. FS - Fracture Spiral, from 11 to 02 o'clock, within 8 inches of joint: YES, Finish - SLIGHT126 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - SLIGHT126 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - SLIGHT129 ft. FC - Fracture Circumferential, from 10 to 01 o'clock, within 8 inches of joint: YES - H129.8 ft. FS - Fracture Spiral, from 11 to 02 o'clock, within 8 inches of joint: YES, Start - SLIGHT158.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - STUB161.2 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: YES, 6" - STUB163.9 ft. FC - Fracture Circumferential, from 01 to 03 o'clock, within 8 inches of joint: YES - H187.8 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - H198.6 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - H204.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - STUB208.2 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: YES, 6" - STUB215.3 ft. FC - Fracture Circumferential, from 09 to 03 o'clock, within 8 inches of joint: YES - SL225 ft. FC - Fracture Circumferential, from 09 to 03 o'clock, within 8 inches of joint: YES - SLIGHT227.8 ft. MGO - General Observation - THIN GREASE LAYER ON PIPE THROUGHOUT REACH227.8 ft. FS - Fracture Spiral, from 11 to 01 o'clock, within 8 inches of joint: YES, Finish - SLIGHT244.9 ft. MWM - Water Mark, 80 %of cross sectional area256.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - STUB259.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - STUB270.6 ft. FS - Fracture Spiral, from 11 to 01 o'clock, within 8 inches of joint: YES, Start - SLIGHT281.5 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - H307.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - STUB309.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - STUB312.2 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - HAIRLINE325 ft. AMH - Upstream Manhole, Survey Begins - 4:00AM325 ft. MWL - Water Level, 10 %of cross sectional area325 ft. MWM - Water Mark, 50 %of cross sectional area325 ft. MGO - General Observation - MH CONN 9:00 ACTIVE

Observation photos (3)

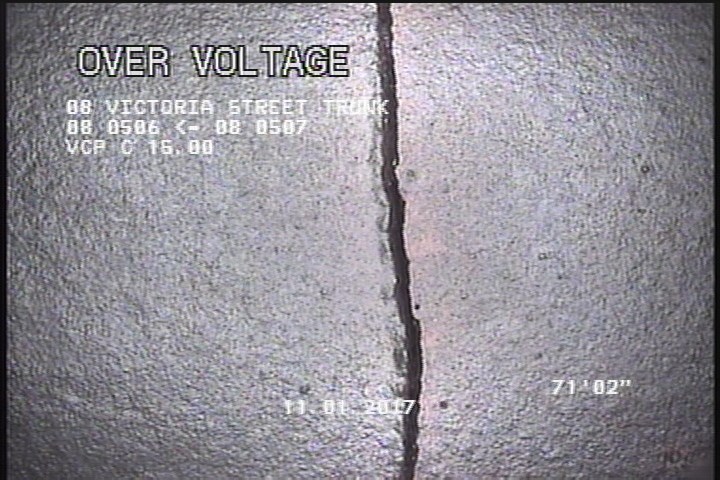

  • Fracture Spiral, from 11 to 01 o'clock, within 8 inches of joint: YES, Start - SLIGHT

    54.4 ft. - Fracture Spiral, from 11 to 01 o'clock, within 8 inches of joint: YES, Start - SLIGHT

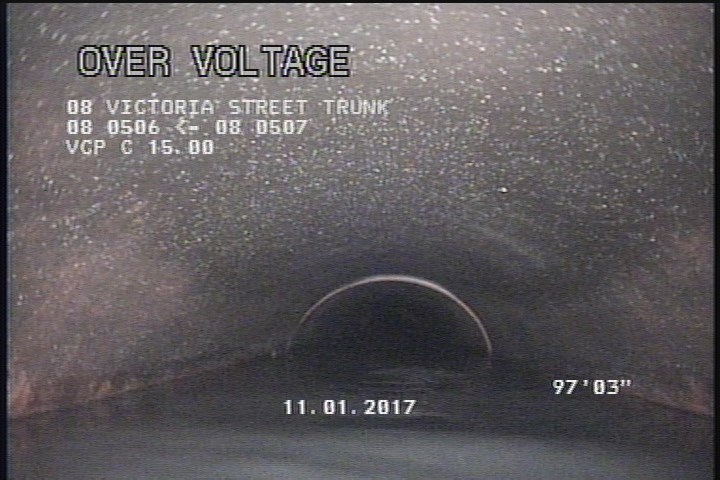

  • General Observation - THIN GREASE LAYER ON PIPE THROUGHOUT REACH

    97.2 ft. - General Observation - THIN GREASE LAYER ON PIPE THROUGHOUT REACH

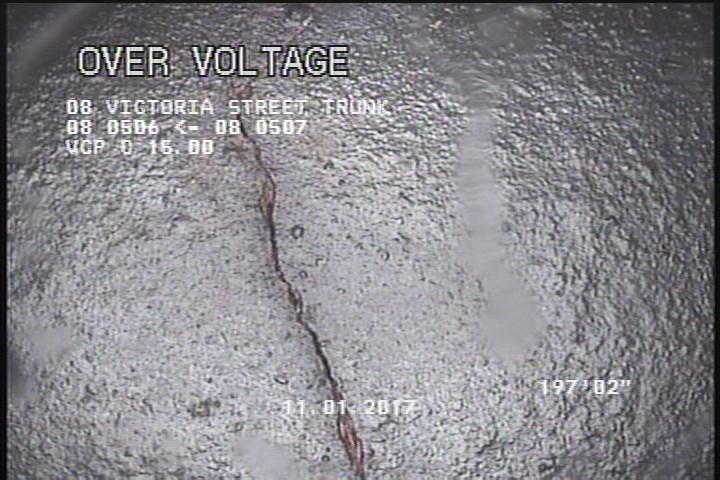

  • Fracture Spiral, from 11 to 02 o'clock, within 8 inches of joint: YES, Start - SLIGHT

    195.2 ft. - Fracture Spiral, from 11 to 02 o'clock, within 8 inches of joint: YES, Start - SLIGHT

All inspections of P00568Work order 0635425

Observations (35)

DistanceCodeObservation
15.5TFCSTUB
97.2MGOTHIN GREASE LAYER ON PIPE THROUGHOUT REACH
0AMH4:00AM
54.4FSSLIGHT
161.1FCH
126.4FCH
109.7FCSL
301.1FCH
97.2FSSLIGHT
0MWL—
65.3TFCSTUB
195.2FSSLIGHT
265.8TFCSTUB
137.2FCH
43.5FCH
199FCSLIGHT
249.5FCSL
264.4FLH
120.3TFCSTUB
163.8TFCSTUB
196FCH
0MWM—
80.1MWM—
199FCSLIGHT
218.2FLH
267.8FCH
116.8TFCSTUB
325AMH6:00AM
100FCSLIGHT
166.5TFCSTUB
68.8TFCSTUB
12.8FCHAIRLINE
0MGOMH CONN 9:00 ACTIVE
17.6TFCSTUB
203FSSLIGHT

Properties (6)

custom_field_three
SPRIAL FRACTURE SLIGHT JOINT TO JOINT LONGER
custom_field_two
2
customer
LACSD
datetime
2017-11-01T03:54:26-07:00
documentation
MARTIN,MANANES,REVELES
is_lateral_inspection
false
