Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 30, 2017, 07:45 PM

  • 08 0505_08 0504_10302017_135420.mp4

Date
10/30/2017
W/O
PENDING
Weather
Dry
Operator/Surveyor
SANTAIGO OBREGON
Sewer ID
Z00021
PipeID
P00564
Time
12:45 PM
Certificate
U-1014-06022541
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7551
Sewer Name
08 VICTORIA STREET TRUNK
City
CARSON
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
04
Purpose
Routine Assessment
Project
20171030SHO_VICTORIA_STREET_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
08 0505
Downstream MH
08 0504
Dir. of Survey
Downstream
Length Surveyed
154.6 ft.
Total Length
154.6 ft.
Structural Index
4
Structural Quick
5131
Structural Rating
8
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
3
Overall Quick
—
Overall Rating
10
Pipe schematic from manhole 08 0505 to 08 0504
MH: 08 0505MH: 08 0504downstream0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01550 ft. MWM - Water Mark, 25 %of cross sectional area8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"12.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"99.5 ft. RPL - Repair Localized Liner, within 8 inches of joint: YES, Start - START OF LINER108.4 ft. RPL - Repair Localized Liner, within 8 inches of joint: YES, Finish - END OF LINER111 ft. TFD - Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: NO, 6"122 ft. B - Broken, from 08 to 05 o'clock, within 8 inches of joint: YES - SEVERE BREAK127.6 ft. FS - Fracture Spiral, from 08 to 09 o'clock, within 8 inches of joint: YES154.5 ft. MGO - General Observation - CAPPED CONNECTIONS IN THE MH @ 3 & 9154.6 ft. AMH - Downstream Manhole, Survey Ends - 0205

Observation photos (3)

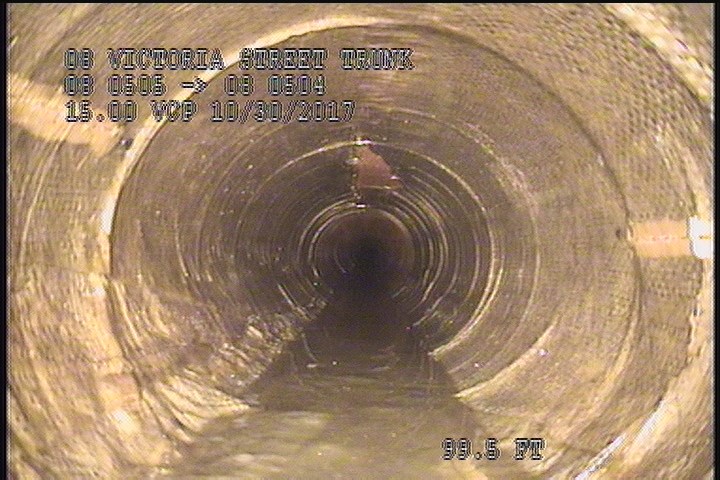

  • Repair Localized Liner, within 8 inches of joint: YES, Start - START OF LINER

    99.5 ft. - Repair Localized Liner, within 8 inches of joint: YES, Start - START OF LINER

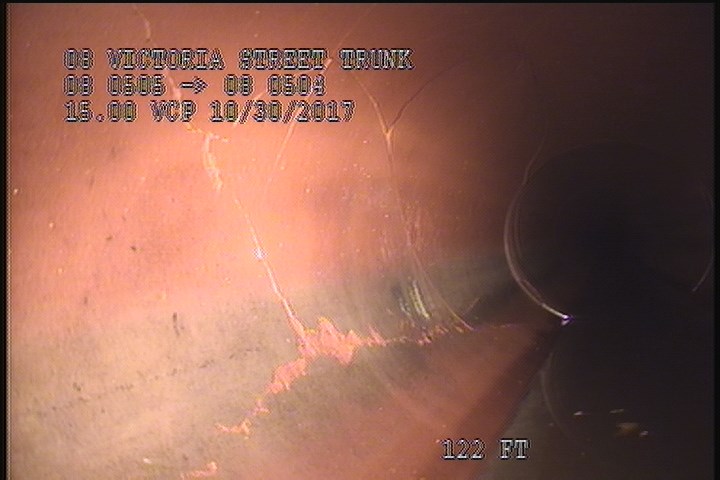

  • Broken, from 08 to 05 o'clock, within 8 inches of joint: YES - SEVERE BREAK

    122 ft. - Broken, from 08 to 05 o'clock, within 8 inches of joint: YES - SEVERE BREAK

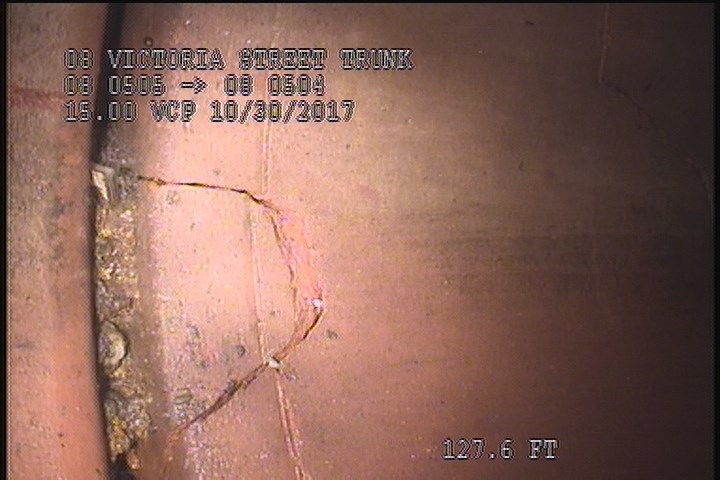

  • Fracture Spiral, from 08 to 09 o'clock, within 8 inches of joint: YES

    127.6 ft. - Fracture Spiral, from 08 to 09 o'clock, within 8 inches of joint: YES

All inspections of P00564Work order PENDING

Observations (12)

DistanceCodeObservation
99.5RPLSTART OF LINER
12.4TFC—
0MWL—
127.6FS—
0AMH0155
122BSEVERE BREAK
8TFC—
154.6AMH0205
111TFD—
0MWM—
154.5MGOCAPPED CONNECTIONS IN THE MH @ 3 & 9
108.4RPLEND OF LINER

Properties (6)

custom_field_three
SEVERE BREAK IN PIPE
custom_field_two
2
customer
LACSD
datetime
2017-10-30T12:45:25-07:00
documentation
OBREGON, IGNACIO, FRANKLIN, BRAR
is_lateral_inspection
false
